HP Visualize J2240 Service Handbook page 135

J class workstation
Hide thumbs Also See for Visualize J2240:
Table of Contents

Advertisement

Disconnect
fan cable from
system board.

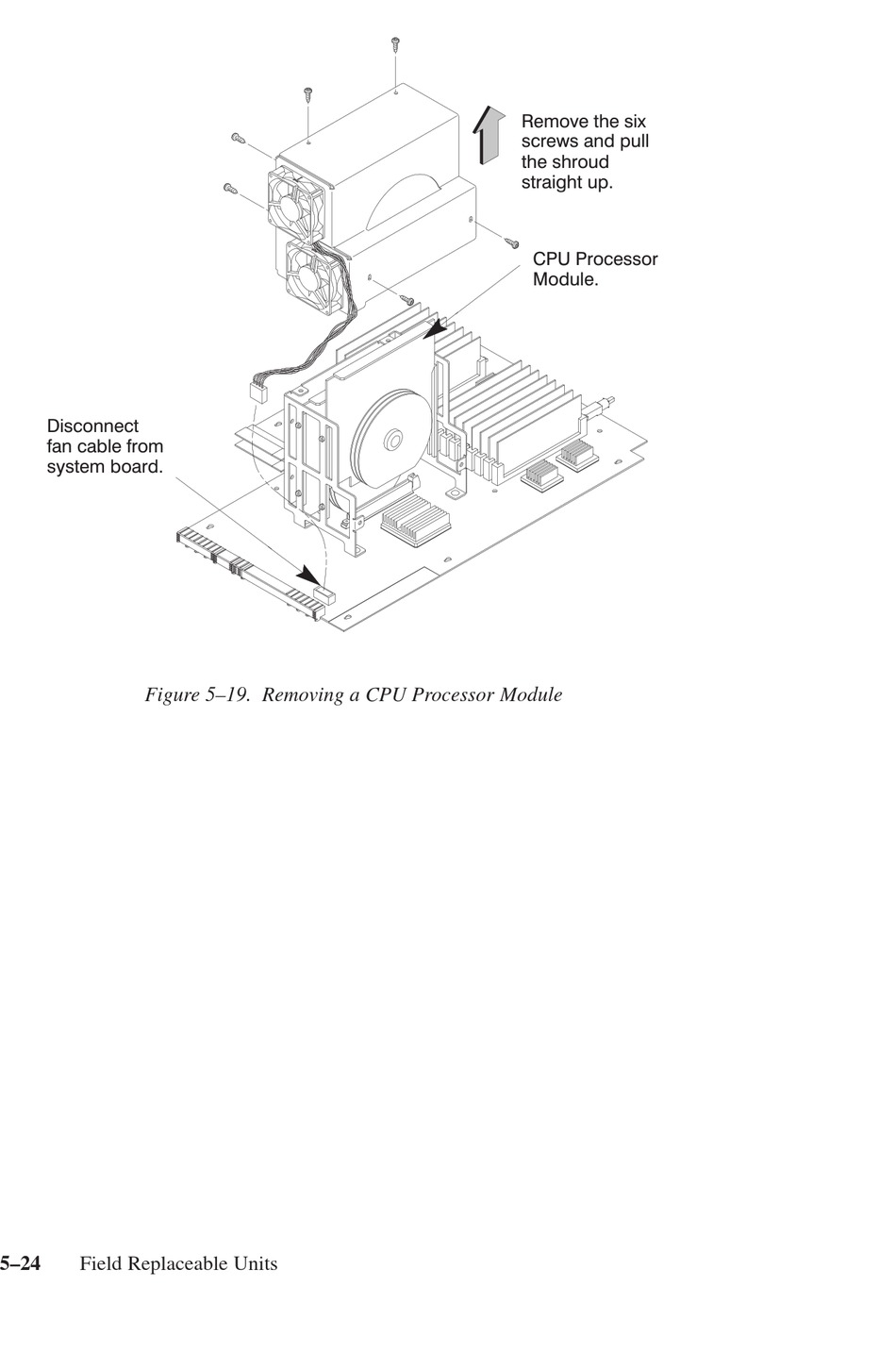

Figure 5–19. Removing a CPU Processor Module
5–24
Field Replaceable Units
Remove the six
screws and pull
the shroud
straight up.
CPU Processor
Module.
