Chapter 6 Diagrams; System Power; Power Distribution Diagram - HP Visualize J2240 Service Handbook

Diagrams
This chapter provides functional information about the system.

System Power

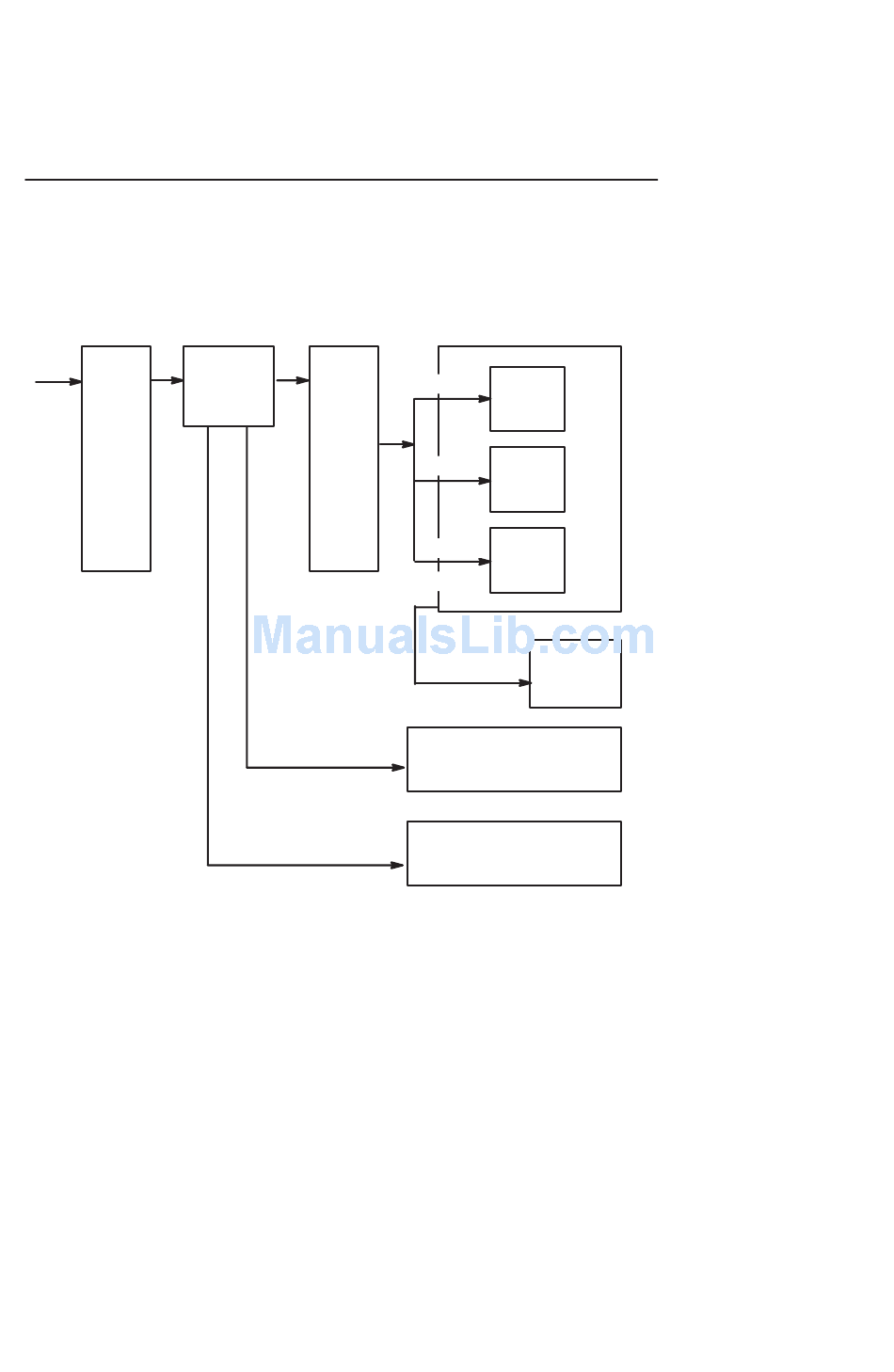

Figure 6–1 shows the system power distribution.
Power
Supply Backplane
AC
Input
Figure 6–1. Power Distribution Diagram
System System Board
Connector
All
+12, –12
+3.3
+4.4
+5.0
System
Board
5v/4.4v/3.3v
CPU
5v
Memory
5v/12v/–12v
Logic
3.3
5v/12v/3.3v/–12v
EISA
Disk Tray
5v +12, –12
I/O PCB
5v +12, –12
