Operation Mode
Switches
ON
1 2 3 4 5 6 7 8
Compression Disabled,
No Host Control
ON
1 2 3 4 5 6 7 8
Compression Disabled, Host
Can Control Compression

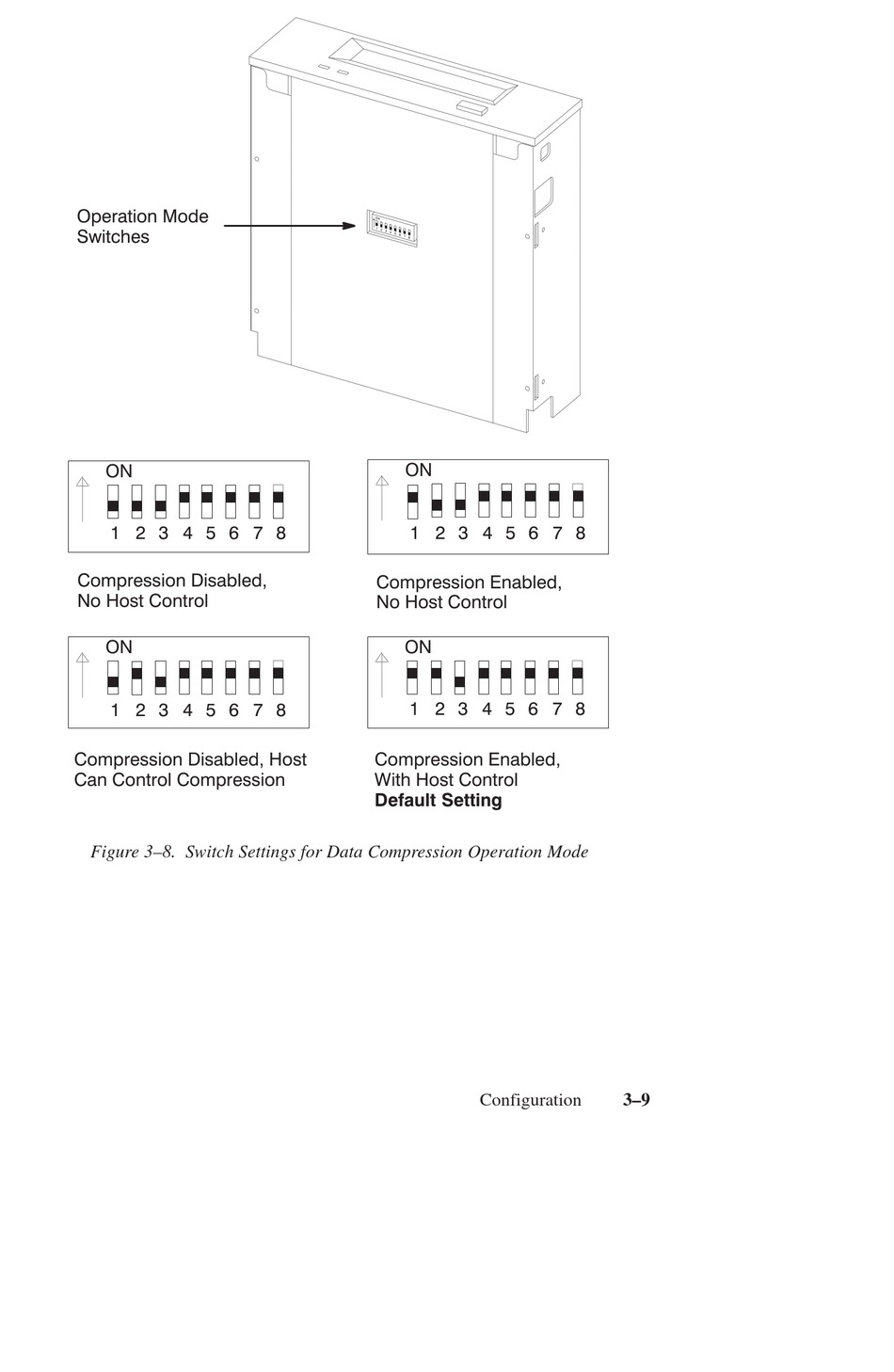

Figure 3–8. Switch Settings for Data Compression Operation Mode
ON
1 2 3 4 5 6 7 8
Compression Enabled,
No Host Control
ON
1 2 3 4 5 6 7 8
Compression Enabled,
With Host Control
Default Setting
Configuration
3–9
