Power Supply

Perform the following steps to remove and replace the power supply assembly:
1. Disconnect the AC power cable from the rear of the system.
2. Open the system unit.
3. Unscrew the screw in the center of the power supply extractor and lift the extrac-
tor up. The power supply assembly slides partway out, disconnecting from the
internal connectors. See Figure 5–53.

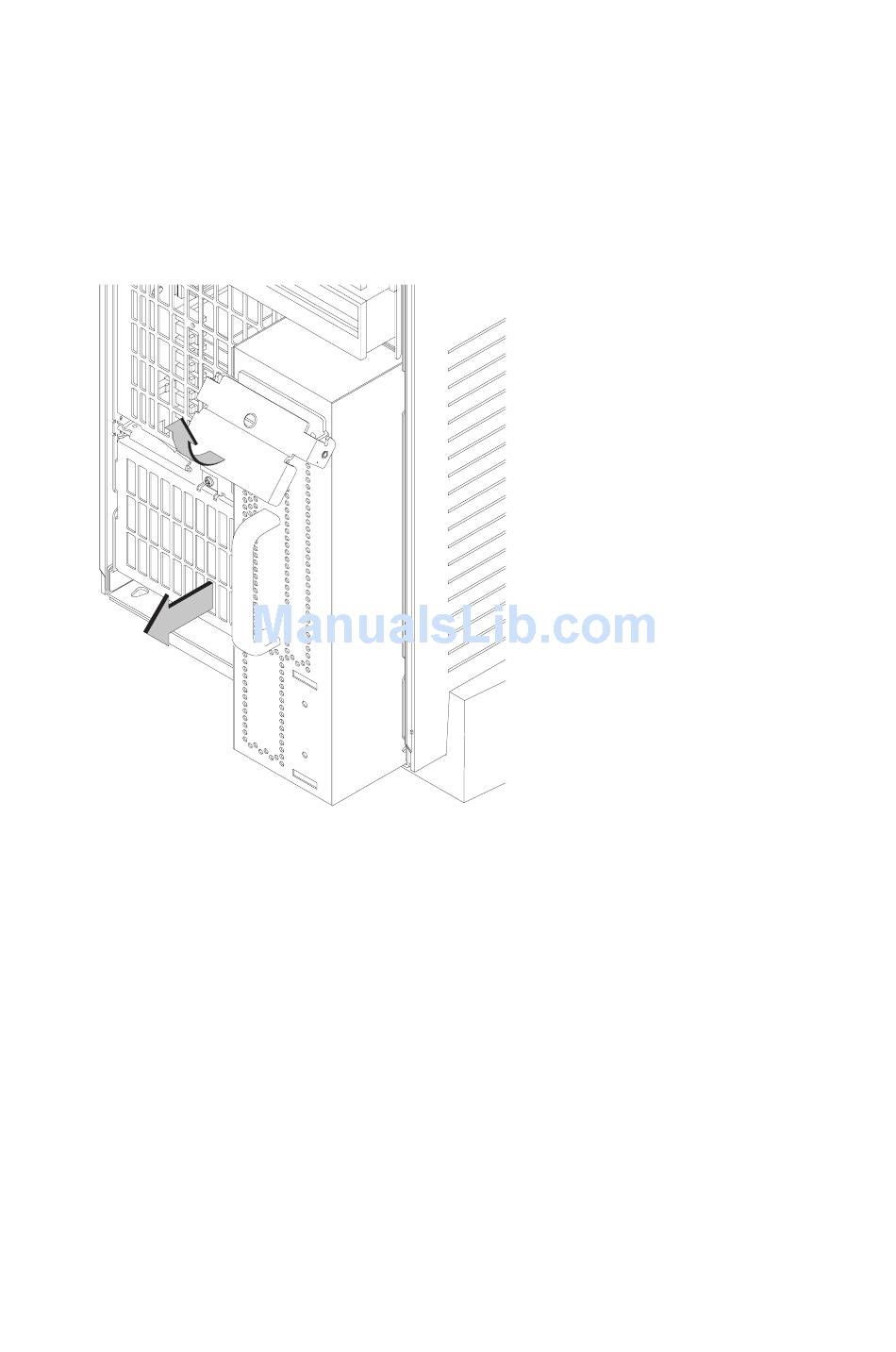

Figure 5–53. Removing the Power Supply
4. Grasp the power supply assembly handle and pull the power supply assembly
straight out.
5. Remove the extractor handle from the old power supply and install it on the new
power supply.
5–58 Field Replaceable Units
