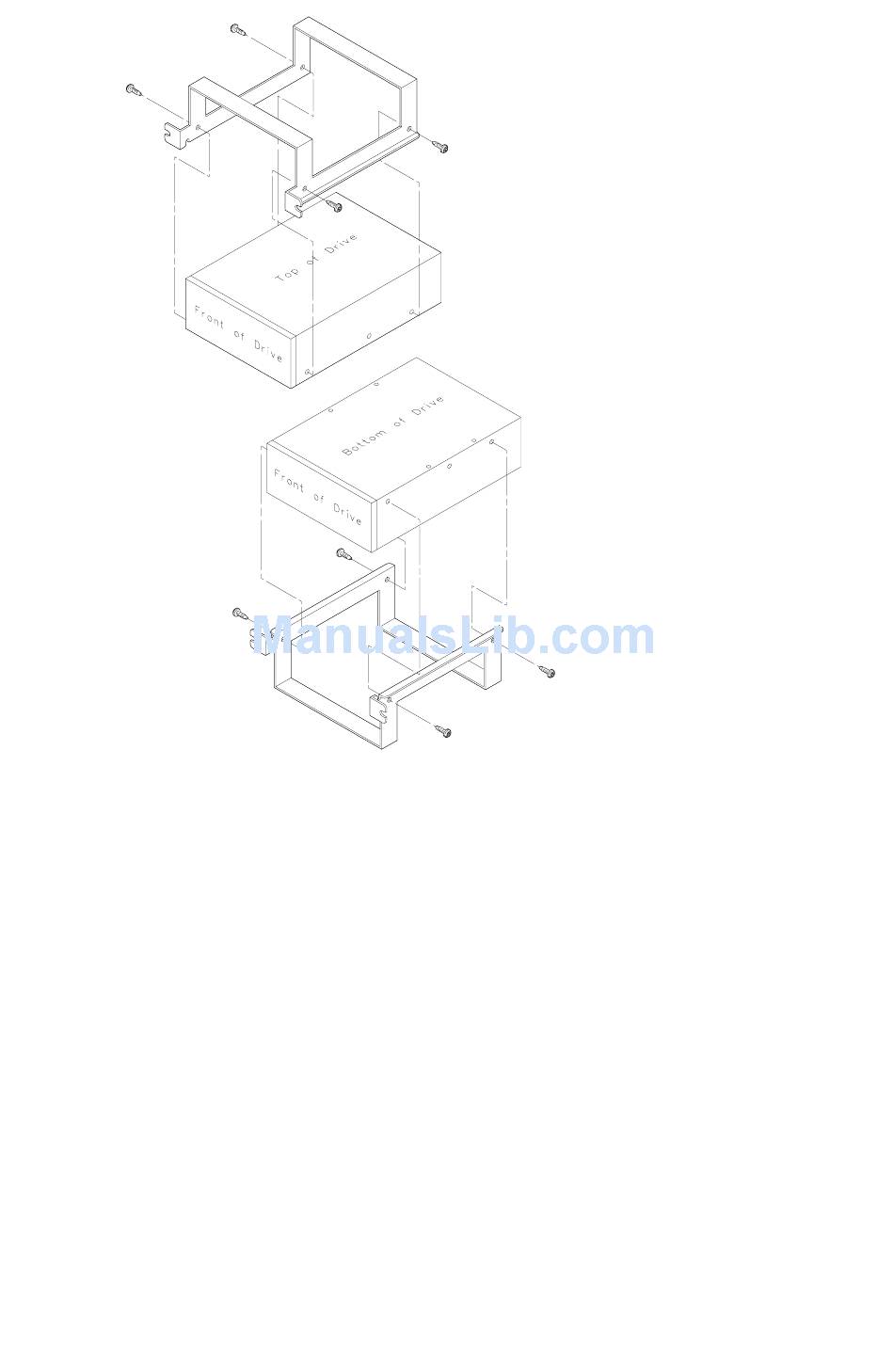

Figure 5–50. Replacing Hard Drive Mounting Bracket and Drive Orientation
2. Figure 5–51 shows two drives and their orientation in the Storage Assembly.
The drives are installed with the bottom of each drive (the part of the drive that
shows the printed circuits) facing towards the middle.
Field Replaceable Units
5–55
