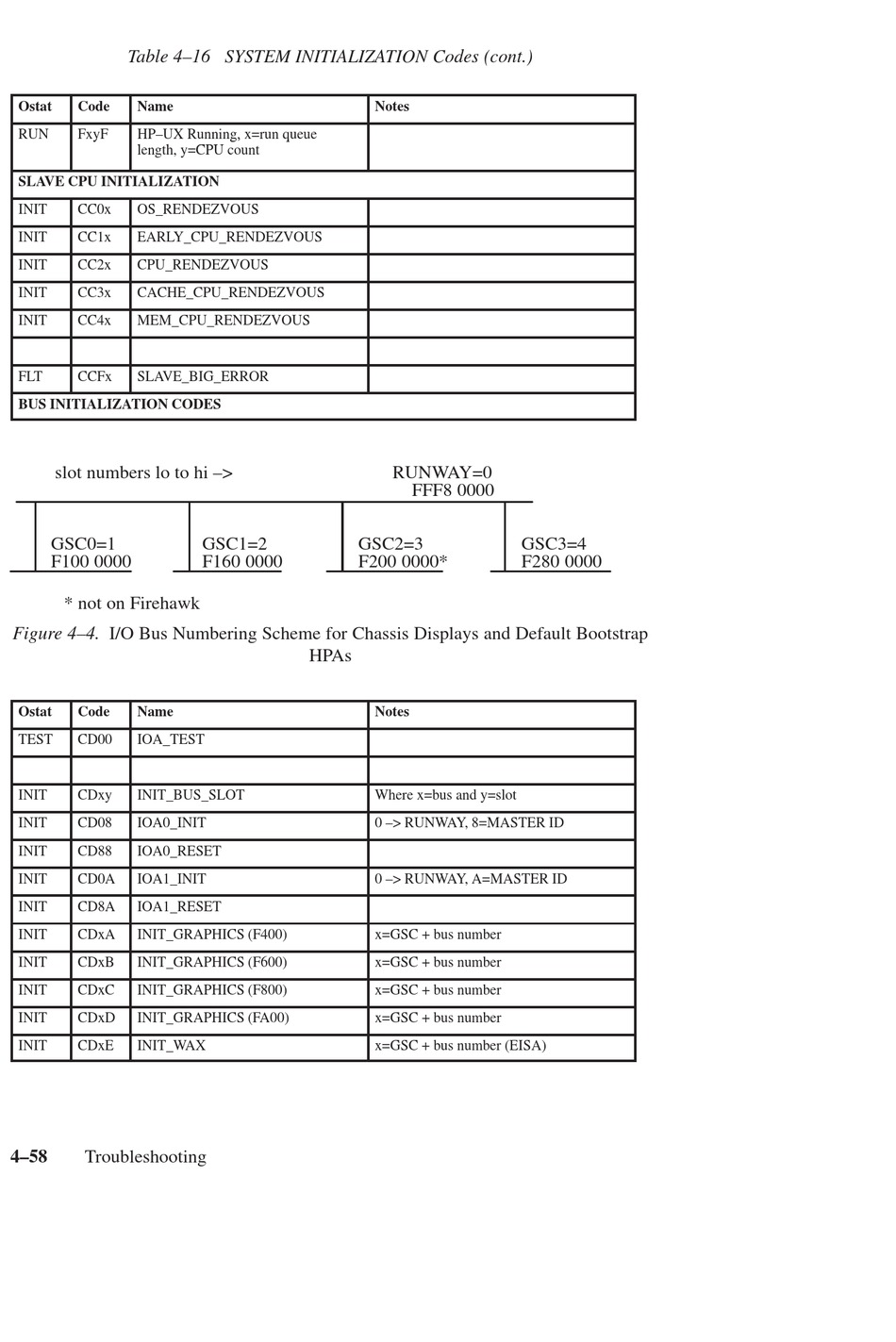

Table 4–16 SYSTEM INITIALIZATION Codes (cont.)
Ostat Code Name
RUN UN FxyF y HP–UX Running, x=run queue U
length, y=CPU count l h
SLAVE CPU INITIALIZATION
INIT CC0x OS_RENDEZVOUS
INIT CC1x EARLY_CPU_RENDEZVOUS
INIT CC2x CPU_RENDEZVOUS
INIT CC3x CACHE_CPU_RENDEZVOUS
INIT CC4x MEM_CPU_RENDEZVOUS
FLT CCFx SLAVE_BIG_ERROR
BUS INITIALIZATION CODES
slot numbers lo to hi –>
GSC0=1
F100 0000
* not on Firehawk
Figure 4–4. I/O Bus Numbering Scheme for Chassis Displays and Default Bootstrap
Ostat Code Name
TEST CD00 IOA_TEST
INIT CDxy INIT_BUS_SLOT
INIT CD08 IOA0_INIT
INIT CD88 IOA0_RESET
INIT CD0A IOA1_INIT
INIT CD8A IOA1_RESET
INIT CDxA INIT_GRAPHICS (F400)
INIT CDxB INIT_GRAPHICS (F600)
INIT CDxC INIT_GRAPHICS (F800)
INIT CDxD INIT_GRAPHICS (FA00)
INIT CDxE INIT_WAX
4–58 Troubleshooting
Notes
u g, u queue
CPU
GSC1=2 GSC2=3
F160 0000 F200 0000*
HPAs
Notes
Where x=bus and y=slot
0 –> RUNWAY, 8=MASTER ID
0 –> RUNWAY, A=MASTER ID
x=GSC + bus number
x=GSC + bus number
x=GSC + bus number
x=GSC + bus number
x=GSC + bus number (EISA)
RUNWAY=0
FFF8 0000
GSC3=4
F280 0000
