Functional Description
Functional Description
The JTAG board provides three different connectors for the ASSET hardware, flash
programming and the MVME2502 JTAG connector. The board is equipped with TTL buffers
to help improve the signal quality as it traverses over the wires.

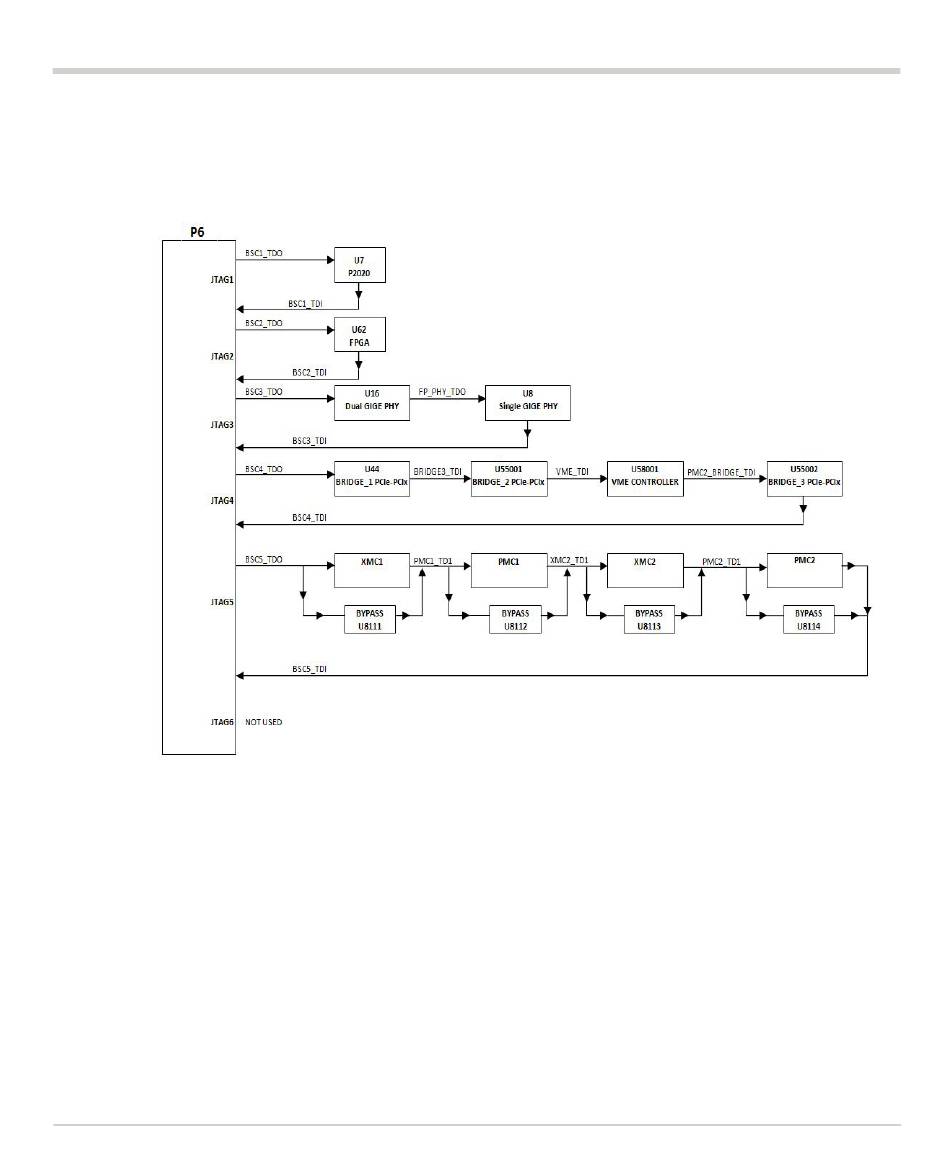

Figure 4-4 JTAG Chain Diagram

4.20.3

Custom Debugging

Custom debugging makes use of the common on-chip processor. Refer to
Common On-
for details.
Chip Processor (COP) on page 78
94 MVME2502 Installation and Use (6806800R96L)
