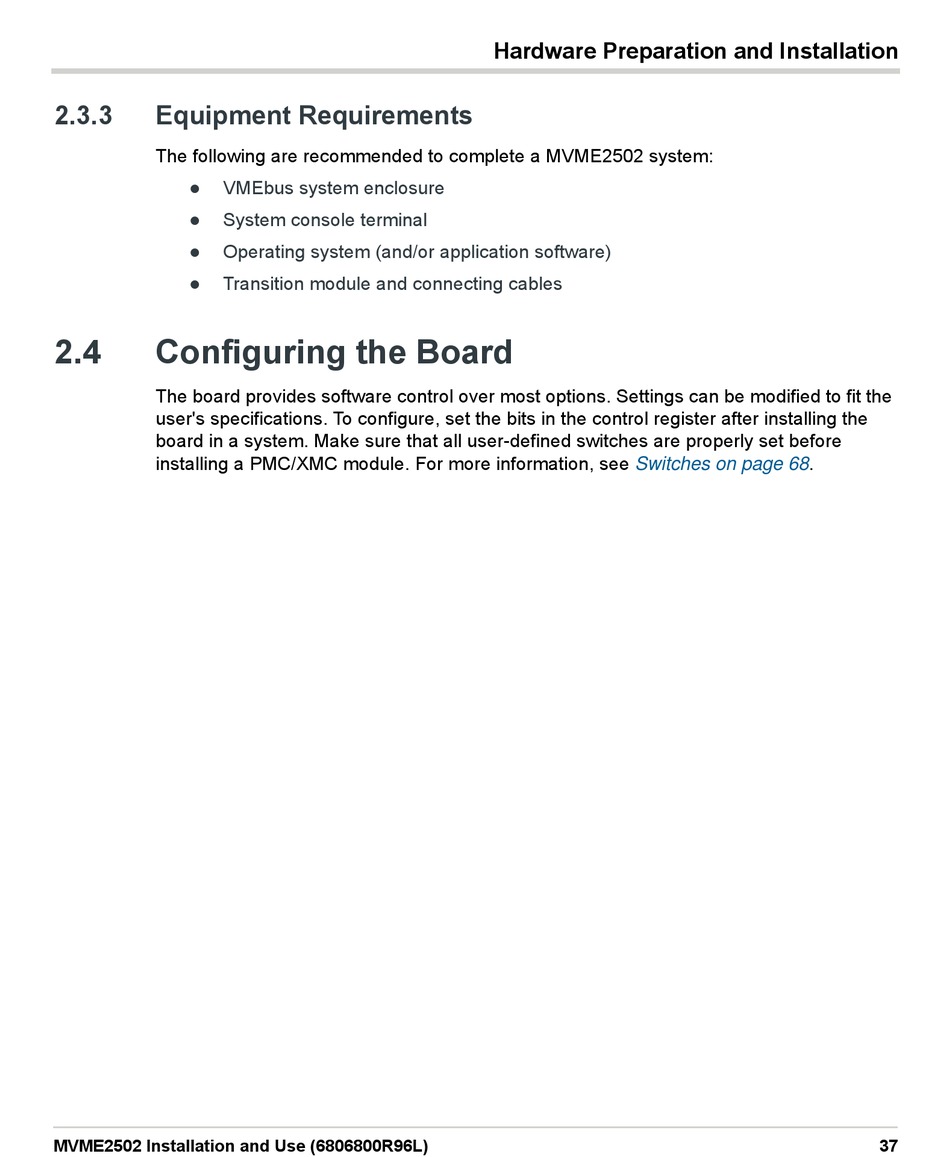

2.3.3
Equipment Requirements
The following are recommended to complete a MVME2502 system:
VMEbus system enclosure
System console terminal
Operating system (and/or application software)
Transition module and connecting cables
2.4
Configuring the Board
The board provides software control over most options. Settings can be modified to fit the
user's specifications. To configure, set the bits in the control register after installing the
board in a system. Make sure that all user-defined switches are properly set before
installing a PMC/XMC module. For more information, see
MVME2502 Installation and Use (6806800R96L)
Hardware Preparation and Installation
Switches on page
68.
37
