Controls, LEDs, and Connectors
3.5.2

SMT Configuration Switch (S2)

This eight position SMT configuration switch controls the flash bank user defined switch,
selects the flash boot image, and controls the safe start ENV settings. The default setting
on all switch positions is OFF and is indicated by brackets in

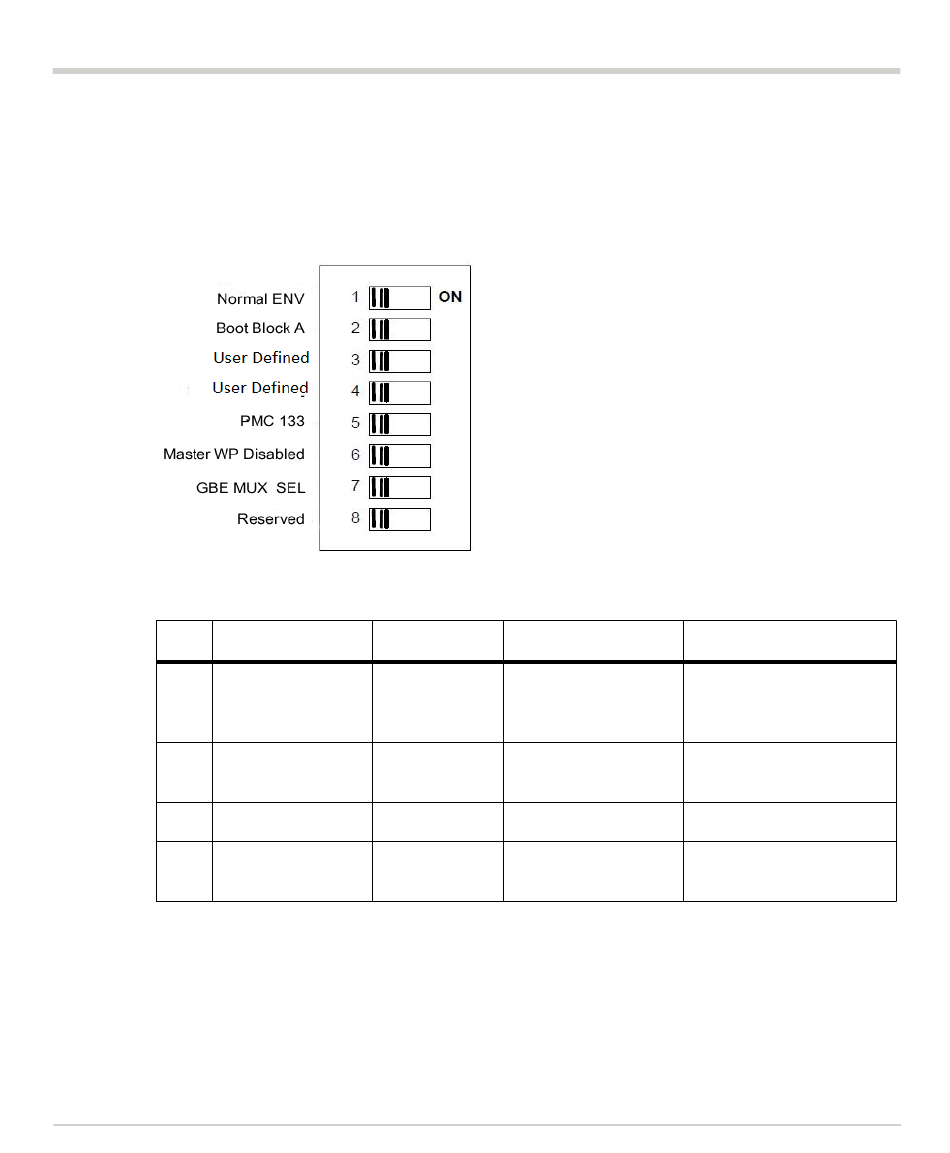

Figure 3-7 SMT Configuration Switch Position

Table 3-19 SMT Configuration Switch Settings

SW2 DEFAULT
1 OFF (Normal Env)
2 OFF (Flash Block A)
3 OFF (WP disabled) FLASH_WP_N
4 OFF (Auto)
70
Signal Name Description
Safe Start (ON= Use
NORMAL_ENV normal ENV, OFF=
Use safe ENV)
BOOT_BLOCK
Boot Block B Select
_A
Flash Write Protect
PMC_XMC_ XMC/PMC - Manual
SEL Detect or Auto Detect
MVME2502 Installation and Use (6806800R96L)
Controls, LEDs, and Connectors
Table 3-1.
Notes
Will select if XMC card or
PMC card is used
