Chapter 4
Functional Description
4.1
Block Diagram
The MVME2502 block diagram is illustrated in
4-1. All variants provide front panel
Figure
access to one serial port via a micro-mini DB-9 connector, two 10/100/1000 Ethernet port
(one is configurable to be routed to the front panel or the rear panel) through a RJ-45
connector and one Type A USB Port. It includes Board Fail LED indicator, user-defined LED
indicator and a ABORT/RESET switch.

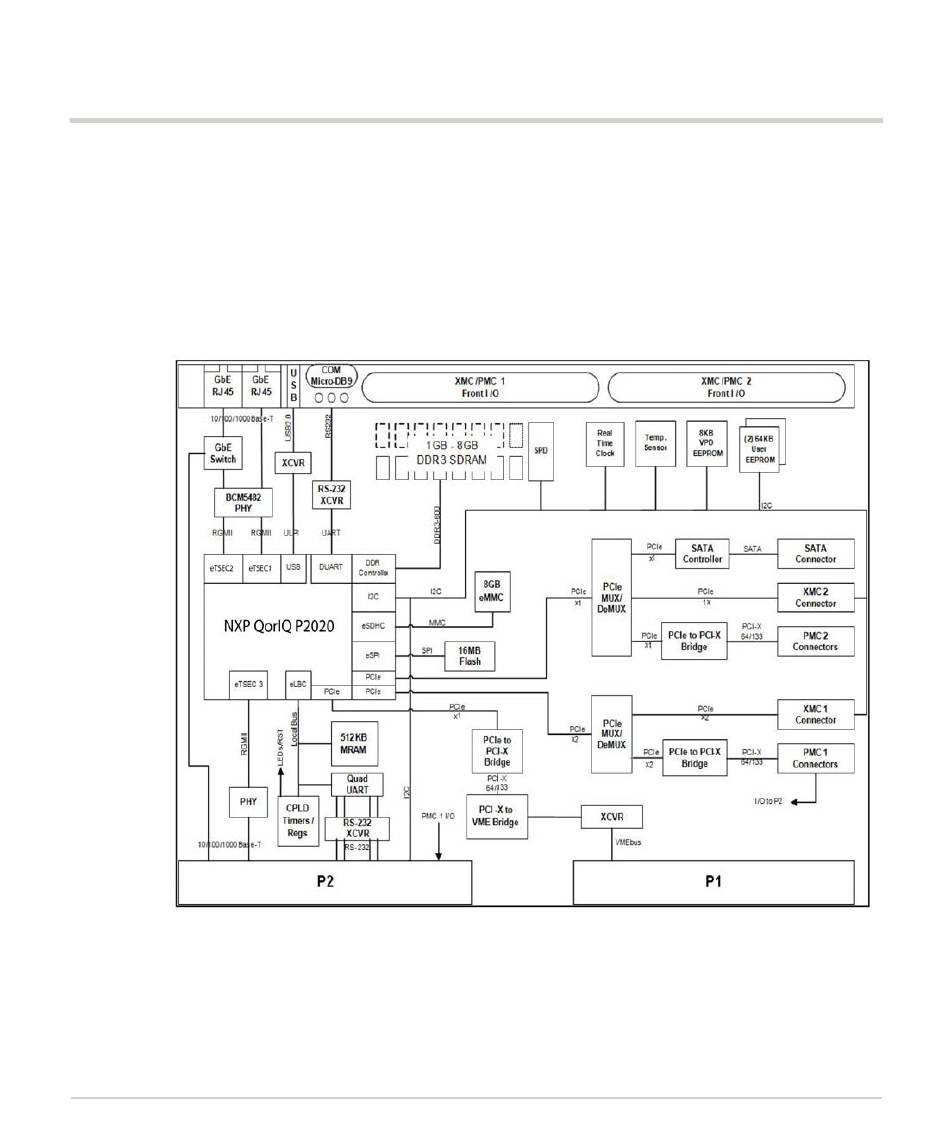

Figure 4-1 Block Diagram
MVME2502 Installation and Use (6806800R96L)
73
