On-board LEDs

The on-board LEDs are listed below. The LEDs are located on the rear side of the board
just opposite of the battery location. To view the board, see

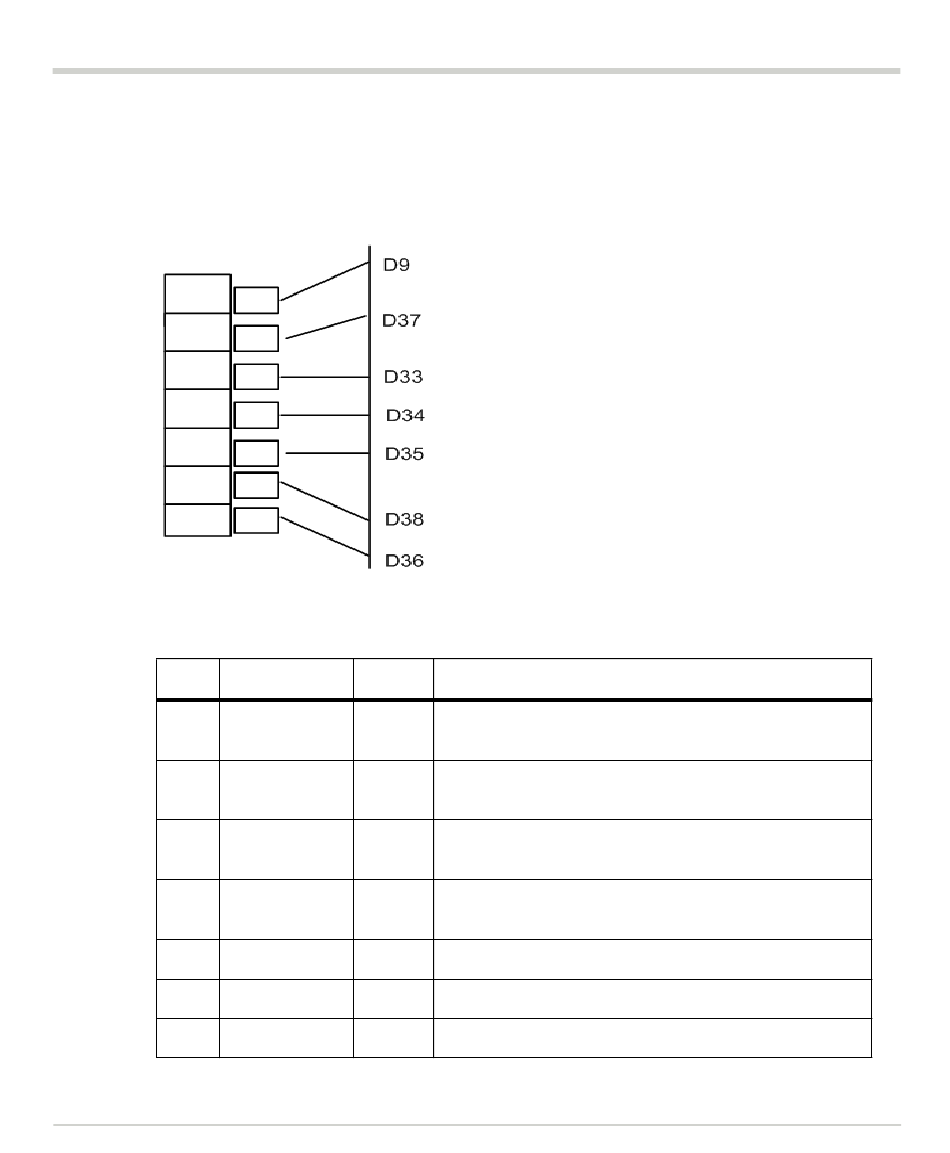

Figure 3-5 On-board LEDs

Table 3-2
Label Function
D9 Power Fail
D33 User Defined
D34 User Defined
D35 User Defined
D36 Early Power Fail Amber
D37 User Defined
D38 User Defined
50
On-board LEDs Status
Color Description
This indicator is illuminated when one or more of the on-
Red
board voltage rails fails.
Controlled by the CPLD. Used for boot-up sequence
Amber
indicator.
Controlled by the CPLD. Used for boot-up sequence
Amber
indicator.
Controlled by the CPLD. Used for boot-up sequence
Amber
indicator.
This indicator is lit when the early 3.3V power supply fails.
Amber Controlled by the CPLD
Amber Controlled by the CPLD
