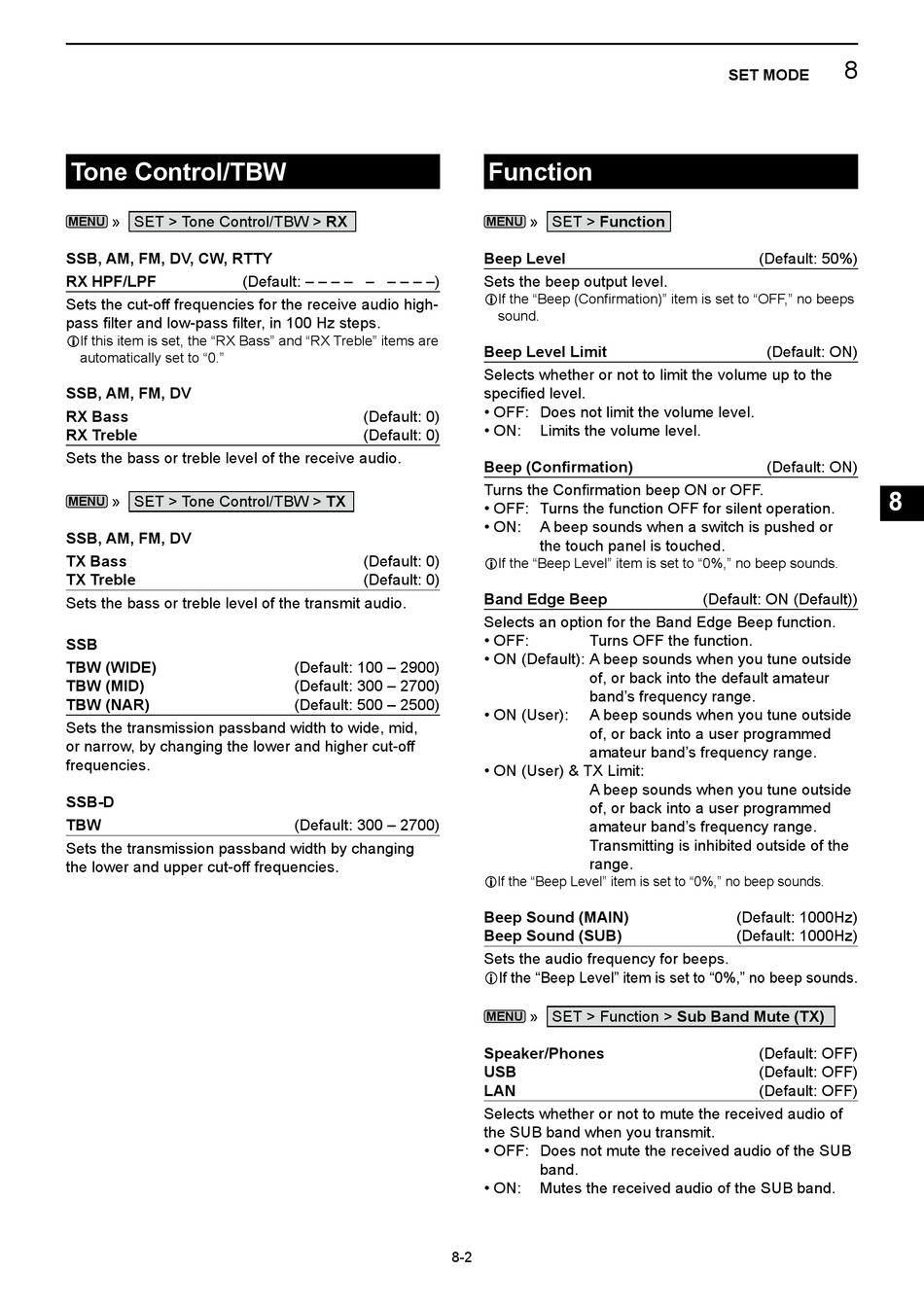

Tone Control/TBW
» SET > Tone Control/TBW > RX
MENU
SSB, AM, FM, DV, CW, RTTY
RX HPF/LPF
Sets the cut-off frequencies for the receive audio high-
pass filter and low-pass filter, in 100 Hz steps.
L If this item is set, the "RX Bass" and "RX Treble" items are
automatically set to "0."
SSB, AM, FM, DV
RX Bass
RX Treble
Sets the bass or treble level of the receive audio.
» SET > Tone Control/TBW > TX
MENU
SSB, AM, FM, DV
TX Bass
TX Treble
Sets the bass or treble level of the transmit audio.
SSB
TBW (WIDE)
TBW (MID)
TBW (NAR)
Sets the transmission passband width to wide, mid,
or narrow, by changing the lower and higher cut-off
frequencies.
SSB-D
TBW
Sets the transmission passband width by changing
the lower and upper cut-off frequencies.
(Default: – – – – – – – – –)
(Default: 0)
(Default: 0)
(Default: 0)
(Default: 0)
(Default: 100 – 2900)
(Default: 300 – 2700)
(Default: 500 – 2500)
(Default: 300 – 2700)
Function
» SET > Function
MENU
Beep Level
Sets the beep output level.
L If the "Beep (Confirmation)" item is set to "OFF," no beeps
sound.
Beep Level Limit
Selects whether or not to limit the volume up to the
specified level.
• OFF: Does not limit the volume level.
• ON:
Limits the volume level.
Beep (Confirmation)
Turns the Confirmation beep ON or OFF.
• OFF: Turns the function OFF for silent operation.
• ON:
A beep sounds when a switch is pushed or
the touch panel is touched.
L If the "Beep Level" item is set to "0%," no beep sounds.
Band Edge Beep
Selects an option for the Band Edge Beep function.
• OFF:
Turns OFF the function.
• ON (Default): A beep sounds when you tune outside
of, or back into the default amateur
band's frequency range.
• ON (User):
A beep sounds when you tune outside
of, or back into a user programmed
amateur band's frequency range.
• ON (User) & TX Limit:
A beep sounds when you tune outside
of, or back into a user programmed
amateur band's frequency range.
Transmitting is inhibited outside of the
range.
L If the "Beep Level" item is set to "0%," no beep sounds.
Beep Sound (MAIN)
Beep Sound (SUB)
Sets the audio frequency for beeps.
L If the "Beep Level" item is set to "0%," no beep sounds.
» SET > Function > Sub Band Mute (TX)
MENU
Speaker/Phones
USB
LAN
Selects whether or not to mute the received audio of
the SUB band when you transmit.
• OFF: Does not mute the received audio of the SUB
band.
• ON:
Mutes the received audio of the SUB band.
8-2
8
SET MODE
(Default: 50%)
(Default: ON)
(Default: ON)
(Default: ON (Default))
(Default: 1000Hz)
(Default: 1000Hz)
(Default: OFF)
(Default: OFF)
(Default: OFF)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
