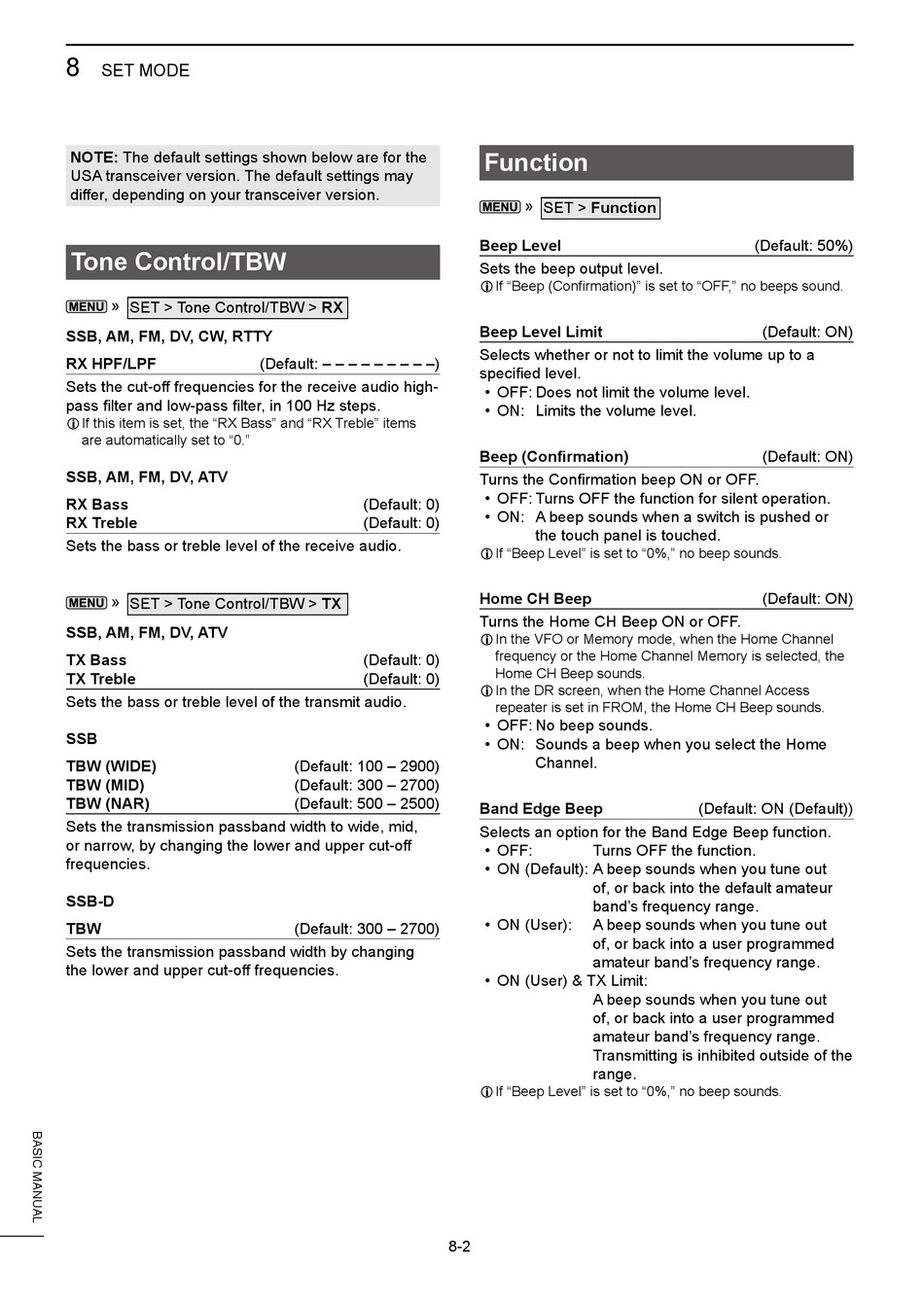

8
SET MODE
NOTE: The default settings shown below are for the
USA transceiver version. The default settings may
differ, depending on your transceiver version.
Tone Control/TBW
» SET > Tone Control/TBW > RX
SSB, AM, FM, DV, CW, RTTY
RX HPF/LPF
Sets the cut-off frequencies for the receive audio high-
pass filter and low-pass filter, in 100 Hz steps.
L If this item is set, the "RX Bass" and "RX Treble" items
are automatically set to "0."
SSB, AM, FM, DV, ATV
RX Bass
RX Treble
Sets the bass or treble level of the receive audio.
» SET > Tone Control/TBW > TX
SSB, AM, FM, DV, ATV
TX Bass
TX Treble
Sets the bass or treble level of the transmit audio.
SSB
TBW (WIDE)
TBW (MID)
TBW (NAR)
Sets the transmission passband width to wide, mid,
or narrow, by changing the lower and upper cut-off
frequencies.
SSB-D
TBW
Sets the transmission passband width by changing
the lower and upper cut-off frequencies.
(Default: – – – – – – – – –)
(Default: 0)
(Default: 0)
(Default: 0)
(Default: 0)
(Default: 100 – 2900)
(Default: 300 – 2700)
(Default: 500 – 2500)
(Default: 300 – 2700)
Function
» SET > Function
Beep Level
Sets the beep output level.
L If "Beep (Confirmation)" is set to "OFF," no beeps sound.
Beep Level Limit
Selects whether or not to limit the volume up to a
specified level.
• OFF: Does not limit the volume level.
• ON: Limits the volume level.
Beep (Confirmation)
Turns the Confirmation beep ON or OFF.
• OFF: Turns OFF the function for silent operation.
• ON: A beep sounds when a switch is pushed or
the touch panel is touched.
L If "Beep Level" is set to "0%," no beep sounds.
Home CH Beep
Turns the Home CH Beep ON or OFF.
L In the VFO or Memory mode, when the Home Channel
frequency or the Home Channel Memory is selected, the
Home CH Beep sounds.
L In the DR screen, when the Home Channel Access
repeater is set in FROM, the Home CH Beep sounds.
• OFF: No beep sounds.
• ON: Sounds a beep when you select the Home
Channel.
Band Edge Beep
Selects an option for the Band Edge Beep function.
• OFF:
Turns OFF the function.
• ON (Default): A beep sounds when you tune out
of, or back into the default amateur
band's frequency range.
• ON (User):
A beep sounds when you tune out
of, or back into a user programmed
amateur band's frequency range.
• ON (User) & TX Limit:
A beep sounds when you tune out
of, or back into a user programmed
amateur band's frequency range.
Transmitting is inhibited outside of the
range.
L If "Beep Level" is set to "0%," no beep sounds.
8-2
(Default: 50%)
(Default: ON)
(Default: ON)
(Default: ON)
(Default: ON (Default))
