RLX2-IHx Series ♦ 802.11a, b, g, n
Industrial Hotspots
Circuit Diagram

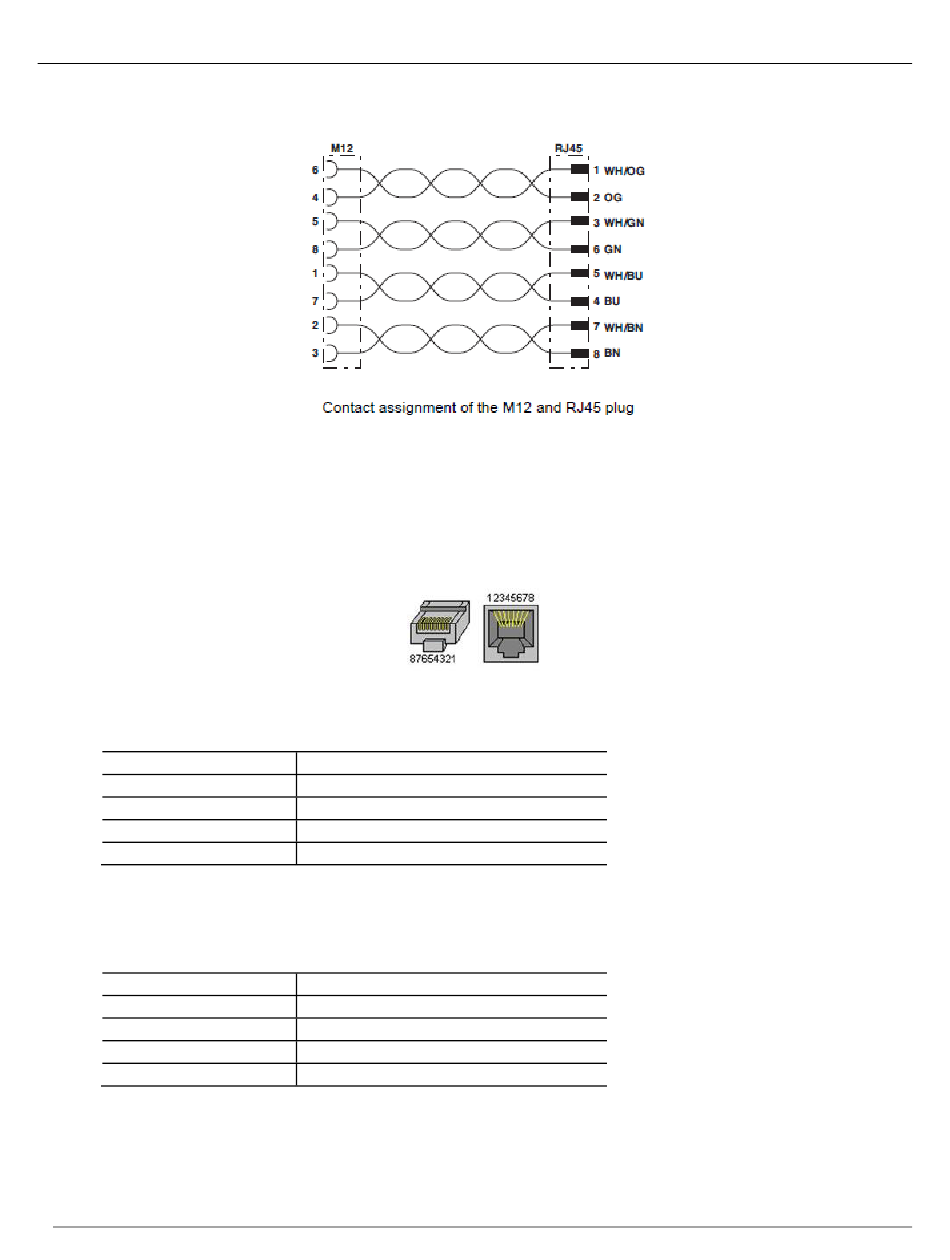

8.4.2 Ethernet Cable Configuration (all other radios)
The RLX2-IHx series radios (except the RLX2-IHNF-W weatherproof radio) use Ethernet
cable. A diagram of the pin assignments appears below.
Straight-Though Cable
RJ-45 Pin
1 Rx+
2 Rx-
3 Tx+
6 Tx-
Crossover Cable
RJ-45 Pin
1 Rx+
2 Rx-
3 Tx+
6 Tx-
ProSoft Technology, Inc.
RJ-45 Pin
1 Tx+
2 Tx-
3 Rx+
6 Rx-
RJ-45 Pin
3 Tx+
6 Tx-
1 Rx+
2 Rx-
Appendix B - Radio Hardware
User Manual
Page 201 of 248
