RLX2-IHx Series ♦ 802.11a, b, g, n
Industrial Hotspots
5.11.1

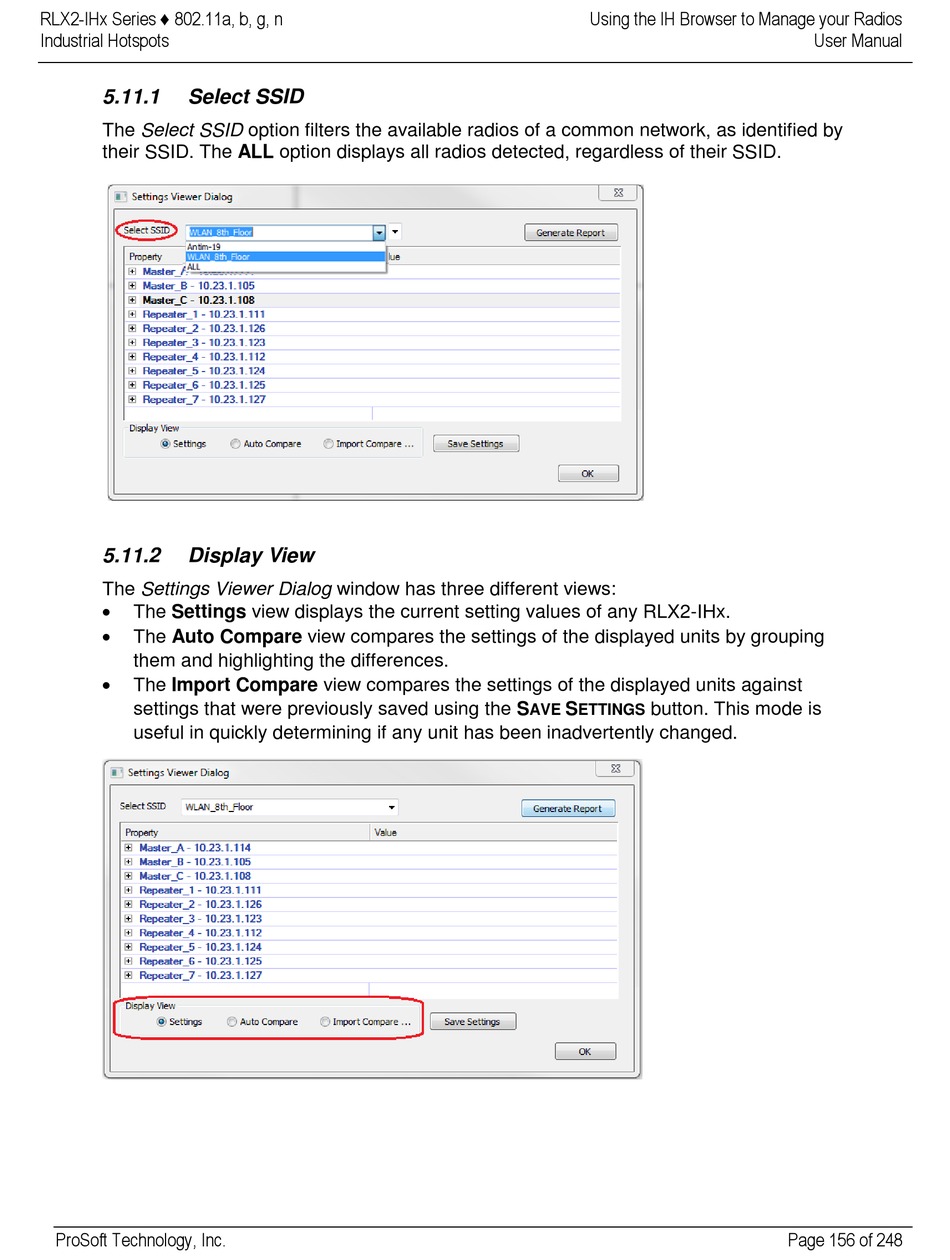

Select SSID

The Select SSID option filters the available radios of a common network, as identified by
their SSID. The ALL option displays all radios detected, regardless of their SSID.
5.11.2

Display View

The Settings Viewer Dialog window has three different views:

The Settings view displays the current setting values of any RLX2-IHx.

The Auto Compare view compares the settings of the displayed units by grouping
them and highlighting the differences.

The Import Compare view compares the settings of the displayed units against
settings that were previously saved using the S
useful in quickly determining if any unit has been inadvertently changed.
ProSoft Technology, Inc.
Using the IH Browser to Manage your Radios
S button. This mode is
AVE ETTINGS
User Manual
Page 156 of 248
