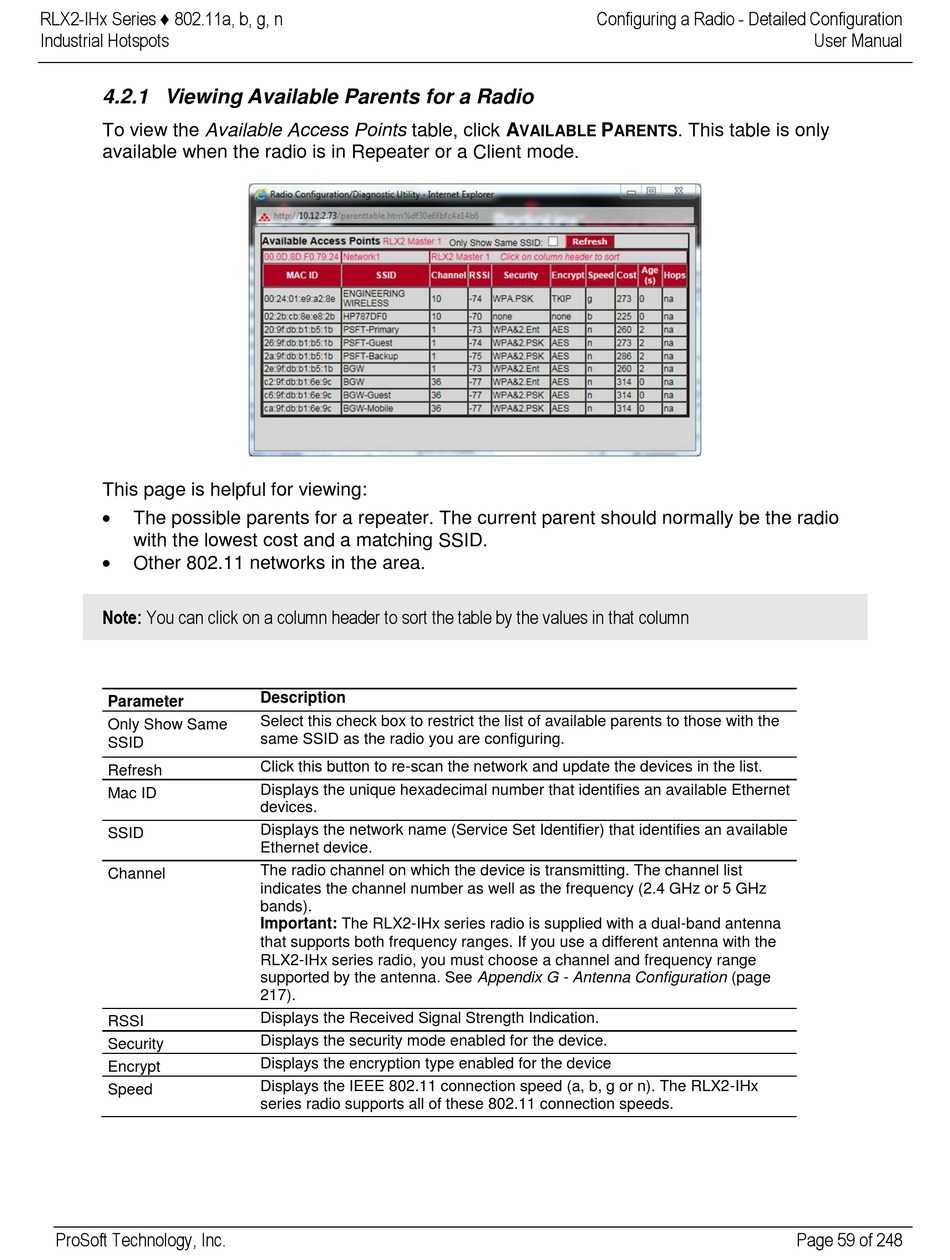

4.2.1 Viewing Available Parents for a Radio

To view the Available Access Points table, click A
available when the radio is in Repeater or a Client mode.
This page is helpful for viewing:

The possible parents for a repeater. The current parent should normally be the radio
with the lowest cost and a matching SSID.

Other 802.11 networks in the area.
Note: You can click on a column header to sort the table by the values in that column
Parameter
Only Show Same
SSID
Refresh
Mac ID
SSID
Channel
RSSI
Security
Encrypt
Speed
ProSoft Technology, Inc.
Description
Select this check box to restrict the list of available parents to those with the
same SSID as the radio you are configuring.
Click this button to re-scan the network and update the devices in the list.
Displays the unique hexadecimal number that identifies an available Ethernet
devices.
Displays the network name (Service Set Identifier) that identifies an available
Ethernet device.
The radio channel on which the device is transmitting. The channel list
indicates the channel number as well as the frequency (2.4 GHz or 5 GHz
bands).
Important: The RLX2-IHx series radio is supplied with a dual-band antenna
that supports both frequency ranges. If you use a different antenna with the
RLX2-IHx series radio, you must choose a channel and frequency range
supported by the antenna. See Appendix G - Antenna Configuration (page
217).
Displays the Received Signal Strength Indication.
Displays the security mode enabled for the device.
Displays the encryption type enabled for the device
Displays the IEEE 802.11 connection speed (a, b, g or n). The RLX2-IHx
series radio supports all of these 802.11 connection speeds.
Configuring a Radio - Detailed Configuration
P . This table is only
