Setting The Radio Ip Address In The Ih Browser; Assigning A Temporary Ip Address - ProSoft Technology RLX2-IHW-E User Manual

RLX2-IHx Series ♦ 802.11a, b, g, n
Industrial Hotspots
5.3

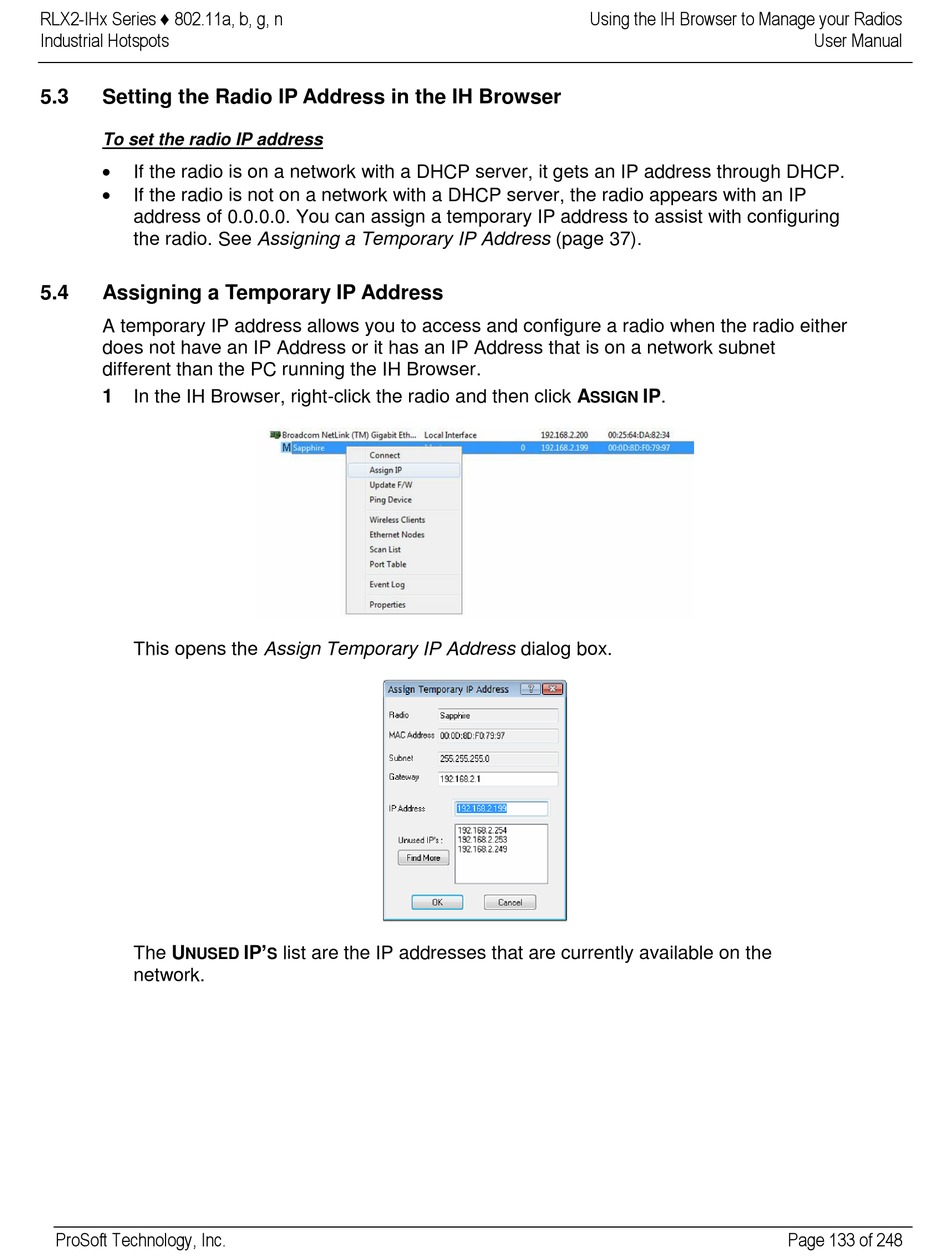

Setting the Radio IP Address in the IH Browser

To set the radio IP address

If the radio is on a network with a DHCP server, it gets an IP address through DHCP.

If the radio is not on a network with a DHCP server, the radio appears with an IP
address of 0.0.0.0. You can assign a temporary IP address to assist with configuring
the radio. See Assigning a Temporary IP Address (page 37).
5.4

Assigning a Temporary IP Address

A temporary IP address allows you to access and configure a radio when the radio either
does not have an IP Address or it has an IP Address that is on a network subnet
different than the PC running the IH Browser.
1 In the IH Browser, right-click the radio and then click A
This opens the Assign Temporary IP Address dialog box.
The U
NUSED
network.
ProSoft Technology, Inc.
IP'
list are the IP addresses that are currently available on the
S
Using the IH Browser to Manage your Radios
IP.
SSIGN
User Manual
Page 133 of 248
