RLX2-IHx Series ♦ 802.11a, b, g, n
Industrial Hotspots
1.5

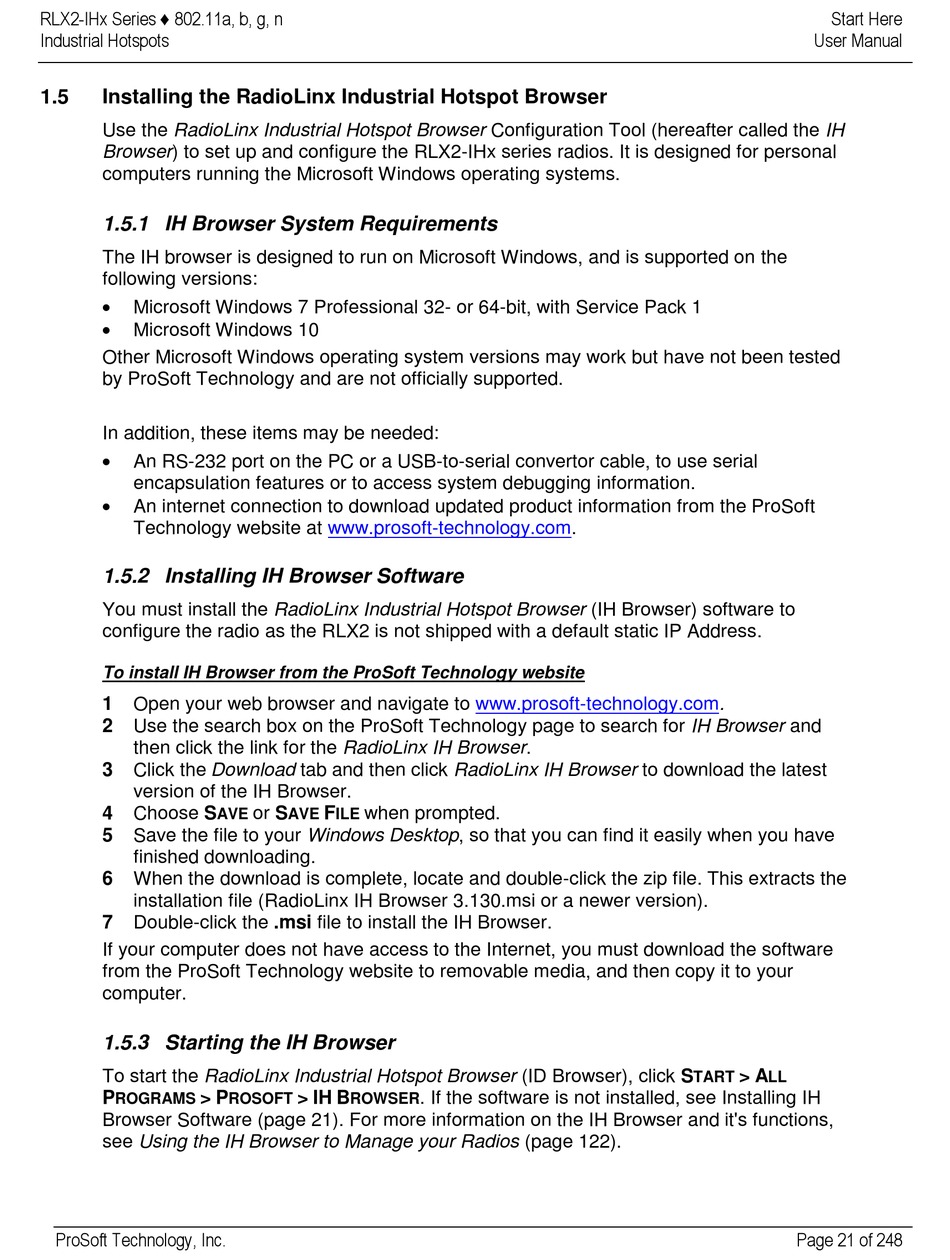

Installing the RadioLinx Industrial Hotspot Browser

Use the RadioLinx Industrial Hotspot Browser Configuration Tool (hereafter called the IH
Browser) to set up and configure the RLX2-IHx series radios. It is designed for personal
computers running the Microsoft Windows operating systems.

1.5.1 IH Browser System Requirements

The IH browser is designed to run on Microsoft Windows, and is supported on the
following versions:

Microsoft Windows 7 Professional 32- or 64-bit, with Service Pack 1

Microsoft Windows 10
Other Microsoft Windows operating system versions may work but have not been tested
by ProSoft Technology and are not officially supported.
In addition, these items may be needed:

An RS-232 port on the PC or a USB-to-serial convertor cable, to use serial
encapsulation features or to access system debugging information.

An internet connection to download updated product information from the ProSoft
Technology website at www.prosoft-technology.com.

1.5.2 Installing IH Browser Software

You must install the RadioLinx Industrial Hotspot Browser (IH Browser) software to
configure the radio as the RLX2 is not shipped with a default static IP Address.
To install IH Browser from the ProSoft Technology website
1 Open your web browser and navigate to www.prosoft-technology.com.
2 Use the search box on the ProSoft Technology page to search for IH Browser and
then click the link for the RadioLinx IH Browser.
3 Click the Download tab and then click RadioLinx IH Browser to download the latest
version of the IH Browser.
4 Choose S
AVE
5 Save the file to your Windows Desktop, so that you can find it easily when you have
finished downloading.
6 When the download is complete, locate and double-click the zip file. This extracts the
installation file (RadioLinx IH Browser 3.130.msi or a newer version).
7 Double-click the .msi file to install the IH Browser.
If your computer does not have access to the Internet, you must download the software
from the ProSoft Technology website to removable media, and then copy it to your
computer.

1.5.3 Starting the IH Browser

To start the RadioLinx Industrial Hotspot Browser (ID Browser), click S
P > P
ROGRAMS
Browser Software (page 21). For more information on the IH Browser and it's functions,
see Using the IH Browser to Manage your Radios (page 122).
ProSoft Technology, Inc.
or S F when prompted.
AVE ILE
> IH B
ROSOFT ROWSER
. If the software is not installed, see Installing IH
Start Here
User Manual
> A
TART LL
Page 21 of 248
