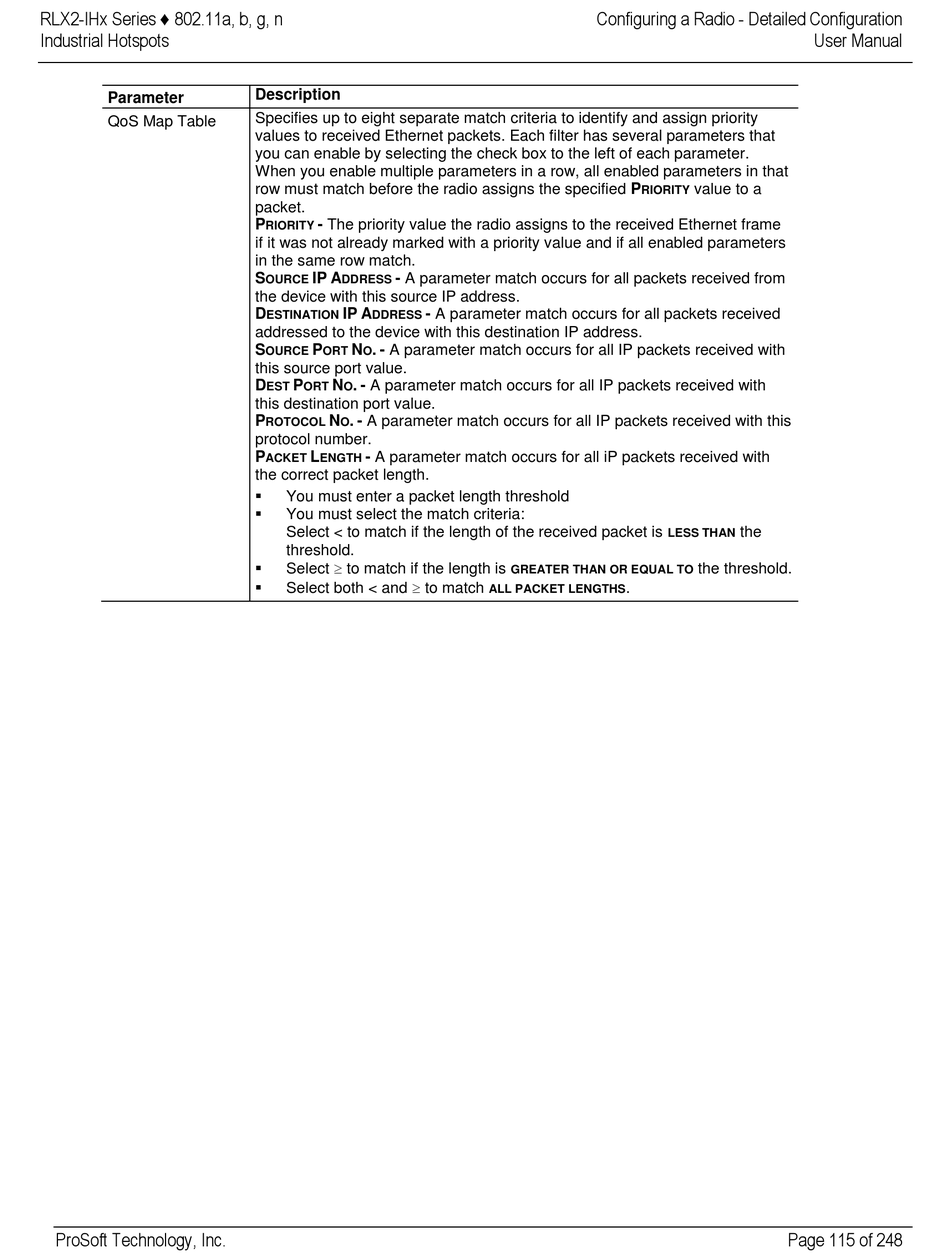

RLX2-IHx Series ♦ 802.11a, b, g, n
Industrial Hotspots
Parameter
QoS Map Table
ProSoft Technology, Inc.
Description
Specifies up to eight separate match criteria to identify and assign priority
values to received Ethernet packets. Each filter has several parameters that
you can enable by selecting the check box to the left of each parameter.
When you enable multiple parameters in a row, all enabled parameters in that
row must match before the radio assigns the specified P
packet.
P
- The priority value the radio assigns to the received Ethernet frame
RIORITY
if it was not already marked with a priority value and if all enabled parameters
in the same row match.
S
IP A
- A parameter match occurs for all packets received from
OURCE
DDRESS
the device with this source IP address.
D
IP A
- A parameter match occurs for all packets received
ESTINATION
DDRESS
addressed to the device with this destination IP address.
S
P
N
. - A parameter match occurs for all IP packets received with
OURCE
ORT
O
this source port value.
D
P
N
. - A parameter match occurs for all IP packets received with
EST
ORT
O
this destination port value.
P
N
. - A parameter match occurs for all IP packets received with this
ROTOCOL
O
protocol number.
P
L
- A parameter match occurs for all iP packets received with
ACKET
ENGTH
the correct packet length.
You must enter a packet length threshold
You must select the match criteria:
Select < to match if the length of the received packet is
threshold.
Select to match if the length is
Select both < and to match
Configuring a Radio - Detailed Configuration
RIORITY
LESS THAN
GREATER THAN OR EQUAL TO
.
ALL PACKET LENGTHS
User Manual
value to a
the
the threshold.
Page 115 of 248
