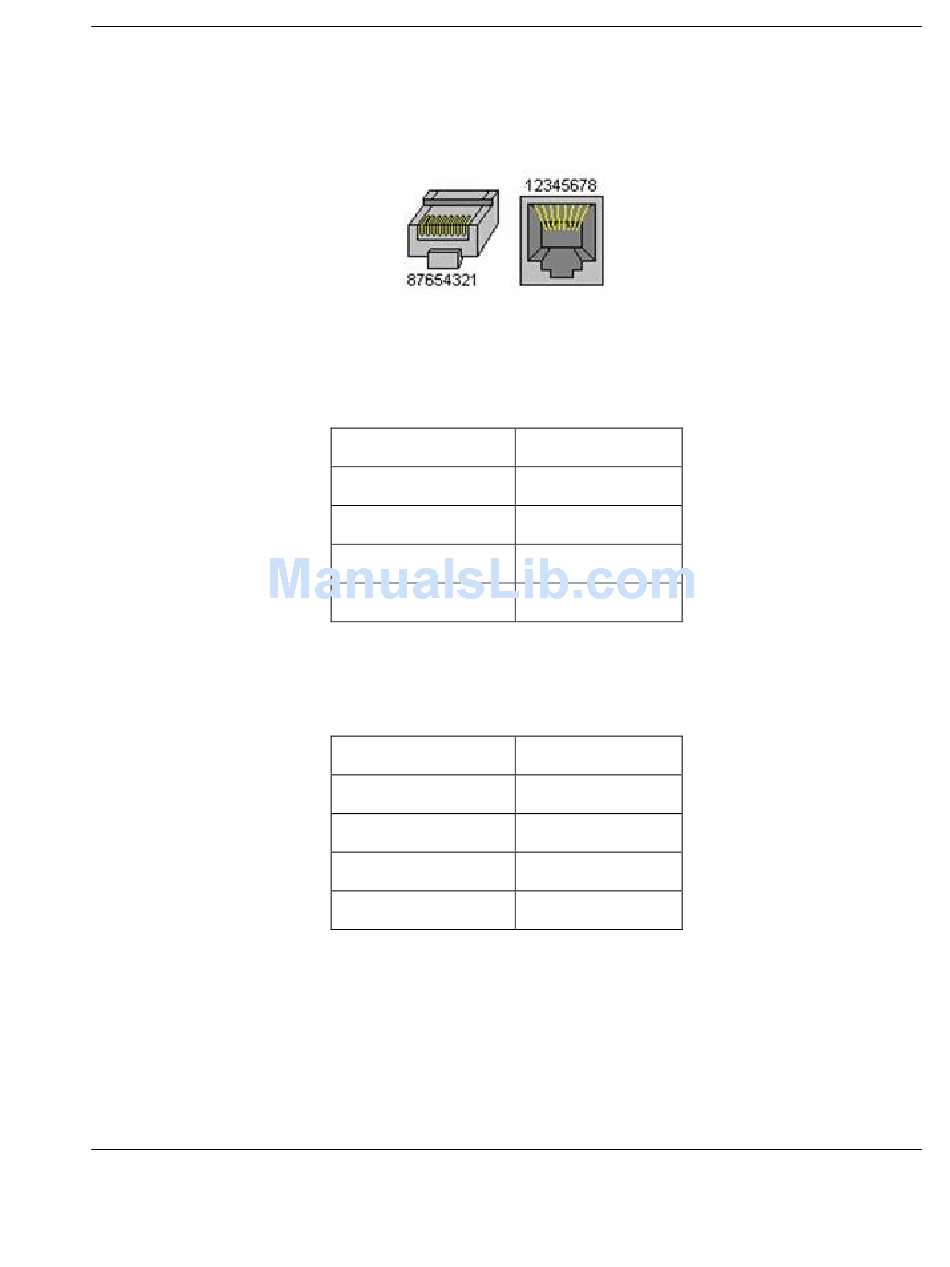

Ethernet Cable Configuration (all other radios)
ProSoft Technology, Inc.
June 15, 2015
Straight-Though Cable
RJ-45 Pin
1 Rx+
2 Rx-
3 Tx+
6 Tx-
Crossover Cable
RJ-45 Pin
1 Rx+
2 Rx-
3 Tx+
6 Tx-
RLX2 Industrial Hotspot Series
RJ-45 Pin
1 Tx+
2 Tx-
3 Rx+
6 Rx-
RJ-45 Pin
3 Tx+
6 Tx-
1 Rx+
2 Rx-
Page 173 of 212
