3.2

Making Power and Data Connections

3.2.1 RLX2-IHW, IHNF, IHG, IHA Radio Connections

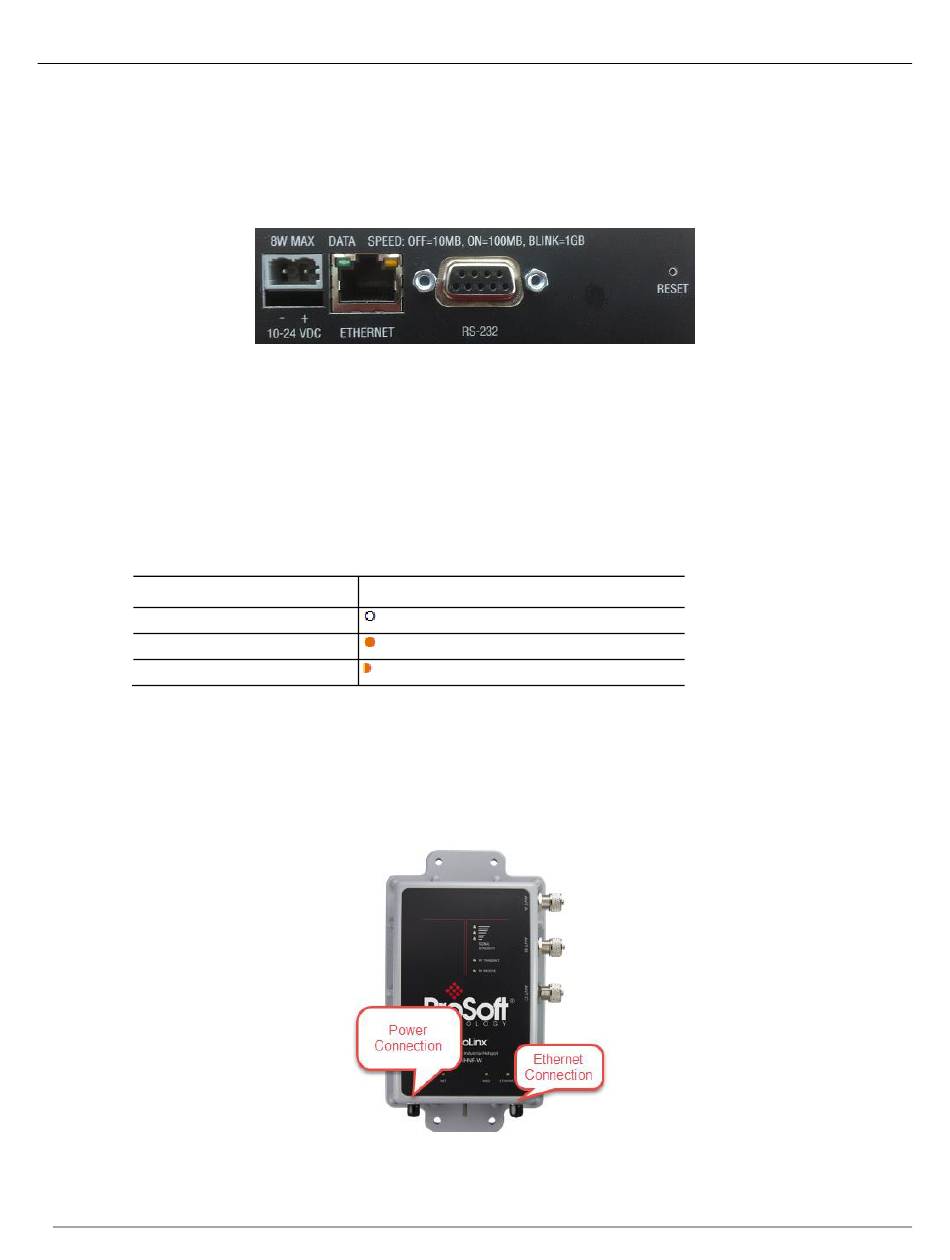

The power, Ethernet, and serial (RS-232) connections for these radios are located on
the bottom of the case.
1 Attach an Ethernet cable to the radio you want to be the Master RLX2-IHx series
radio. If you are connecting to a network, make sure this network connection is on
the same subnet as the PC running the IH Browser configuration software.
2 Connect a power cable (power connection included with the radio) to the 10-24 VDC
port.
The Ethernet DATA LED illuminates when data is sent to or received from the
o
radio.
The Ethernet SPEED LED indicates the speed of the Ethernet connection:
o
Ethernet Connection speed
10 Base T
100 Base T
1000 Base T

3.2.2 RLX2-IHNF-W Radio Connections

All power and Ethernet connections for these radios are located on the bottom of the
case.
ProSoft Technology, Inc.
SPEED LED
LED is off
LED is on
LED blinks about once every two seconds
