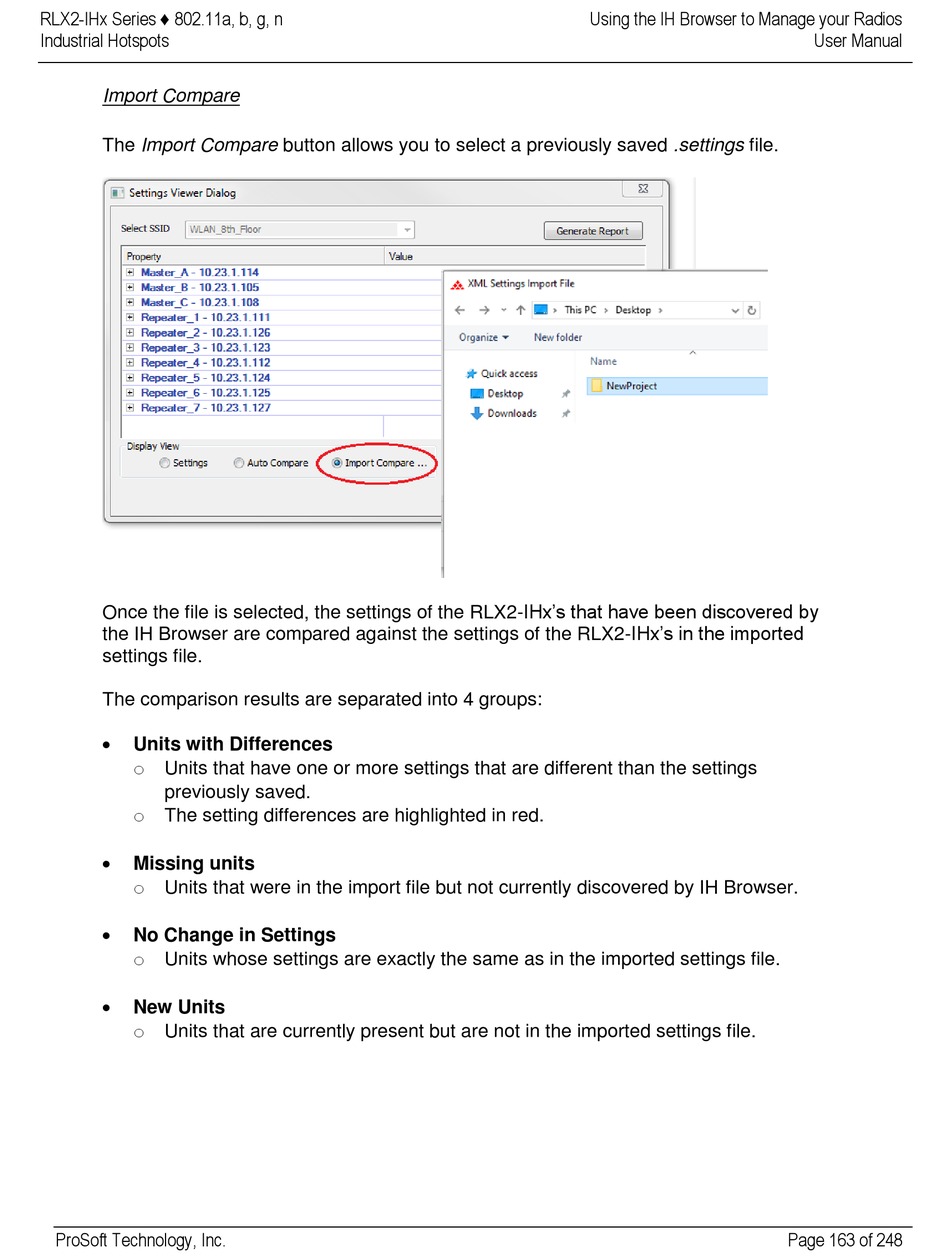

ProSoft Technology RLX2-IHW-E User Manual page 163

RLX2-IHx Series ♦ 802.11a, b, g, n
Industrial Hotspots
Import Compare
The Import Compare button allows you to select a previously saved .settings file.
Once the file is selected, the settings of the RLX2-IHx's that have been discovered by
the IH Browser are compared against the settings of the RLX2-IHx's in the imported
settings file.
The comparison results are separated into 4 groups:

Units with Differences
o Units that have one or more settings that are different than the settings
previously saved.
o The setting differences are highlighted in red.

Missing units
o Units that were in the import file but not currently discovered by IH Browser.

No Change in Settings
o Units whose settings are exactly the same as in the imported settings file.

New Units
o Units that are currently present but are not in the imported settings file.
ProSoft Technology, Inc.
Using the IH Browser to Manage your Radios
User Manual
Page 163 of 248
