RLX2-IHx Series ♦ 802.11a, b, g, n
Industrial Hotspots
5

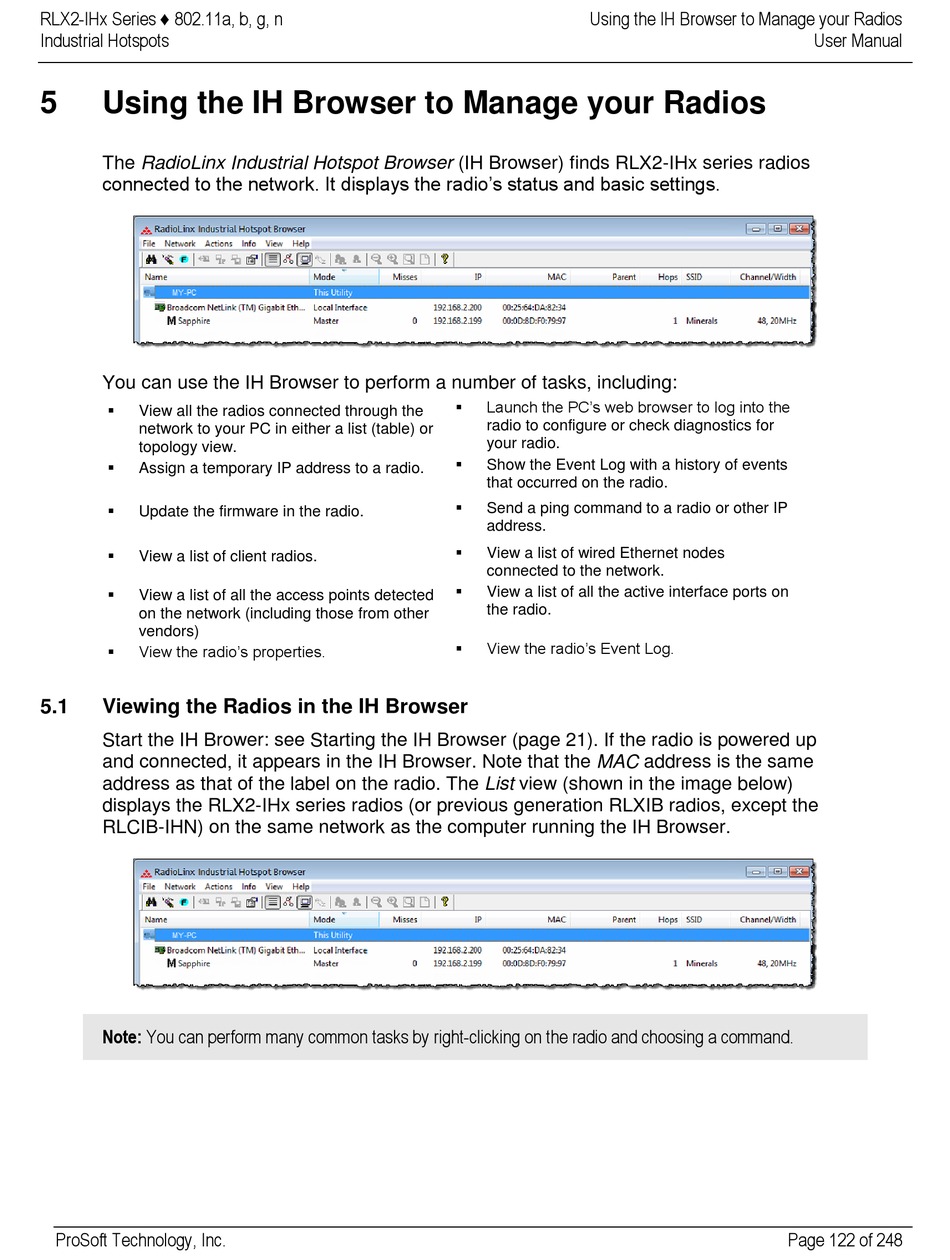

Using the IH Browser to Manage your Radios

The RadioLinx Industrial Hotspot Browser (IH Browser) finds RLX2-IHx series radios
connected to the network. It displays the radio's status and basic settings.
You can use the IH Browser to perform a number of tasks, including:

View all the radios connected through the
network to your PC in either a list (table) or
topology view.

Assign a temporary IP address to a radio.

Update the firmware in the radio.

View a list of client radios.

View a list of all the access points detected
on the network (including those from other
vendors)
View the radio's properties.

5.1

Viewing the Radios in the IH Browser

Start the IH Brower: see Starting the IH Browser (page 21). If the radio is powered up
and connected, it appears in the IH Browser. Note that the MAC address is the same
address as that of the label on the radio. The List view (shown in the image below)
displays the RLX2-IHx series radios (or previous generation RLXIB radios, except the
RLCIB-IHN) on the same network as the computer running the IH Browser.
Note: You can perform many common tasks by right-clicking on the radio and choosing a command.
ProSoft Technology, Inc.
Using the IH Browser to Manage your Radios
 Launch the PC's web browser to log into the
radio to configure or check diagnostics for
your radio.

Show the Event Log with a history of events
that occurred on the radio.

Send a ping command to a radio or other IP
address.

View a list of wired Ethernet nodes
connected to the network.

View a list of all the active interface ports on
the radio.
 View the radio's Event Log.
User Manual
Page 122 of 248
