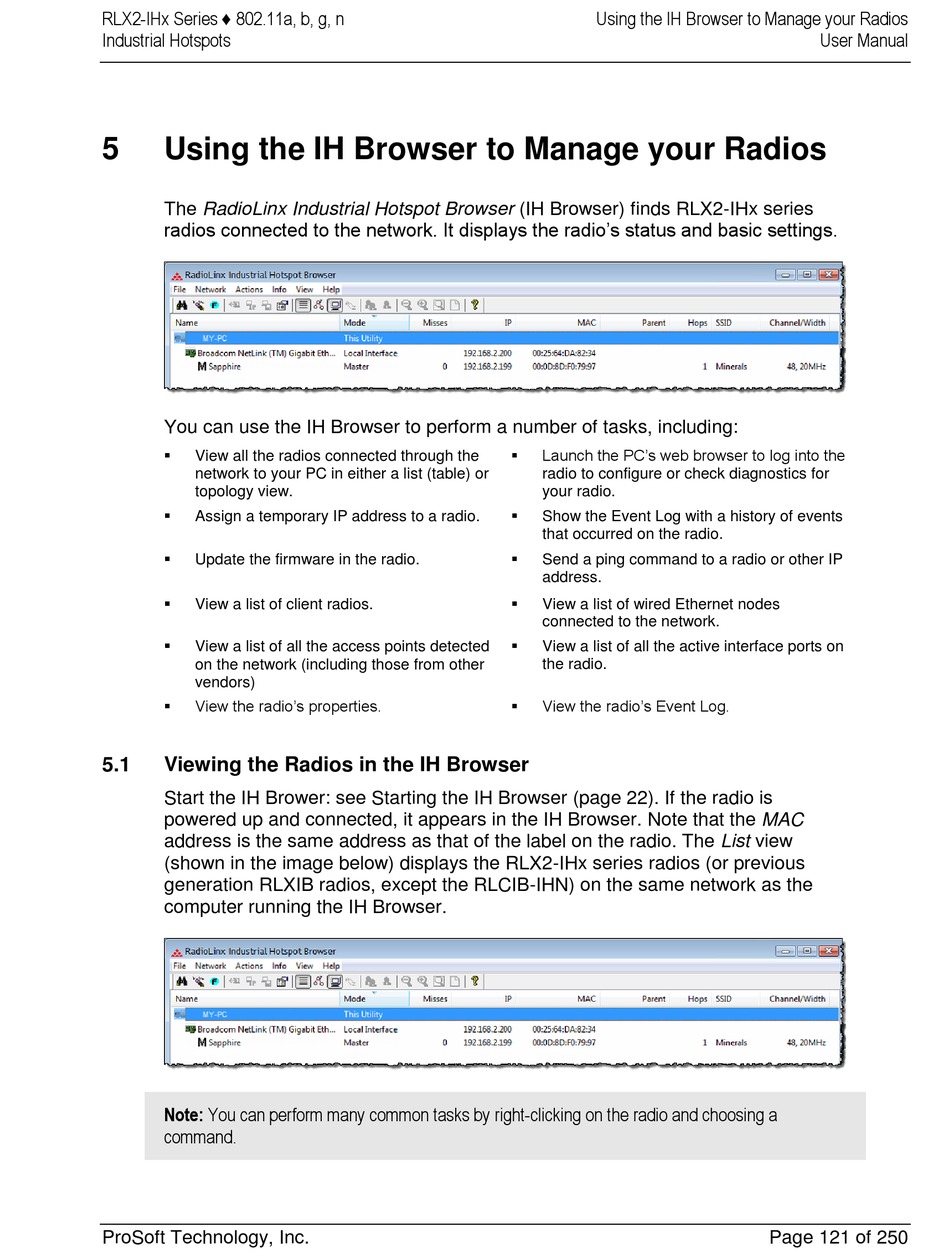

Using the IH Browser to Manage your Radios

The RadioLinx Industrial Hotspot Browser (IH Browser) finds RLX2-IHx series
radios connected to the network. It displays the radio's status and basic settings.
You can use the IH Browser to perform a number of tasks, including:

View all the radios connected through the
network to your PC in either a list (table) or
topology view.

Assign a temporary IP address to a radio.

Update the firmware in the radio.

View a list of client radios.

View a list of all the access points detected
on the network (including those from other
vendors)
 View the radio's properties.
5.1

Viewing the Radios in the IH Browser

Start the IH Brower: see Starting the IH Browser (page 22). If the radio is
powered up and connected, it appears in the IH Browser. Note that the MAC
address is the same address as that of the label on the radio. The List view
(shown in the image below) displays the RLX2-IHx series radios (or previous
generation RLXIB radios, except the RLCIB-IHN) on the same network as the
computer running the IH Browser.
Note: You can perform many common tasks by right-clicking on the radio and choosing a
command.
ProSoft Technology, Inc.
Using the IH Browser to Manage your Radios
 Launch the PC's web browser to log into the
radio to configure or check diagnostics for
your radio.

Show the Event Log with a history of events
that occurred on the radio.

Send a ping command to a radio or other IP
address.

View a list of wired Ethernet nodes
connected to the network.

View a list of all the active interface ports on
the radio.
 View the radio's Event Log.
