Chapter 3: System Setup

Installing a SO-DIMM Memory Module

Remove the bottom cover before installing a SO-DIMM.

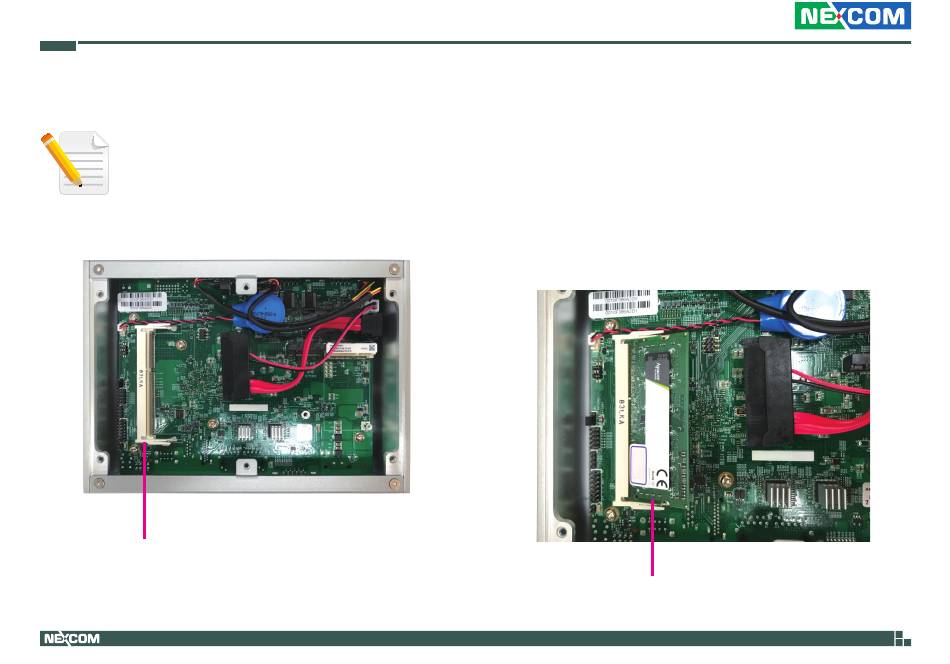

1. Locate the SO-DIMM socket.
SO-DIMM Socket
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
2. Insert the module into the socket at an approximately 30-degree angle.
The ejector tabs at the ends of the socket will automatically snap into the
locked position to hold the module in place.
Memory Module
