Chapter 3: System Setup

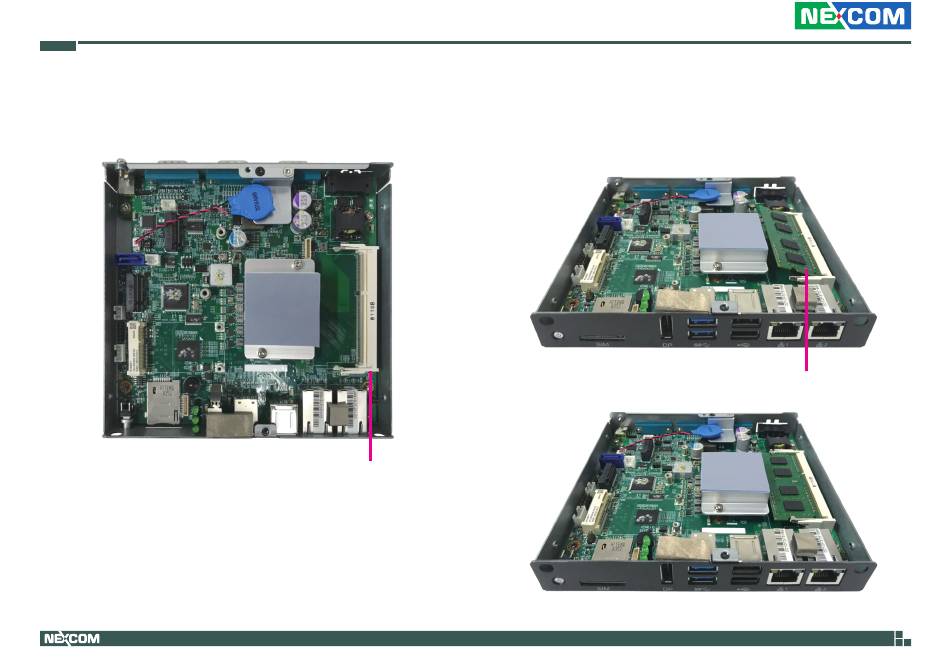

Installing a SO-DIMM Memory Module
1. Locate the SO-DIMM socket.
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
2. Insert the module into the socket at an approximately 30 degrees angle.
SO-DIMM Socket
30
Push the module down until the clips on both sides of the socket lock
into position. The ejector tabs at the ends of the socket will automatically
snap into the locked position to hold the module in place.
Memory Module
NISE 51 User Manual
