Chapter 3: System Setup

C 3: s
haPter ystem
Installing a SO-DIMM Memory Module & M.2 M Key SSD Module (2242)

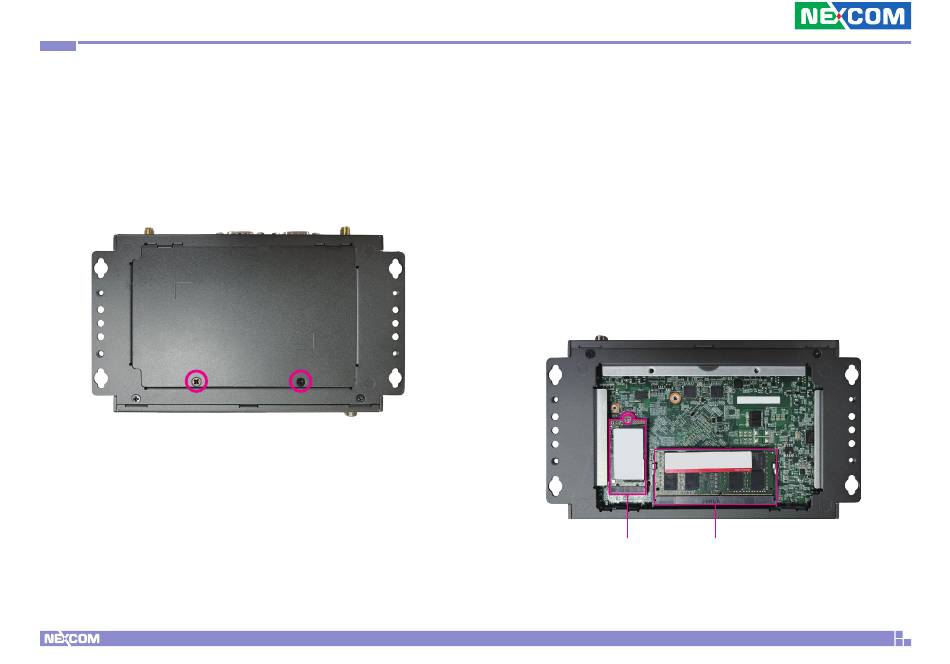

1. Loosen the screws on the bottom cover, and remove the cover from the
chassis.
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
s
etuP
26
2. Insert the M.2 SSD module into the M.2 slot at a 45 degree angle
until the gold-plated connector on the edge of the module completely
disappears inside the slot. With the module fully inserted, tighten a
screw into the mounting hole on the module to secure it.
Then, install a memory module into the SO-DIMM socket. Insert the
module into the socket at an approximately 30 degree angle. Push
the module down until the clips on both sides of the socket lock into
position. The gold-plated connector on the edge of the module will
almost completely disappear inside the socket.
M.2 M Key Slot SO-DIMM Socket
