Show Instrument Schematic - Micromeritics GEMINI VII Operator's Manual

S I
HOW NSTRUMENT
Unit [n] > Show Instrument Schematic
Use to enable the manual control of certain system valves and pump components on the analyzer
schematic.
When this option is enabled, a checkmark appears to the left of Unit [n] > Enable Manual
Control.
If the analyzer schematic is not immediately visible, go to Unit [n] > Show Instrument
Schematic.

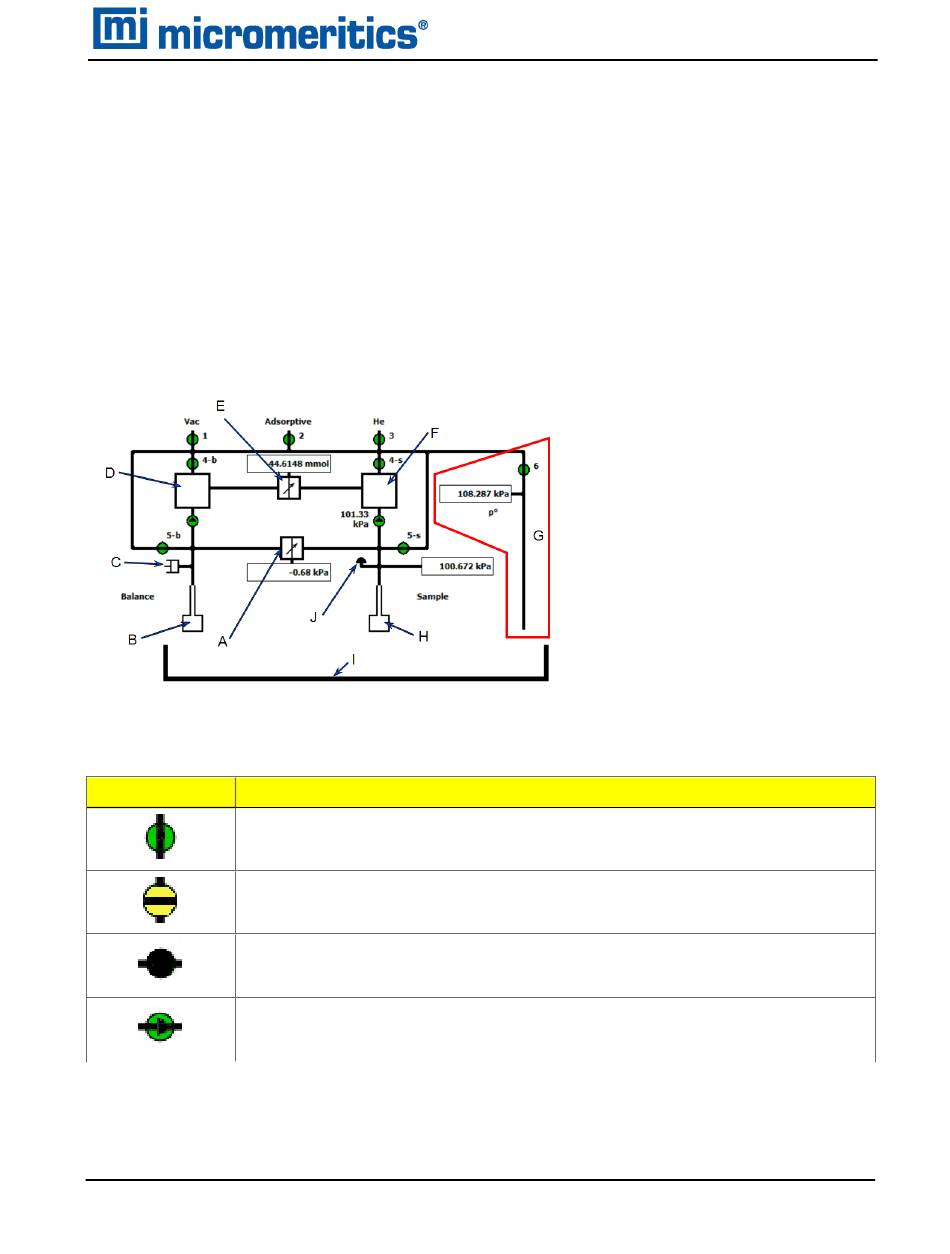

Analyzer Schematic Icons
Icon or Symbol Description
Open Valve. Green indicates an open valve.
Closed Valve. Yellow indicates a closed valve. When manual control is
disabled, closed valves appear white.
Servo Valve. Closed.
Servo Valve. Open.
Gemini VII Operator Manual
239-42828-01 (Rev H ) — May 2021
S
CHEMATIC

Show Instrument Schematic

A. Differential pressure trans-
ducer
B. Balance tube
C. Balance volume adjustment
D. Balance tube reservoir
E. Quantity adsorbed trans-
ducer
F. Sample tube reservoir
G. P tube, valve, and trans-
̀ o
ducer reading are not dis-
played on Model 2390a
H. Sample tube
I. Elevator
J. Pressure relief valve
2 - 17
