Given the density profile, the amount adsorbed at the stated pressure can be easily calculated as
the integral over the profile. Repeating this calculation over a range of pressures yields the
adsorption isotherm for the model. If the value of H is very large, the isotherm obtained
corresponds to that of an external, or free, surface. If H is smaller, a range of pressures is reached
where two minima exist for the grand potential, showing the presence of two metastable phases
having different density distributions but the same chemical potential. The phase with the lower
GPE is the stable one. As the pressure is increased, a point is reached where the other phase
becomes the stable one. This phase transition reflects condensation of adsorbate in the pore; the
pressure at which it occurs is called the critical pore-filling pressure. This pressure is analogous to
the condensation pressure predicted by the Kelvin equation in the classical model of pore filling.
Figure 2 shows how the profiles change with pressure for a model pore with H = 40 angstroms.
The inset shows the density profiles for the corresponding points of the isotherm.
The profiles show the density distribution from one wall to the center of the slit; the other half of the
distribution is a mirror image of the profile shown.
As the pressure is first increased from zero, almost all the adsorbed atoms occupy a position close
to the surface.
Inset a shows the profile corresponding to point a on the isotherm where the surface is about
n
half covered.
At point b, the first layer is so full that it is more favorable for atoms to start a new layer.
n
At point c, a third layer is forming. Point c, for this size slit, is the critical pore-filling pressure. In
n
inset c, the profile shows the density decreasing to near zero (actually the bulk gas density) at 4
or 5 molecular diameters from the surface.
Inset d shows the profile converging on a density similar to that of bulk liquid argon in the center
n
of the pore, indicating a phase transition.
Gemini VII Operator Manual
239-42828-01 (Rev H ) — May 2021
Models Based on Statistical Thermodynamics

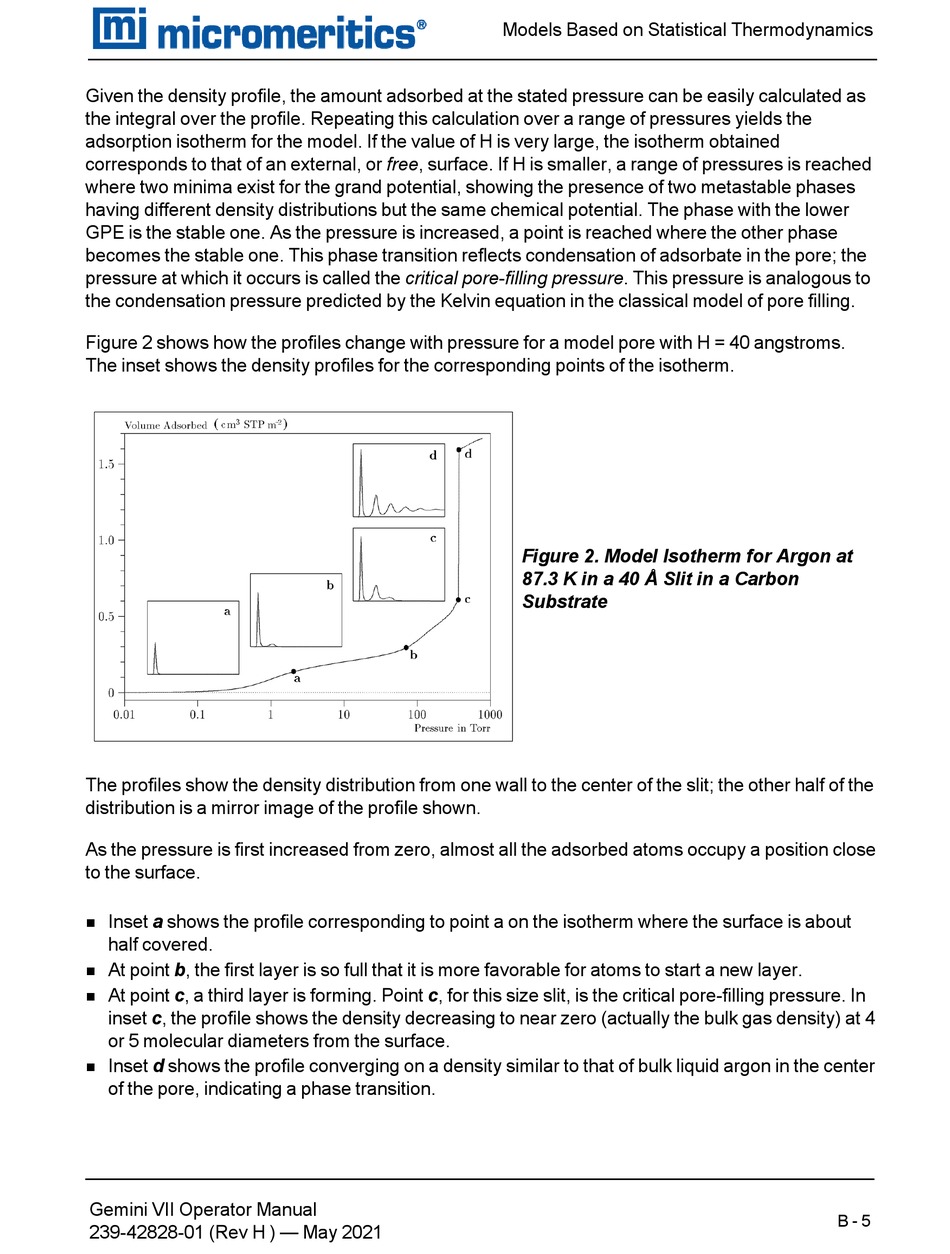

Figure 2. Model Isotherm for Argon at
