Front Components
Components
Dewar
Sample safety shield
Power indicator light
Balance port and balance
tube
P port and tube
0
Gemini VII Operator Manual
239-42828-01 (Rev H ) — May 2021
OMPONENTS
Description
For housing cryogens used for analysis. The Dewar rests on an
elevator.
Closes to cover the Dewar.
Blinks when power is applied to the analyzer; illuminates when
the analysis program is initiated and ready for operation.
The balance tube is identical to the sample tube. This design
negates free-space errors introduced by thermal gradient vari-
ations or by initial mis-measurement of free space.
Models 2390p and 2390t only. For measuring the saturation
pressure.

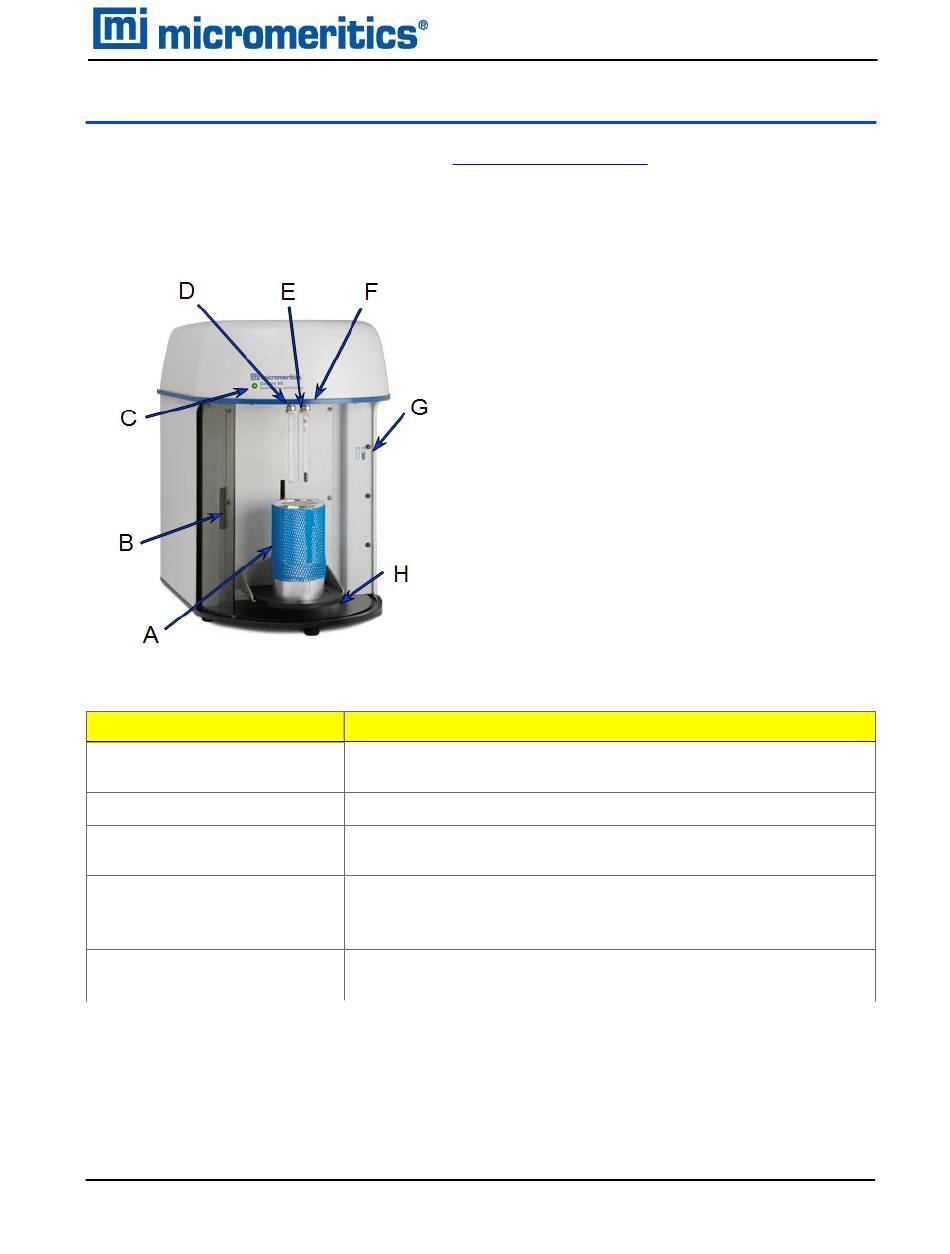

A. Dewar
B. Sample safety shield
C. Power indicator light
D. Balance port and balance tube
E. P port and tube
0
F. Sample port and sample tube
G. Tube position diagram
H. Elevator
