Micromeritics GEMINI VII Operator's Manual page 18

1 Analyzer Components
Front Components (continued)
Components
Sample port and sample
tube
Tube position diagram
Elevator

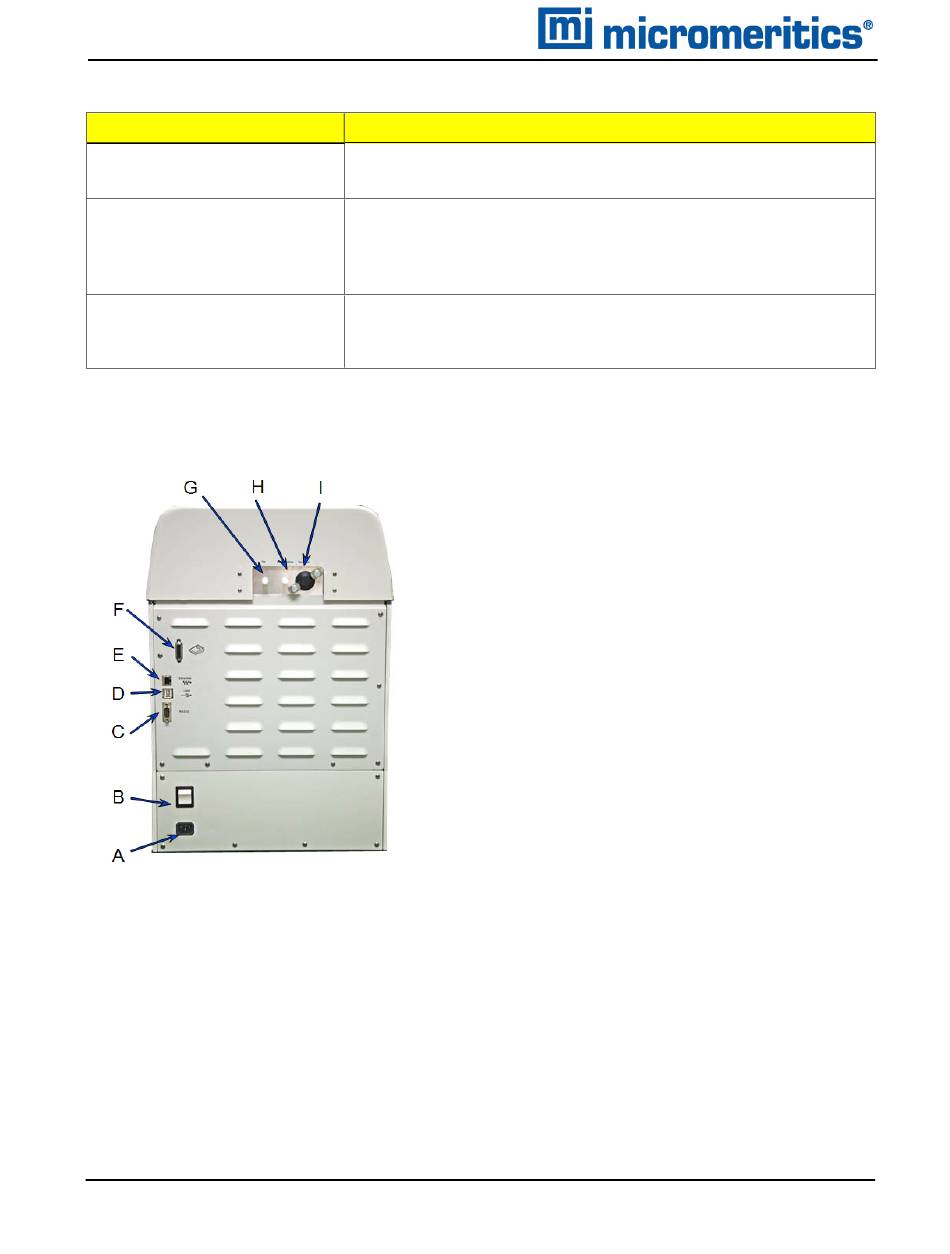

B P
ACK ANEL COMPONENTS
1 - 2
Description
Holds the material to be analyzed.
Diagram of the positions of the balance and sample tubes. The
empty tube represents the balance tube installed on the left port.
The filled tube represents the sample tube installed on the right
port.
Allows placement of the Dewar around the sample and P
tubes. The elevator is raised automatically when the analysis is
started and lowers automatically upon completion.
A. Power connector
B. Power switch
C. RS232 connector - for service personnel use
D. USB ports - not used
E. Ethernet port
F. Keypad connection - used only wit keypad con-
figurations
G. Helium inlet port for helium gas supply
H. Adsorptive gas inlet
I. Vacuum pump connector
Gemini VII Operator Manual
239-42828-01 (Rev H ) — May 2021
