Installation
"
20
3.2.4
Inlet and outlet runs

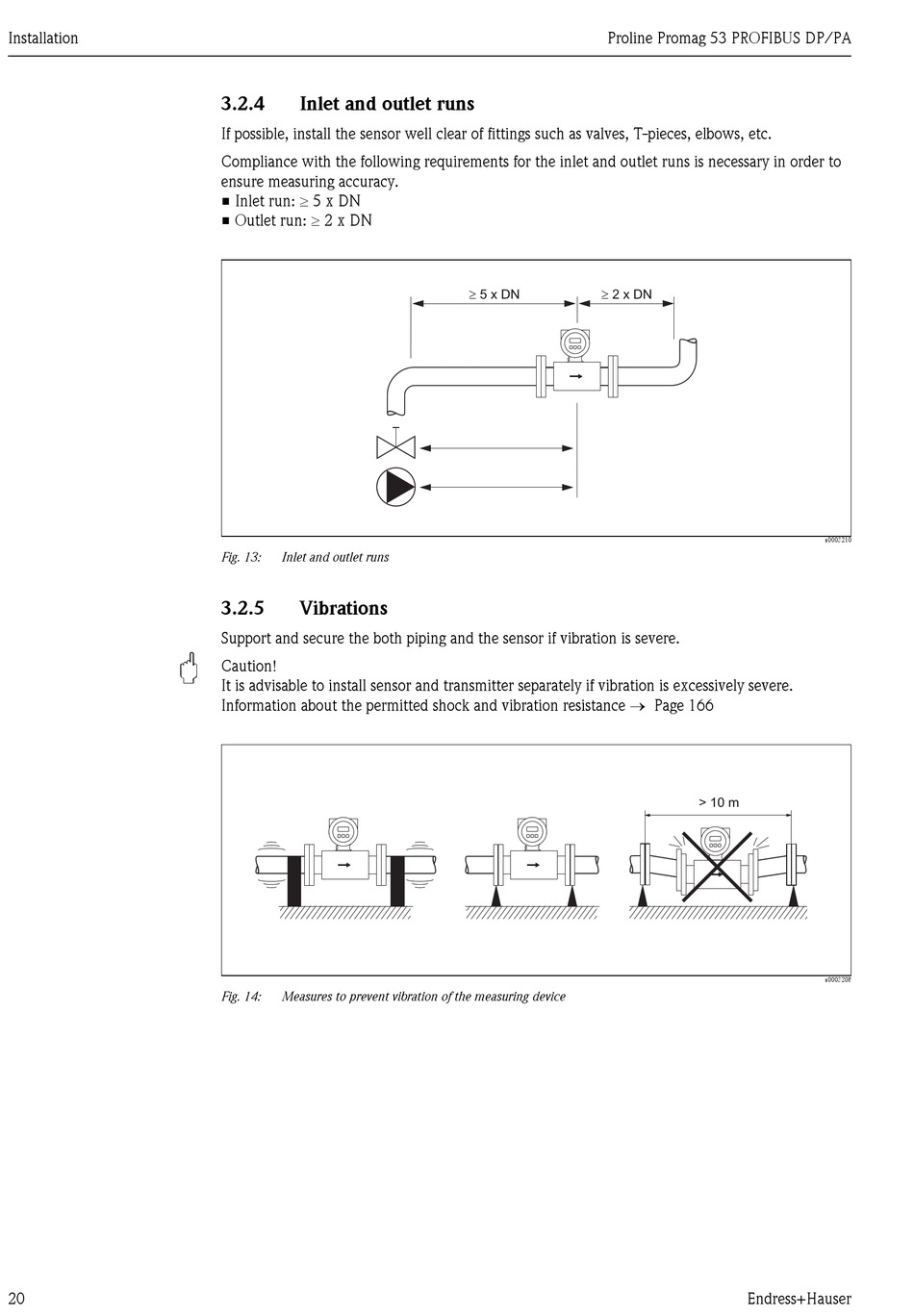

If possible, install the sensor well clear of fittings such as valves, T-pieces, elbows, etc.
Compliance with the following requirements for the inlet and outlet runs is necessary in order to
ensure measuring accuracy.
• Inlet run: ≥ 5 x DN
• Outlet run: ≥ 2 x DN
Fig. 13:
Inlet and outlet runs
3.2.5
Vibrations
Support and secure the both piping and the sensor if vibration is severe.
Caution!
It is advisable to install sensor and transmitter separately if vibration is excessively severe.
Information about the permitted shock and vibration resistance → Page 166
Fig. 14:
Measures to prevent vibration of the measuring device
Proline Promag 53 PROFIBUS DP/PA
³
³ 2 x DN
5 x DN
a0003210
> 10 m
a0003208
