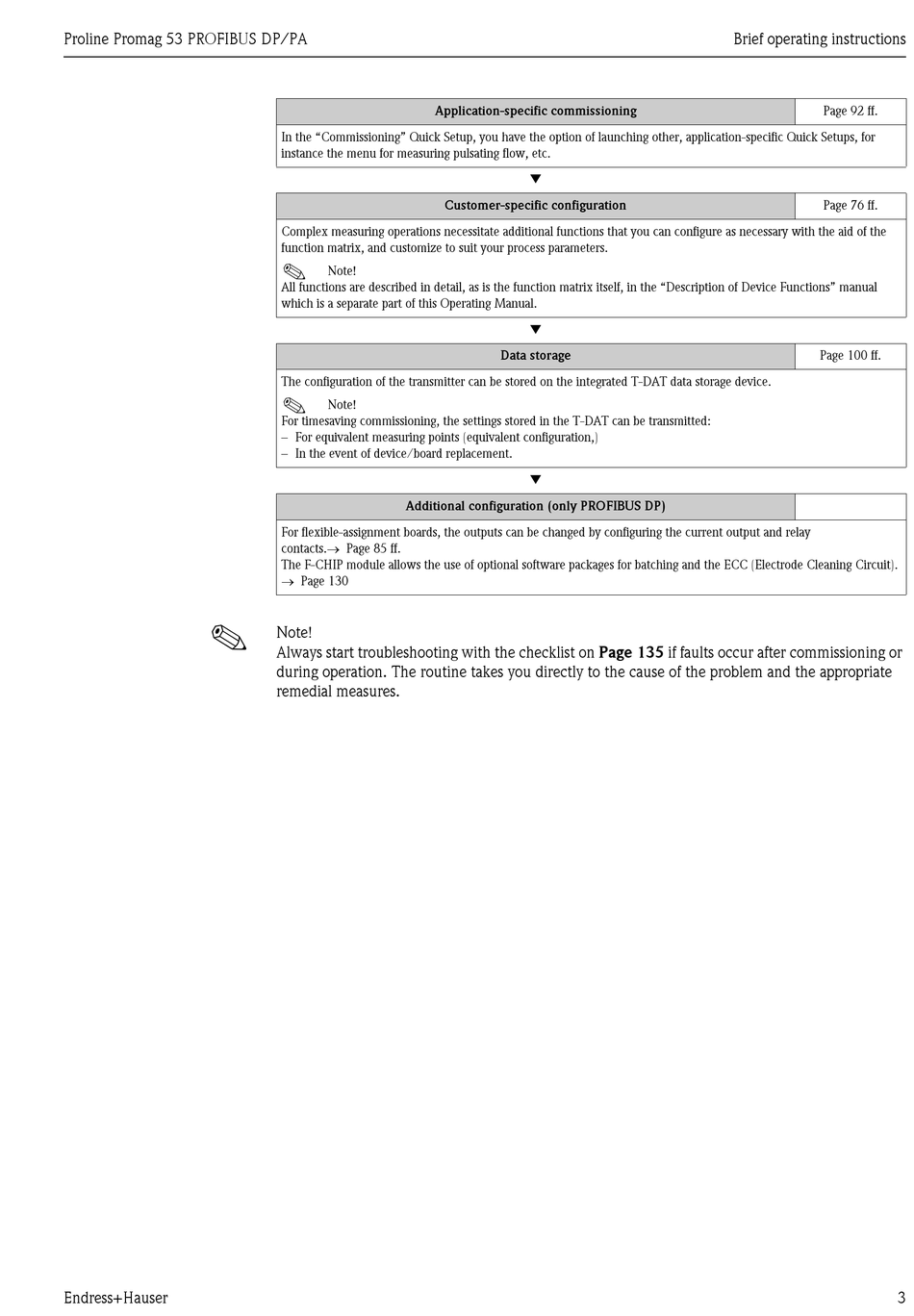

Endress+Hauser PROFI BUS Proline Promag 53 PROFIBUS DP Operating Manual page 3

Proline Promag 53 PROFIBUS DP/PA
!
Endress+Hauser
Application-specific commissioning
In the "Commissioning" Quick Setup, you have the option of launching other, application-specific Quick Setups, for
instance the menu for measuring pulsating flow, etc.
Customer-specific configuration
Complex measuring operations necessitate additional functions that you can configure as necessary with the aid of the
function matrix, and customize to suit your process parameters.
!
Note!
All functions are described in detail, as is the function matrix itself, in the "Description of Device Functions" manual
which is a separate part of this Operating Manual.
The configuration of the transmitter can be stored on the integrated T-DAT data storage device.
!
Note!
For timesaving commissioning, the settings stored in the T-DAT can be transmitted:
– For equivalent measuring points (equivalent configuration,)
– In the event of device/board replacement.
Additional configuration (only PROFIBUS DP)
For flexible-assignment boards, the outputs can be changed by configuring the current output and relay
contacts.→ Page 85 ff.
The F-CHIP module allows the use of optional software packages for batching and the ECC (Electrode Cleaning Circuit).
→ Page 130
Note!
Always start troubleshooting with the checklist on Page 135 if faults occur after commissioning or
during operation. The routine takes you directly to the cause of the problem and the appropriate
remedial measures.
▼
▼
Data storage
▼
Brief operating instructions
Page 92 ff.
Page 76 ff.
Page 100 ff.
