Controlling the batching processes using the local display

Filling processes can be carried out directly by means of the local display with the aid of the optional
"(Batching)" software package (F-CHIP, accessories → Page 132). Therefore, the device can be
fully deployed in the field as a "batch controller."
Procedure:
1. Configure all the required batching functions and assign the lower display info line (=
BATCHING KEYS) using the "Batch" Quick Setup menu (→ Page 95) or use the function
matrix ( → Page 76).
The following "softkeys" then appear on the bottom line of the local display → Fig. 46:
– START = left display key (S)
– PRESET = middle display key (O)
– MATRIX = right display key (F)
2. Press the "PRESET (O)" key. Various batching process functions requiring configuration will
now appear on the display:
"PRESET" → Initial settings for the batching process
No. Function
7200 BATCH SELECTOR
7203 BATCHING QUANTITY
7265 RESET TOTAL QUANTITY/
TOTALIZER
3. After exiting the PRESET menu, you can now start the batching process by pressing "START
(S)". New softkeys (STOP/HOLD or GO ON) now appear on the display. You can use these
to interrupt, continue or stop the batching process at any time. → Fig. 46
STOP (S) → Stops batching process
HOLD (O) → Interrupts batching process (softkey changes to "GO ON")
GO ON (O) → Continues batching process (softkey changes to "HOLD")
After the batch quantity is reached, the "START" or "PRESET" softkeys reappear on the
display.
+2.5 l
START PRESET
-

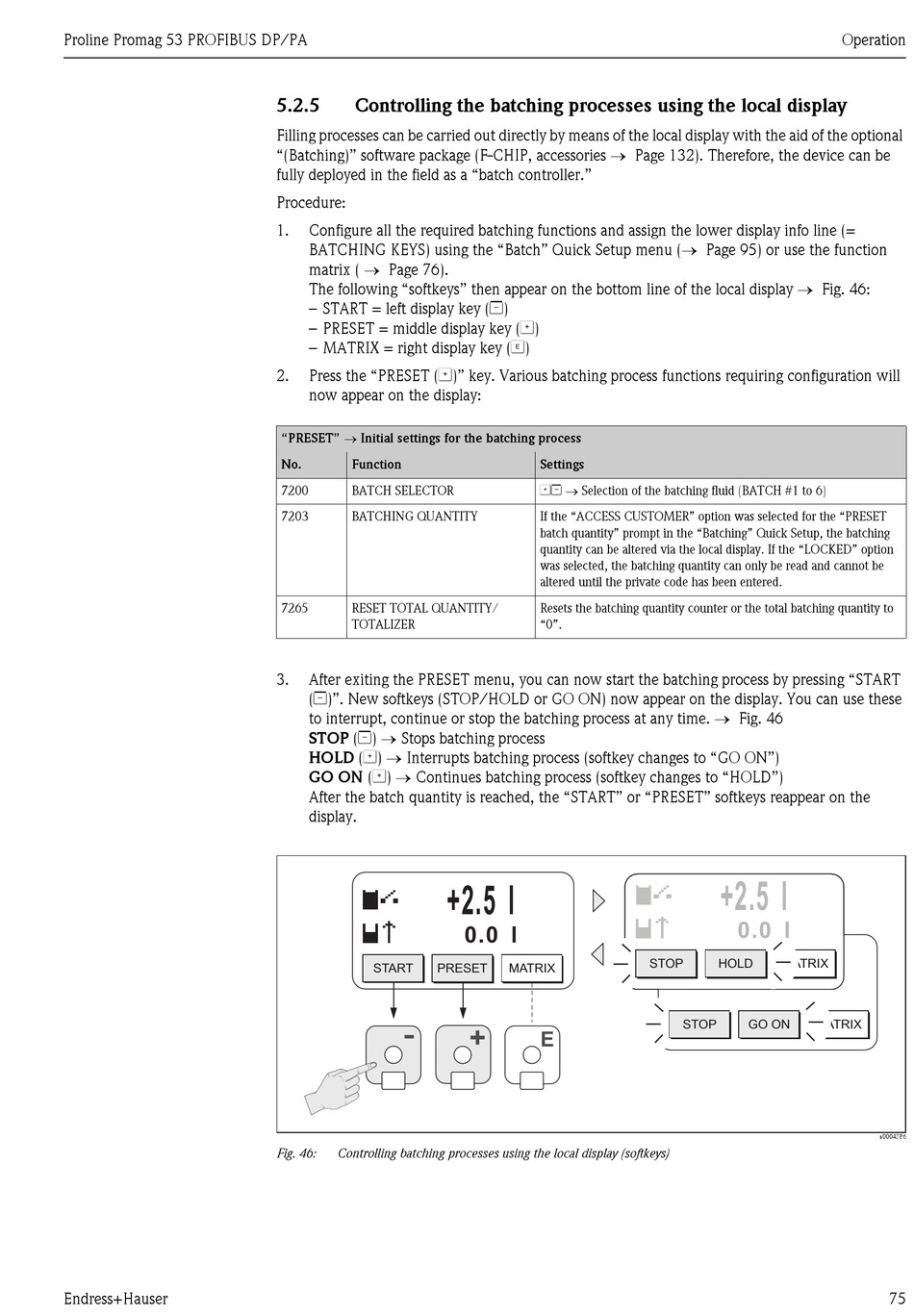

Fig. 46: Controlling batching processes using the local display (softkeys)
Settings
OS → Selection of the batching fluid (BATCH #1 to 6)
If the "ACCESS CUSTOMER" option was selected for the "PRESET
batch quantity" prompt in the "Batching" Quick Setup, the batching
quantity can be altered via the local display. If the "LOCKED" option
was selected, the batching quantity can only be read and cannot be
altered until the private code has been entered.
Resets the batching quantity counter or the total batching quantity to
"0".
0.0 l
MATRIX
+
E
+2.5 l +2.5 l
0.0 l 0.0 l 0.0 l
STOP HOLD MATRIX
STOP GO ON MATRIX
Operation
a0004386
