Wiring
Terminate the signal and coil current cables as shown in the figure below (Detail A).
Fit the fine-wire cores with cable end sleeves (Detail B).
"
Caution!
When fitting the connectors, pay attention to the following points:
• Signal cable → Make sure that the cable end ferrules do not touch the wire shield on the sensor side.
Minimum distance = 1 mm (exception "GND" = green cable).
• Coil current cable → Insulate one core of the three-core cable at the level of the core reinforcement; you only need two cores for the connection.
• On the sensor side, reverse both cable shields approx. 15 mm over the outer jacket. The strain relief ensures an electrical connection with the connection
housing.
80
15
A
GND
B
m
m = Red cable sleeve, Ø 1.0 mm
n = White cable sleeve, Ø 0.5 mm
* = Stripping for armored cables only
56

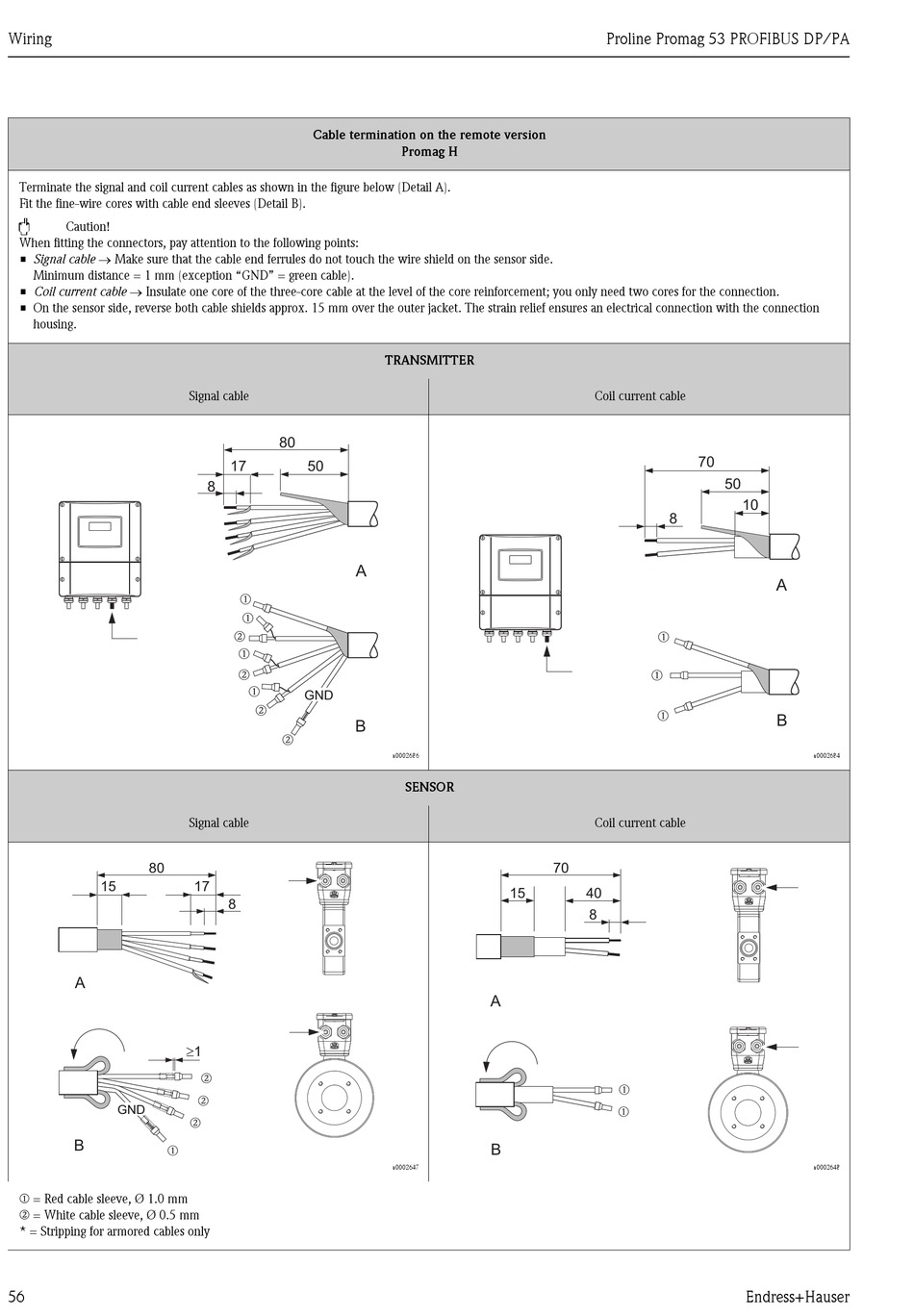

Cable termination on the remote version
