Proline Promag 53 PROFIBUS DP/PA
Endress+Hauser

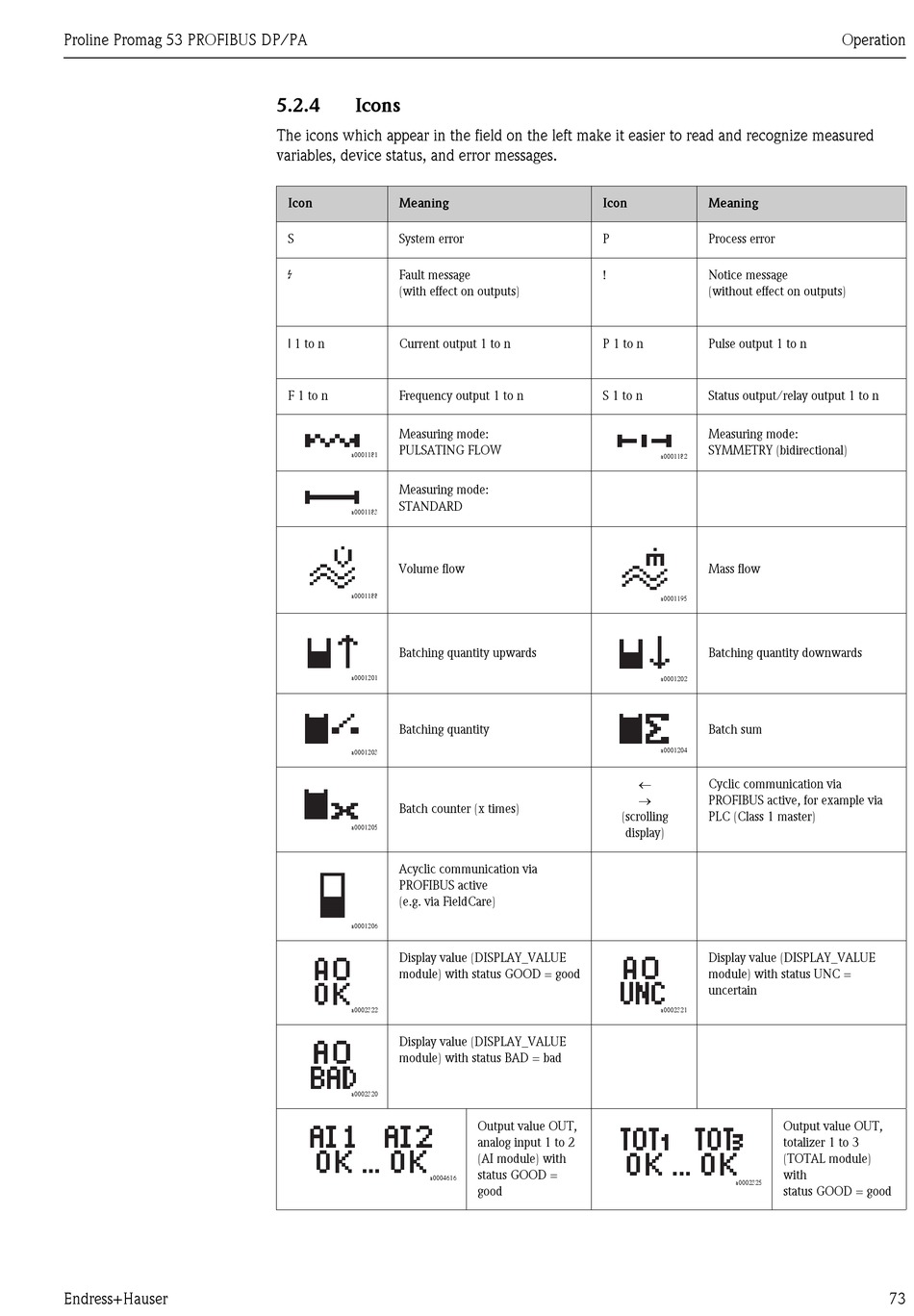

5.2.4

Icons

The icons which appear in the field on the left make it easier to read and recognize measured
variables, device status, and error messages.
Icon Meaning
S System error
$
Fault message
(with effect on outputs)
| 1 to n Current output 1 to n
F 1 to n Frequency output 1 to n
Measuring mode:
PULSATING FLOW
a0001181
Measuring mode:
STANDARD
a0001183
Volume flow
a0001188
Batching quantity upwards
a0001201
Batching quantity
a0001203
Batch counter (x times)
a0001205
Acyclic communication via
PROFIBUS active
(e.g. via FieldCare)
a0001206
Display value (DISPLAY_VALUE
module) with status GOOD = good
a0002322
Display value (DISPLAY_VALUE
module) with status BAD = bad
a0002320
a0004616
Icon
P
!
P 1 to n
S 1 to n
←
→
(scrolling
display)
Output value OUT,
analog input 1 to 2
(AI module) with
status GOOD =
good
Meaning
Process error
Notice message
(without effect on outputs)
Pulse output 1 to n
Status output/relay output 1 to n
Measuring mode:
SYMMETRY (bidirectional)
a0001182
Mass flow
a0001195
Batching quantity downwards
a0001202
Batch sum
a0001204
Cyclic communication via
PROFIBUS active, for example via
PLC (Class 1 master)
Display value (DISPLAY_VALUE
module) with status UNC =
uncertain
a0002321
Output value OUT,
totalizer 1 to 3
(TOTAL module)
with
a0002325
status GOOD = good
Operation
73
