KA01709D/06/EN/01.24-00
71654330
2024-05-17
Products
Brief Operating Instructions
Flowmeter
Proline 500 – digital
Modbus RS485 transmitter
with Coriolis sensor
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.

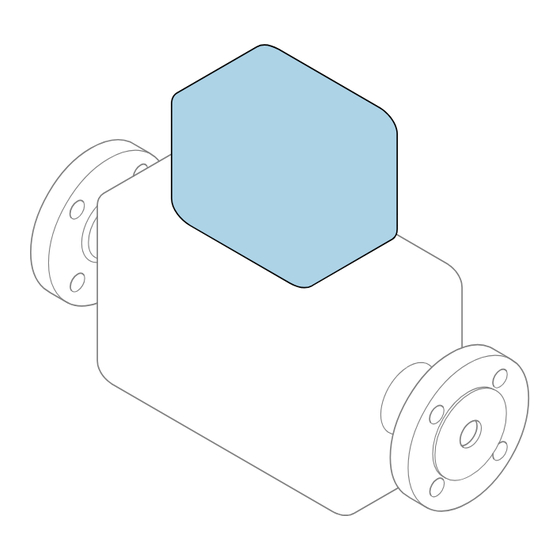

Brief Operating Instructions part 2 of 2: Transmitter
Contain information about the transmitter.
Brief Operating Instructions part 1 of 2: Sensor → 3
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Proline 500 digital
Summary of Contents for Endress+Hauser Proline 500 digital
- Page 1 Products Solutions Services KA01709D/06/EN/01.24-00 71654330 2024-05-17 Brief Operating Instructions Flowmeter Proline 500 – digital Modbus RS485 transmitter with Coriolis sensor These instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. Brief Operating Instructions part 2 of 2: Transmitter Contain information about the transmitter.
- Page 2 Flowmeter Proline 500 – digital Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
- Page 3 These Brief Operating Instructions are Brief Operating Instructions Part 2: Transmitter. The "Brief Operating Instructions Part 1: Sensor" are available via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App Detailed information about the device can be found in the Operating Instructions and the other documentation: • Internet: www.endress.com/deviceviewer •...
-
Page 4: Table Of Contents
Diagnostic information ............31 Endress+Hauser... -
Page 5: About This Document
Result of a step Visual inspection 1.1.3 Electrical symbols Symbol Meaning Symbol Meaning Direct current Alternating current Direct current and alternating current Ground connection A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system. Endress+Hauser... - Page 6 Allen key Open-ended wrench 1.1.6 Symbols in graphics Symbol Meaning Symbol Meaning 1, 2, 3,... Item numbers … Series of steps A, B, C, ... Views A-A, B-B, C-C, ... Sections Hazardous area Safe area (non-hazardous area) Flow direction Endress+Hauser...
-
Page 7: Safety Instructions
Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties. -
Page 8: Workplace Safety
The use of relevant industrial standards and guidelines that have been defined by national and international safety committees, such as IEC/ISA62443 or the IEEE, is recommended. This includes organizational security measures such as the assignment of access authorization as well as technical measures such as network segmentation. Endress+Hauser... -
Page 9: Product Description
Important components of a measuring instrument Electronics compartment cover Display module Transmitter housing Sensor with integrated ISEM electronics Table version with integrated transmitter Disposable measuring tube For detailed information on the product description, see the Operating Instructions for the device → 3 Endress+Hauser... -
Page 10: Mounting
‣ Avoid excessive mechanical stress. 4.2.1 Wall mounting Required tools: Drill with drill bit ⌀ 6.0 mm 17 (0.67) 5.8 (0.23) 5.8 (0.23) 149 (5.85) A0029054 2 Engineering unit mm (in) Depends on order code for "Transmitter housing" Endress+Hauser... -
Page 11: Transmitter Post-Installation Check
The post-installation check must always be performed after the following tasks: Mounting the transmitter housing: Wall mounting Is the measuring instrument undamaged (visual inspection)? Post mounting: Have the fixing screws been tightened with the correct tightening torque? Wall mounting: Are the fixing screws tightened securely? Endress+Hauser... -
Page 12: Electrical Connection
Cable diameter • Cable glands supplied: M20 × 1.5 with cable ⌀ 6 to 12 mm (0.24 to 0.47 in) • Spring-loaded terminals: Suitable for strands and strands with ferrules. Conductor cross-section 0.2 to 2.5 mm (24 to 12 AWG). Endress+Hauser... - Page 13 The sensor and transmitter, which are mounted in separate locations, are interconnected by a connecting cable. The cable is connected via the sensor connection housing and the transmitter housing. Terminal assignment and connection of the connecting cable: Proline 500 – digital → 16 Endress+Hauser...
- Page 14 Operational reliability of the measuring device could be compromised. ‣ Use suitable cable glands corresponding to the degree of protection. Remove dummy plug if present. If the measuring device is supplied without cable glands: Provide suitable cable gland for corresponding connecting cable. Endress+Hauser...
- Page 15 Flowmeter Proline 500 – digital Electrical connection If the measuring device is supplied with cable glands: Observe requirements for connecting cables → 12. Endress+Hauser...
-
Page 16: Connecting The Measuring Device
M12 socket for fitting the connecting cable to the transmitter housing Terminal connection for potential equalization (PE) Connecting cable with M12 plug and M12 socket M12 plug for fitting the connecting cable to the sensor Terminal connection for potential equalization (PE) Endress+Hauser... - Page 17 ISEM communication Black – – – Coding Plug/socket Socket A0053073 Cable colors of connecting cable Connection at the sensor Color Assignment Brown Supply voltage White Blue ISEM communication Black – – Coding Plug/socket Plug Cable colors of connecting cable Endress+Hauser...
- Page 18 Terminal connection for signal transmission, input/output; optional: connection for external WLAN antenna Protective earth (PE) TX 20 TX 20 10 (0.4) 22 mm 24 mm A0029597 Loosen the 4 fixing screws on the housing cover. Open the housing cover. Fold open the terminal cover. Endress+Hauser...
-
Page 19: Ensuring Potential Equalization
Risk of damaging the plastic transmitter. ‣ Tighten the fixing screws as per the tightening torque: 2.5 Nm (1.8 lbf ft) 11. Tighten the 4 fixing screws on the housing cover. Ensuring potential equalization 5.4.1 Requirements No special measures for potential equalization are required. Endress+Hauser... -
Page 20: Hardware Settings
Modbus master. All measuring devices are delivered from the factory with the device address 247 and with the "software addressing" address mode. Hardware addressing 1 2 3 4 5 6 7 8 Modbus address A0029677 Open the housing cover. Remove the display module. Fold open the terminal cover. Endress+Hauser... - Page 21 To avoid incorrect communication transmission caused by impedance mismatch, terminate the Modbus RS485 cable correctly at the start and end of the bus segment. A0029675 Open the housing cover. Remove the display module. Fold open the terminal cover. Switch DIP switch no. 3 to On. Endress+Hauser...
-
Page 22: Ensuring The Degree Of Protection
Are all cable glands installed, securely tightened and leak-tight? Cable run with "water trap" → 22? Is the terminal assignment correct ? Are dummy plugs inserted in unused cable entries and have transportation plugs been replaced with dummy plugs? Endress+Hauser... -
Page 23: Operation Options
Operation options Operation options Overview of operation options A0030213 Local operation via display module Computer with web browser or operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) Mobile handheld terminal with SmartBlue app Automation system (e.g. PLC) Endress+Hauser... -
Page 24: Structure And Function Of The Operating Menu
The individual parts of the operating menu are assigned to certain user roles (e.g. operator, maintenance etc.). Each user role contains typical tasks within the device life cycle. For detailed information on the operating philosophy, see the Operating Instructions for the device. → 3 Endress+Hauser... -
Page 25: Access To Operating Menu Via Local Display
2.6 Explanatory symbols for measured value 2: measured value type, measuring channel number Navigation view: picklist of a parameter 3.1 Navigation path and status area 3.2 Display area for navigation: designates the current parameter value Editing view: text editor with input mask Editing view: numeric editor with input mask Endress+Hauser... - Page 26 Moves the input position one position to the left. Switches to the selection of the correction tools. Deletes one character immediately to the left of the input position. Toggle • Between upper-case and lower-case letters • For entering numbers • For entering special characters Endress+Hauser...
- Page 27 If present, opens the help text for the function of the parameter. In wizards Opens the editing view of the parameter and confirms the parameter value In the text and numeric editor • Pressing the key briefly confirms your selection. • Pressing the key for 2 s confirms your entry. Endress+Hauser...
-
Page 28: Access To The Operating Menu Via The Operating Tool
For detailed information on access via FieldCare and DeviceCare, see the Operating Instructions for the device → 3 Access to the operating menu via the web server The operating menu can also be accessed via the web server. See the Operating Instructions for the device.→ 3 Endress+Hauser... -
Page 29: System Integration
Before commissioning the device: ‣ Make sure that the post-installation and post-connection checks have been performed successfully. • "Post-mounting check" checklist → 11 • "Post-connection check" checklist → 22 Setting the operating language Factory setting: English or ordered local language Endress+Hauser... -
Page 30: Configuring The Measuring Device
Configuration of the units for all measured values Medium selection Definition of the medium Communication Configuration of the communication interface I/O configuration User configurable I/O module Current input Configuration of the input/output type Status input Current output 1 to n Pulse/frequency/switch output 1 to n Endress+Hauser... -
Page 31: Protecting Settings From Unauthorized Access
Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display. The message about remedial measures can be called up from the diagnostic message, and contains important information on the fault. Endress+Hauser... - Page 32 The Diagnostic list submenu opens. Select the desired diagnostic event with or and press . The message about the remedial measures opens. Press + simultaneously. The message about the remedial measures closes. Endress+Hauser...
- Page 36 *71654330* 71654330 www.addresses.endress.com...
