Commissioning
98
6.3.4

Quick Setup "Communication"

To establish cyclic data transfer, various arrangements between the PROFIBUS master (Class 1) and
the measuring device (slave) are required which have to be taken into consideration when
configuring various functions. These functions can be configured quickly and easily by means of the
"Communication" Quick Setup. The following table explains the parameter configuration options
in more detail.
XXX.XXX.XX
Esc
-
HOME-POSITION

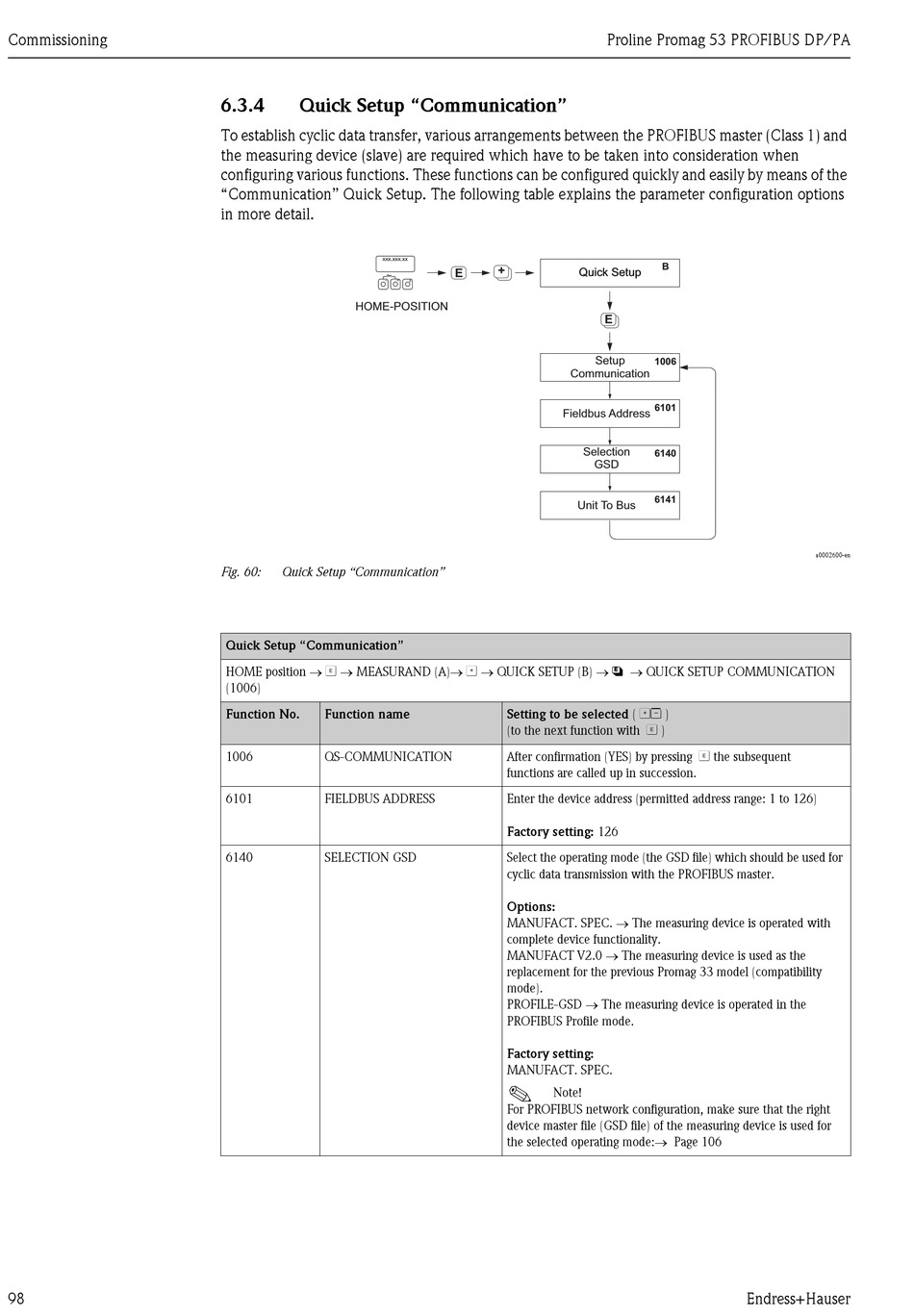

Fig. 60: Quick Setup "Communication"
Quick Setup "Communication"
HOME position → F → MEASURAND (A)→ O → QUICK SETUP (B) → N → QUICK SETUP COMMUNICATION
(1006)
Function No. Function name
1006 QS-COMMUNICATION
6101 FIELDBUS ADDRESS
6140 SELECTION GSD
+ +
E
+
E
Fieldbus Address
Setting to be selected ( OS )
(to the next function with F )
After confirmation (YES) by pressing F the subsequent
functions are called up in succession.
Enter the device address (permitted address range: 1 to 126)
Factory setting: 126
Select the operating mode (the GSD file) which should be used for
cyclic data transmission with the PROFIBUS master.
Options:
MANUFACT. SPEC. → The measuring device is operated with
complete device functionality.
MANUFACT V2.0 → The measuring device is used as the
replacement for the previous Promag 33 model (compatibility
mode).
PROFILE-GSD → The measuring device is operated in the
PROFIBUS Profile mode.
Factory setting:
MANUFACT. SPEC.
!
Note!
For PROFIBUS network configuration, make sure that the right
device master file (GSD file) of the measuring device is used for
the selected operating mode:→ Page 106
Proline Promag 53 PROFIBUS DP/PA
B
Quick Setup Quick Setup
+ E
Setup 1006
Communication
6101
Selection 6140
GSD
6141
Unit To Bus
a0002600-en
