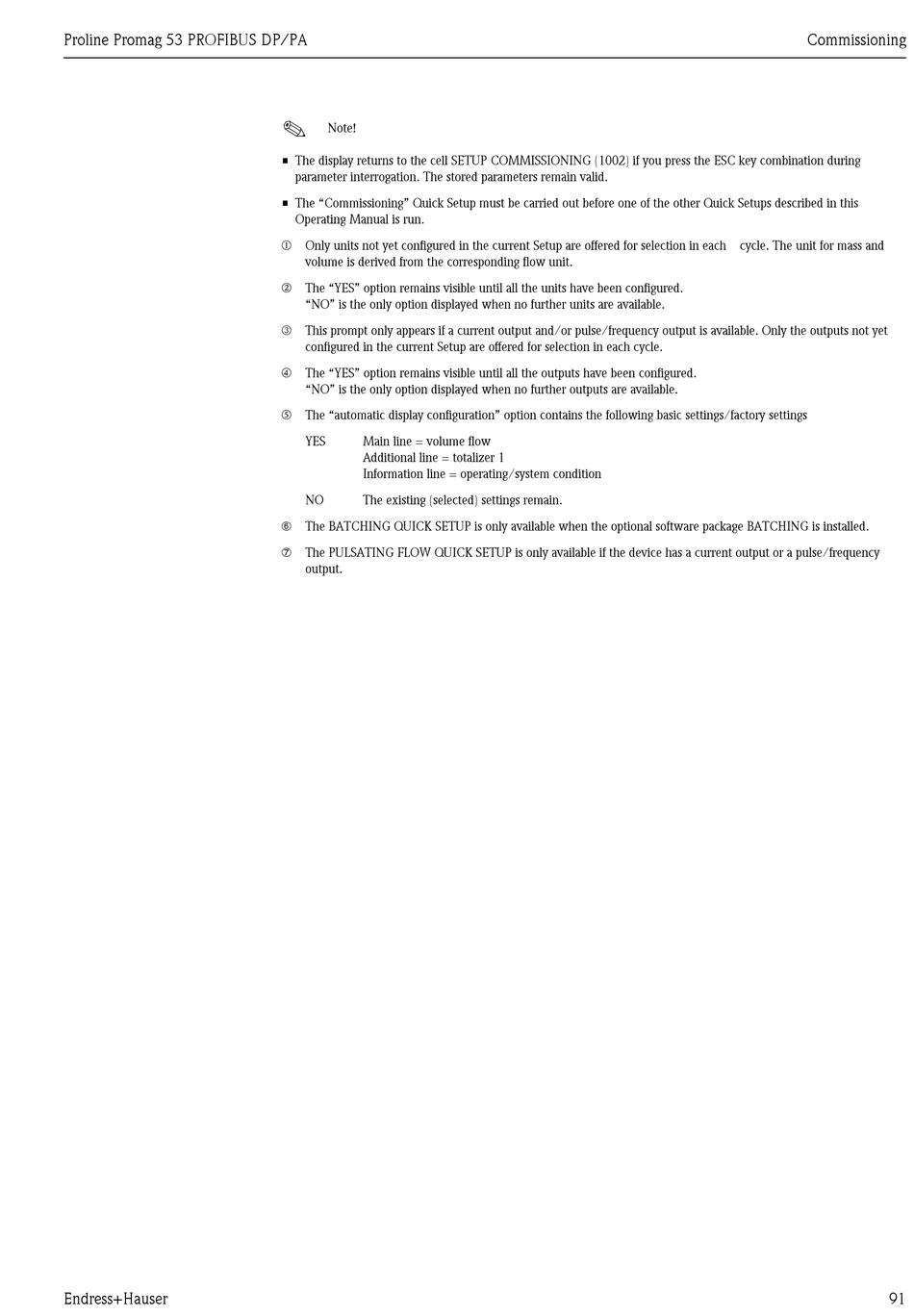

Proline Promag 53 PROFIBUS DP/PA
Endress+Hauser
!
Note!
• The display returns to the cell SETUP COMMISSIONING (1002) if you press the ESC key combination during
parameter interrogation. The stored parameters remain valid.
• The "Commissioning" Quick Setup must be carried out before one of the other Quick Setups described in this
Operating Manual is run.
m
Only units not yet configured in the current Setup are offered for selection in each cycle. The unit for mass and
volume is derived from the corresponding flow unit.
n
The "YES" option remains visible until all the units have been configured.
"NO" is the only option displayed when no further units are available.
o
This prompt only appears if a current output and/or pulse/frequency output is available. Only the outputs not yet
configured in the current Setup are offered for selection in each cycle.
p
The "YES" option remains visible until all the outputs have been configured.
"NO" is the only option displayed when no further outputs are available.
q
The "automatic display configuration" option contains the following basic settings/factory settings
YES Main line = volume flow
Additional line = totalizer 1
Information line = operating/system condition
NO The existing (selected) settings remain.
➅
The BATCHING QUICK SETUP is only available when the optional software package BATCHING is installed.
➆
The PULSATING FLOW QUICK SETUP is only available if the device has a current output or a pulse/frequency
output.
Commissioning
91
