Operation
!
76
5.3

Brief Operating Manual to the function matrix

Note!
• Be certain to observe the general notes → Page 77
• Function descriptions → see the "Description of Device Functions" manual
HOME position → F → Entry into the function matrix
1.
2. Select a block (e.g. OUTPUTS)
3. Select a group (e.g. CURRENT OUTPUT 1)
4. Select a function group (e.g. CONFIGURATION)
5. Select a function (e.g. TIME CONSTANT)
Change parameter/enter numerical values:
OS → Select or enter enable code, parameters, numerical values
F → Save your entries
6. Exit the function matrix:
– Press and hold down the Esc key (X) for longer than 3 seconds → HOME position
– Repeatedly press the Esc key (X) → Return step-by-step to HOME position
Esc
-
+
➀
E
➁
+
–

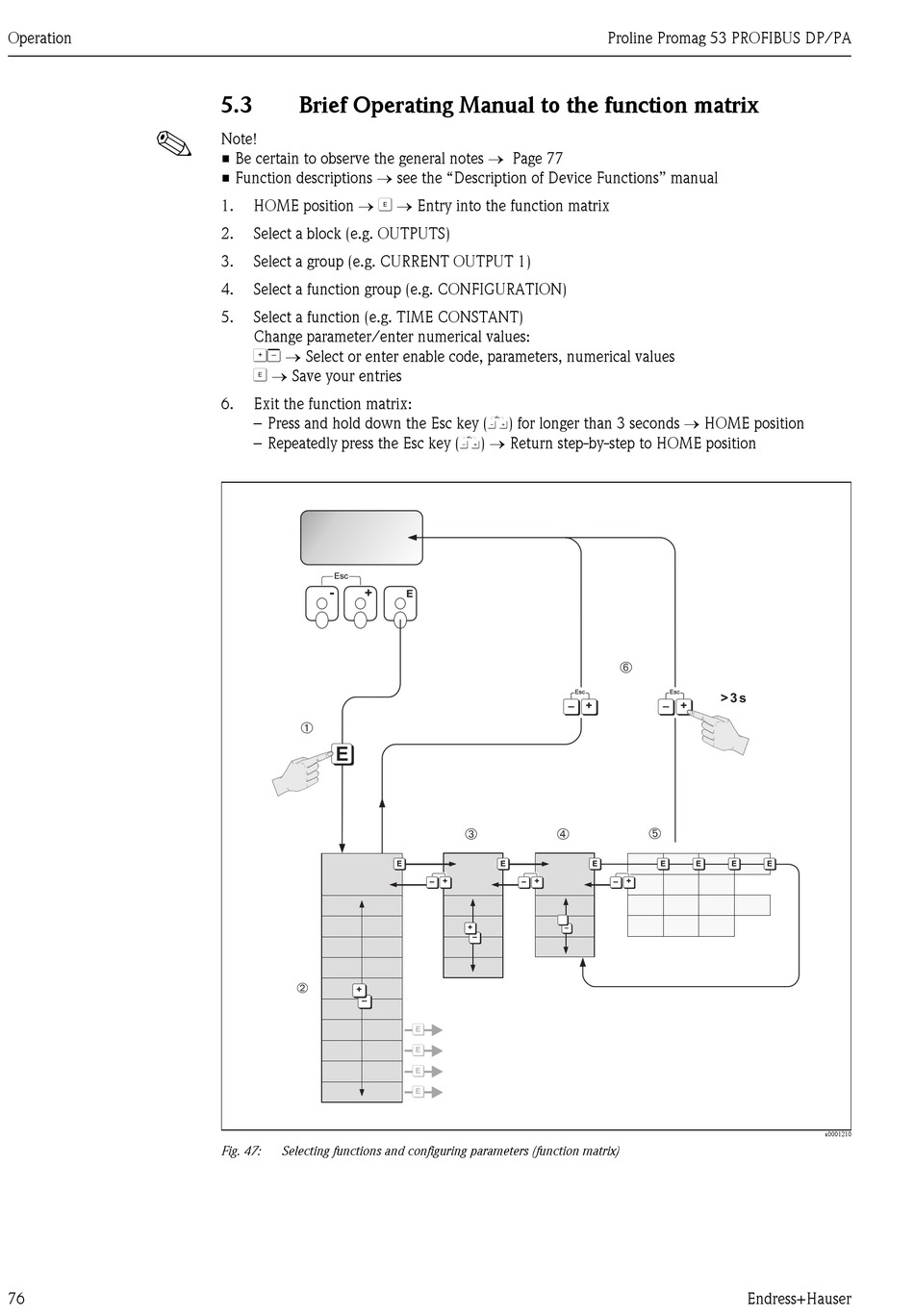

Fig. 47: Selecting functions and configuring parameters (function matrix)
E
–
➂ ➃
E E
+ +
– –
+
–
–
E
E
E
E
Proline Promag 53 PROFIBUS DP/PA
➅
Esc Esc
> 3 s
+ – +
➄
E E E E
+
–
Endress+Hauser
E
a0001210
