Installing the Promag H sensor

The Promag H is supplied to order, with or without pre-installed process connections. Pre-installed
process connections are secured to the sensor with 4 hex-head screws.
Caution!
The sensor might require support or additional attachments, depending on the application and the
length of the piping run. When plastic process connections are used, the sensor must be additionally
supported mechanically. A wall-mounting kit can be ordered separately from Endress+Hauser as an
accessory. → Page 133
DN 2...25

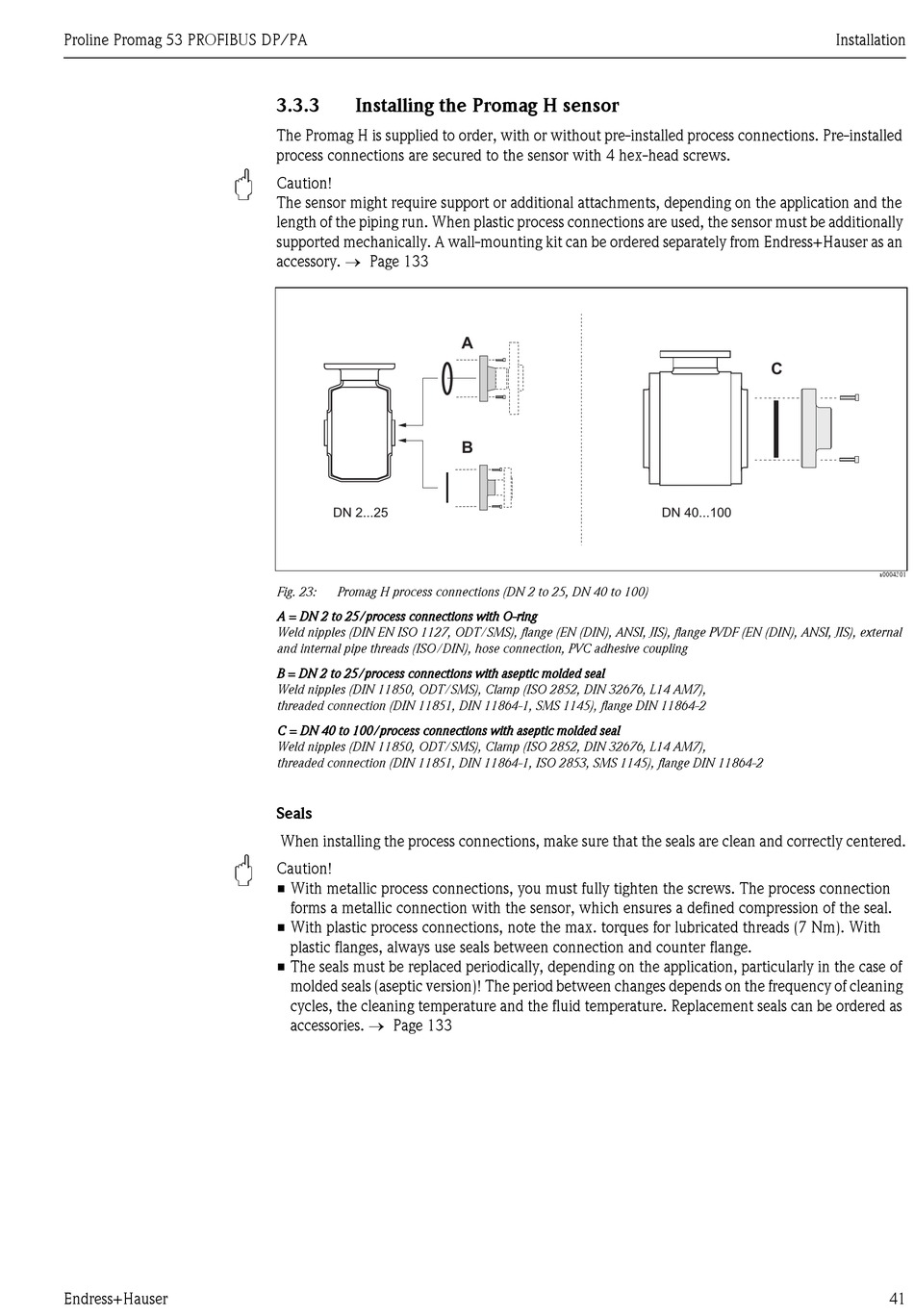

Fig. 23: Promag H process connections (DN 2 to 25, DN 40 to 100)
A = DN 2 to 25/process connections with O-ring
Weld nipples (DIN EN ISO 1127, ODT/SMS), flange (EN (DIN), ANSI, JIS), flange PVDF (EN (DIN), ANSI, JIS), external
and internal pipe threads (ISO/DIN), hose connection, PVC adhesive coupling
B = DN 2 to 25/process connections with aseptic molded seal
Weld nipples (DIN 11850, ODT/SMS), Clamp (ISO 2852, DIN 32676, L14 AM7),
threaded connection (DIN 11851, DIN 11864-1, SMS 1145), flange DIN 11864-2
C = DN 40 to 100/process connections with aseptic molded seal
Weld nipples (DIN 11850, ODT/SMS), Clamp (ISO 2852, DIN 32676, L14 AM7),
threaded connection (DIN 11851, DIN 11864-1, ISO 2853, SMS 1145), flange DIN 11864-2
Seals
When installing the process connections, make sure that the seals are clean and correctly centered.
Caution!
• With metallic process connections, you must fully tighten the screws. The process connection
forms a metallic connection with the sensor, which ensures a defined compression of the seal.
• With plastic process connections, note the max. torques for lubricated threads (7 Nm). With
plastic flanges, always use seals between connection and counter flange.
• The seals must be replaced periodically, depending on the application, particularly in the case of
molded seals (aseptic version)! The period between changes depends on the frequency of cleaning
cycles, the cleaning temperature and the fluid temperature. Replacement seals can be ordered as
accessories. → Page 133
A
B
C
DN 40...100
