Proline Promag 53 PROFIBUS DP/PA
Endress+Hauser
5.2

Local display

5.2.1

Display and operating elements

The local display enables you to read all important parameters directly at the measuring point and
configure the device using the "Quick Setup" or the function matrix.
The display consists of four lines; this is where measured values and/or status variables (direction
of flow, empty pipe, bar graph, etc.) are displayed. You can change the assignment of display lines
to different variables to suit your needs and preferences (→ see the "Description of Device
Functions" manual).
1
2

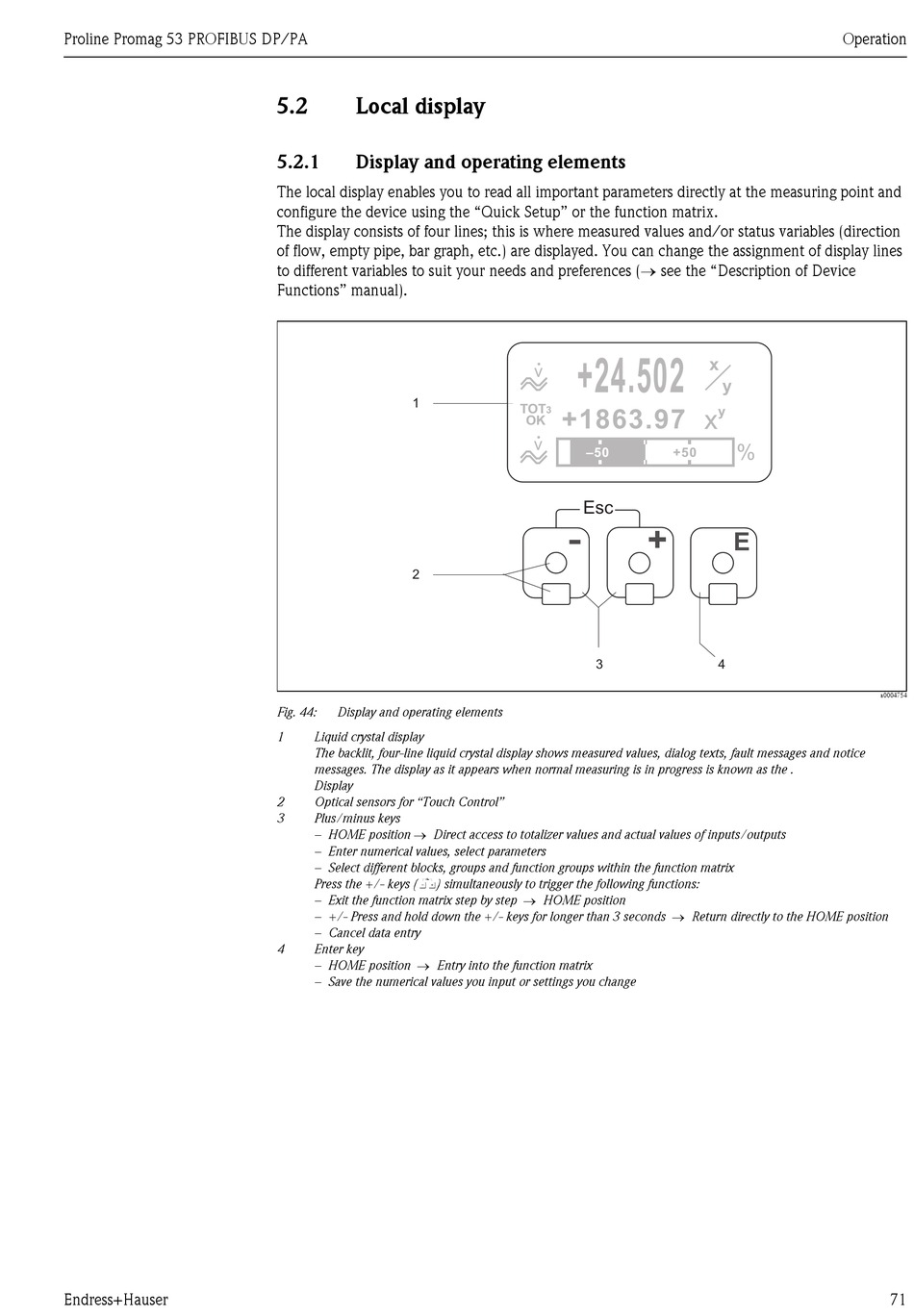

Fig. 44: Display and operating elements
1 Liquid crystal display
The backlit, four-line liquid crystal display shows measured values, dialog texts, fault messages and notice
messages. The display as it appears when normal measuring is in progress is known as the .
Display
2 Optical sensors for "Touch Control"
3 Plus/minus keys
– HOME position → Direct access to totalizer values and actual values of inputs/outputs
– Enter numerical values, select parameters
– Select different blocks, groups and function groups within the function matrix
Press the +/- keys ( X) simultaneously to trigger the following functions:
– Exit the function matrix step by step → HOME position
– +/- Press and hold down the +/- keys for longer than 3 seconds → Return directly to the HOME position
– Cancel data entry
4 Enter key
– HOME position → Entry into the function matrix
– Save the numerical values you input or settings you change
+24.502 +24.502
v v
TOT TOT
+1863.97 +1863.97
3 3
OK OK
v v
–50 –50 +50 +50
Esc
+
-
3
Operation
x x
y y
y y
x x
% %
E
4
a0004754
