Proline Promag 53 PROFIBUS DP/PA

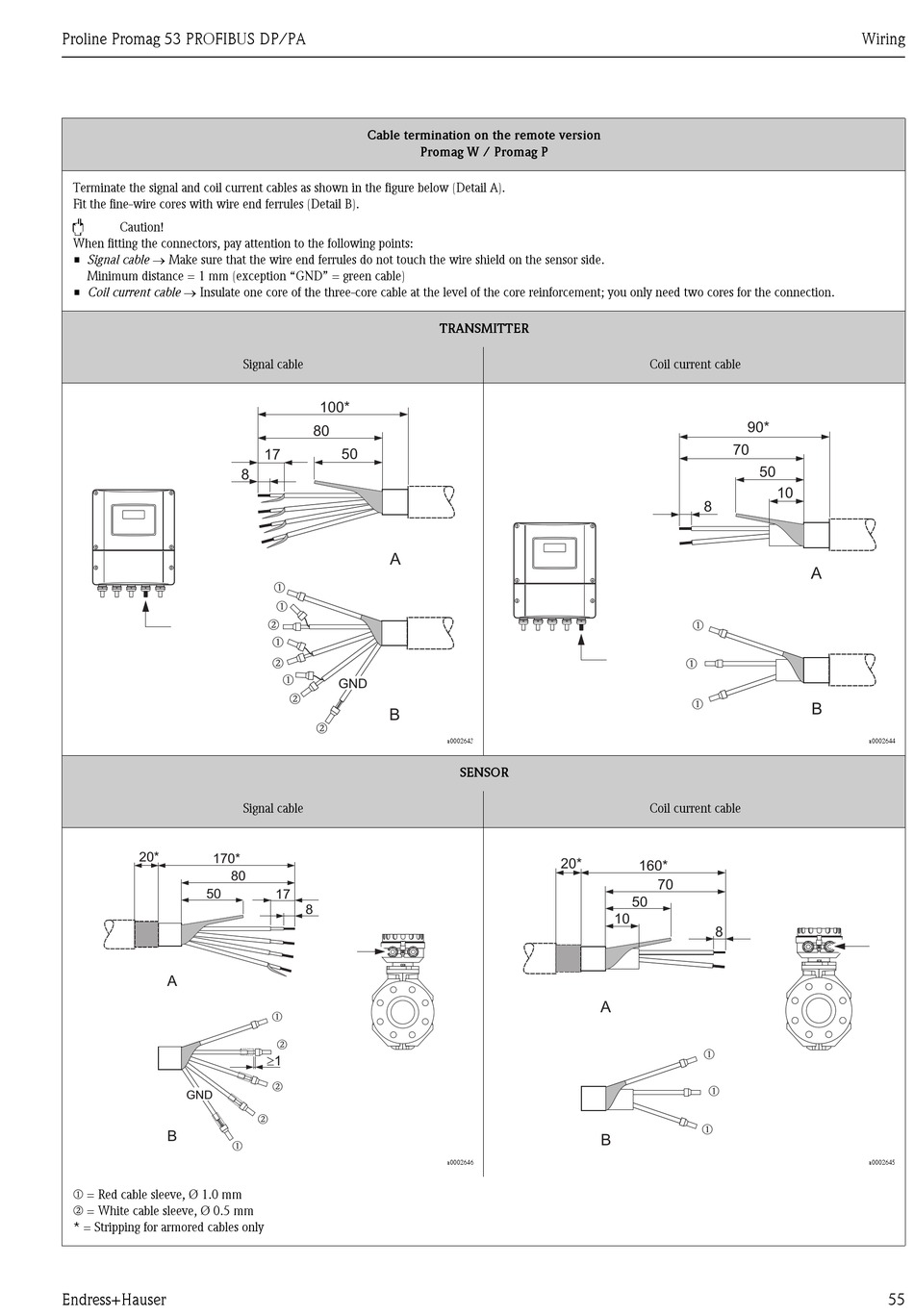

Terminate the signal and coil current cables as shown in the figure below (Detail A).
Fit the fine-wire cores with wire end ferrules (Detail B).
"
Caution!
When fitting the connectors, pay attention to the following points:
• Signal cable → Make sure that the wire end ferrules do not touch the wire shield on the sensor side.
Minimum distance = 1 mm (exception "GND" = green cable)
• Coil current cable → Insulate one core of the three-core cable at the level of the core reinforcement; you only need two cores for the connection.
20*
170*
80
50
A
GND
B
m
m = Red cable sleeve, Ø 1.0 mm
n = White cable sleeve, Ø 0.5 mm
* = Stripping for armored cables only
Endress+Hauser
Cable termination on the remote version
Signal cable
100*
80
17 50
8
A
m
m
n
m
n
m
GND
n
B
n
Signal cable
17
8
m
n
³ 1
n
n
Promag W / Promag P
TRANSMITTER
a0002643
SENSOR
20*
a0002646
Coil current cable
90*
70
50
8
m
m
m
Coil current cable
160*
70
50
10
8
A
m
m
m
B
Wiring
10
A
B
a0002644
a0002645
