Commissioning
94

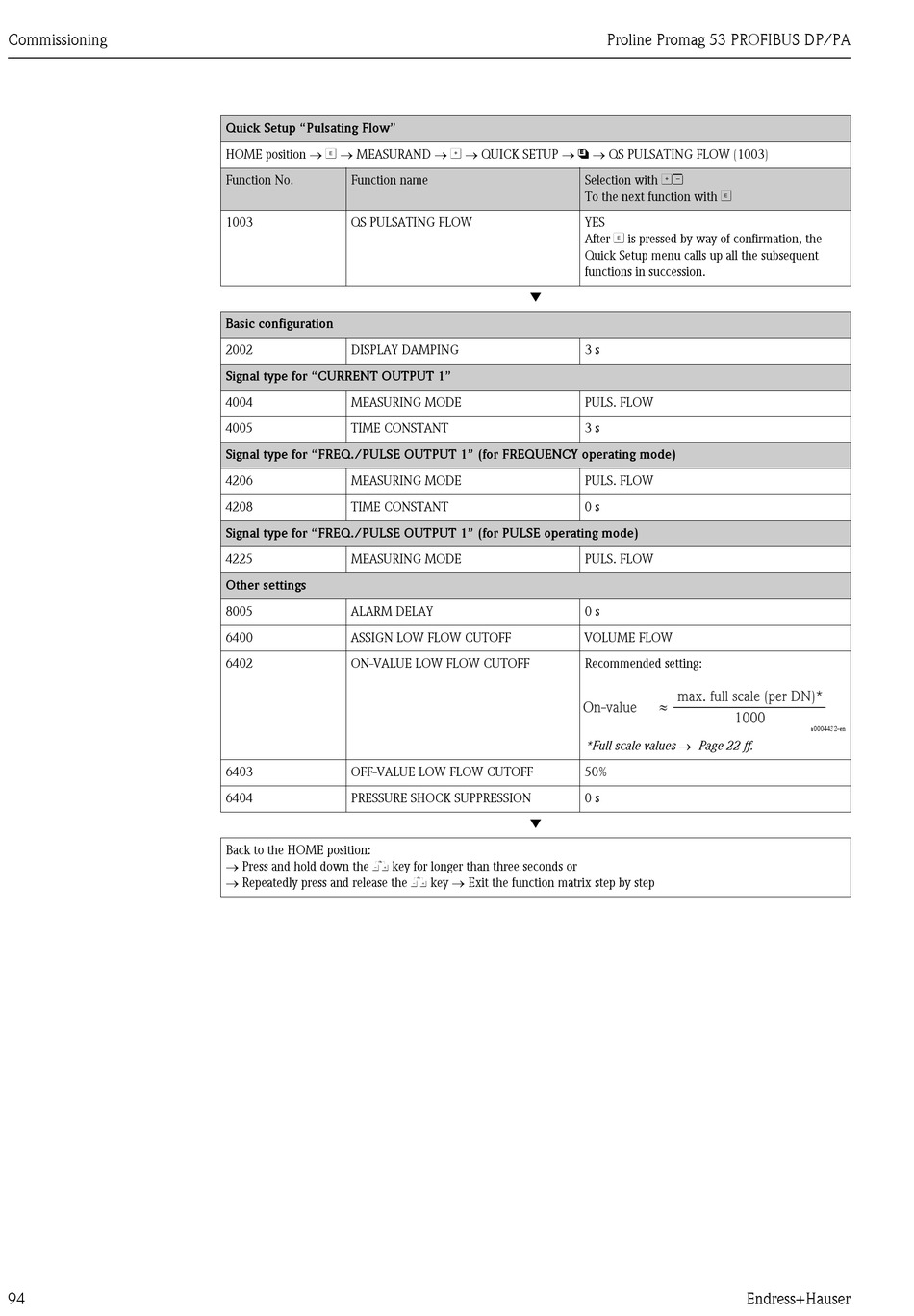

Quick Setup "Pulsating Flow"
HOME position → F → MEASURAND → O → QUICK SETUP → N→ QS PULSATING FLOW (1003)
Function No.
Function name
1003
QS PULSATING FLOW
Basic configuration
2002
DISPLAY DAMPING
Signal type for "CURRENT OUTPUT 1"
4004
MEASURING MODE
4005
TIME CONSTANT
Signal type for "FREQ./PULSE OUTPUT 1" (for FREQUENCY operating mode)
4206
MEASURING MODE
4208
TIME CONSTANT
Signal type for "FREQ./PULSE OUTPUT 1" (for PULSE operating mode)
4225
MEASURING MODE
Other settings
8005
ALARM DELAY
6400
ASSIGN LOW FLOW CUTOFF
6402
ON-VALUE LOW FLOW CUTOFF
6403
OFF-VALUE LOW FLOW CUTOFF
6404
PRESSURE SHOCK SUPPRESSION
Back to the HOME position:
→ Press and hold down the X key for longer than three seconds or
→ Repeatedly press and release the X key → Exit the function matrix step by step
Proline Promag 53 PROFIBUS DP/PA
Selection with OS
To the next function with F
YES
After F is pressed by way of confirmation, the
Quick Setup menu calls up all the subsequent
functions in succession.
▼
3 s
PULS. FLOW
3 s
PULS. FLOW
0 s
PULS. FLOW
0 s
VOLUME FLOW
Recommended setting:
max. full scale (per DN)*
»
On-value
*Full scale values → Page 22 ff.
50%
0 s
▼
1000
a0004432-en
