Proline Promag 53 PROFIBUS DP/PA
!
Endress+Hauser

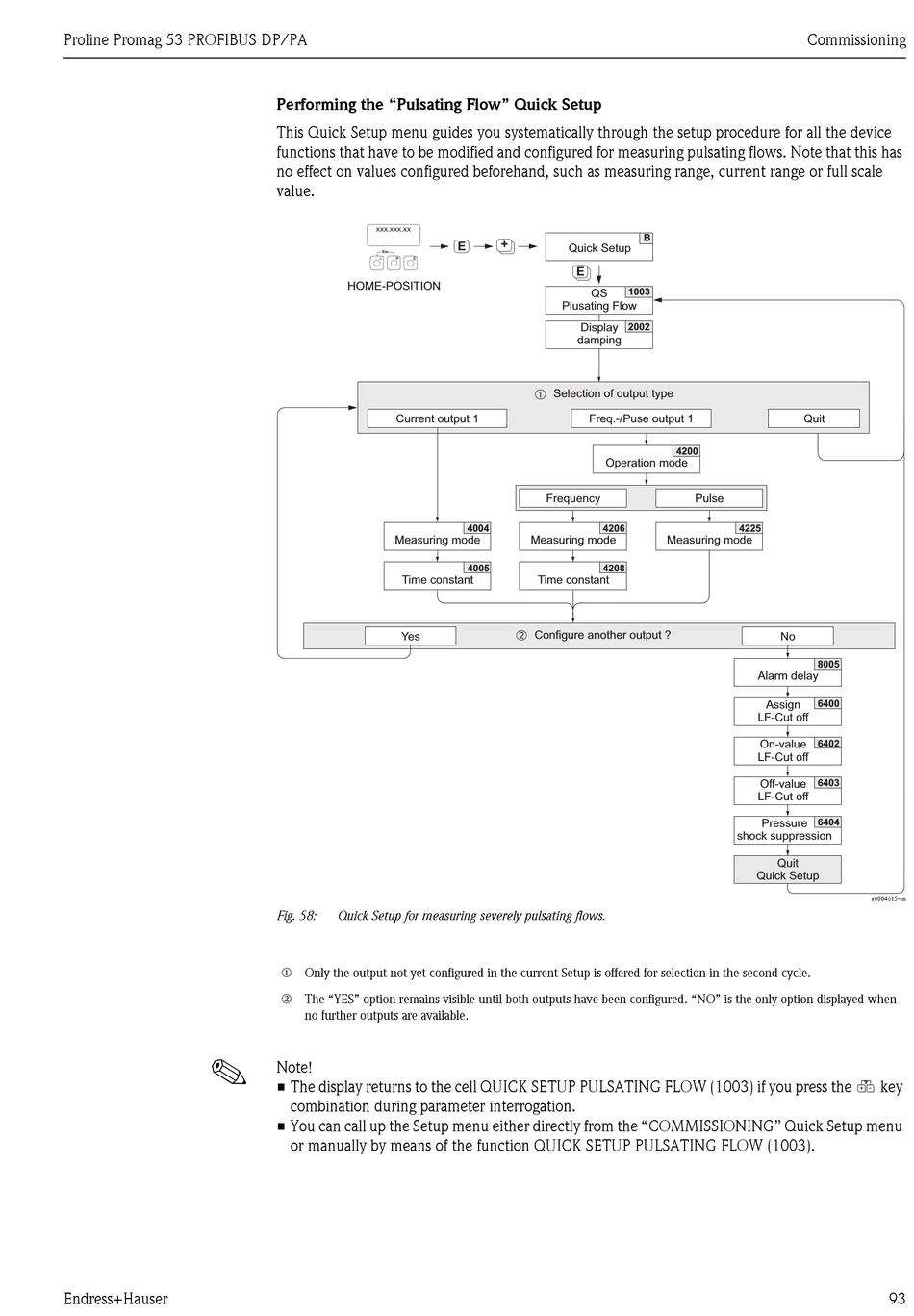

Performing the "Pulsating Flow" Quick Setup
This Quick Setup menu guides you systematically through the setup procedure for all the device
functions that have to be modified and configured for measuring pulsating flows. Note that this has
no effect on values configured beforehand, such as measuring range, current range or full scale
value.
XXX.XXX.XX
Esc
+
-
E
HOME-POSITION
Current output 1
Measuring mode
Time constant
Yes
Fig. 58: Quick Setup for measuring severely pulsating flows.
m Only the output not yet configured in the current Setup is offered for selection in the second cycle.
n The "YES" option remains visible until both outputs have been configured. "NO" is the only option displayed when
no further outputs are available.
Note!
• The display returns to the cell QUICK SETUP PULSATING FLOW (1003) if you press the Q key
combination during parameter interrogation.
• You can call up the Setup menu either directly from the "COMMISSIONING" Quick Setup menu
or manually by means of the function QUICK SETUP PULSATING FLOW (1003).
+ +
E
Quick Setup
+ E
1003
QS
Plusating Flow
2002
Display
damping
➀
Selection of output type
Freq.-/Puse output 1
Operation mode
Frequency
4004 4206
Measuring mode
4005
4208
Time constant
➁
Configure another output ?
Commissioning
B
Quit
4200
Pulse
4225
Measuring mode
No
Alarm delay
Assign
LF-Cut off
On-value
LF-Cut off
Off-value
LF-Cut off
Pressure
shock suppression
Quit
Quick Setup
8005
6400
6402
6403
6404
a0004615-en
