Installation
"
46
3.3.6

Installing the wall-mount housing

There are various ways of installing the wall-mount housing:
• Mounted directly on the wall
• Installation in control panel (separate mounting set, accessories)→ Page 47
• Pipe mounting (separate mounting set, accessories) → Page 47
Caution!
• Make sure that ambient temperature does not exceed the permissible range
(-20 to +60°C, optional: -40 to +60°C). Install the device in a location that is in the shade. Avoid
direct sunlight.
• Always install the wall-mount housing in such a way that the cable entries are pointing down.
Mounted directly on the wall
1. Drill the holes as illustrated in the diagram.
2. Remove the cover of the connection compartment (a).
3. Push the two securing screws (b) through the appropriate bores (c) in the housing.
– Securing screws (M6): max. Ø 6.5 mm (0.26")
– Screw head: max. Ø 10.5 mm (0.41")
4. Secure the transmitter housing to the wall as indicated.
5. Screw the cover of the connection compartment (a) firmly onto the housing.
90 (3.54)

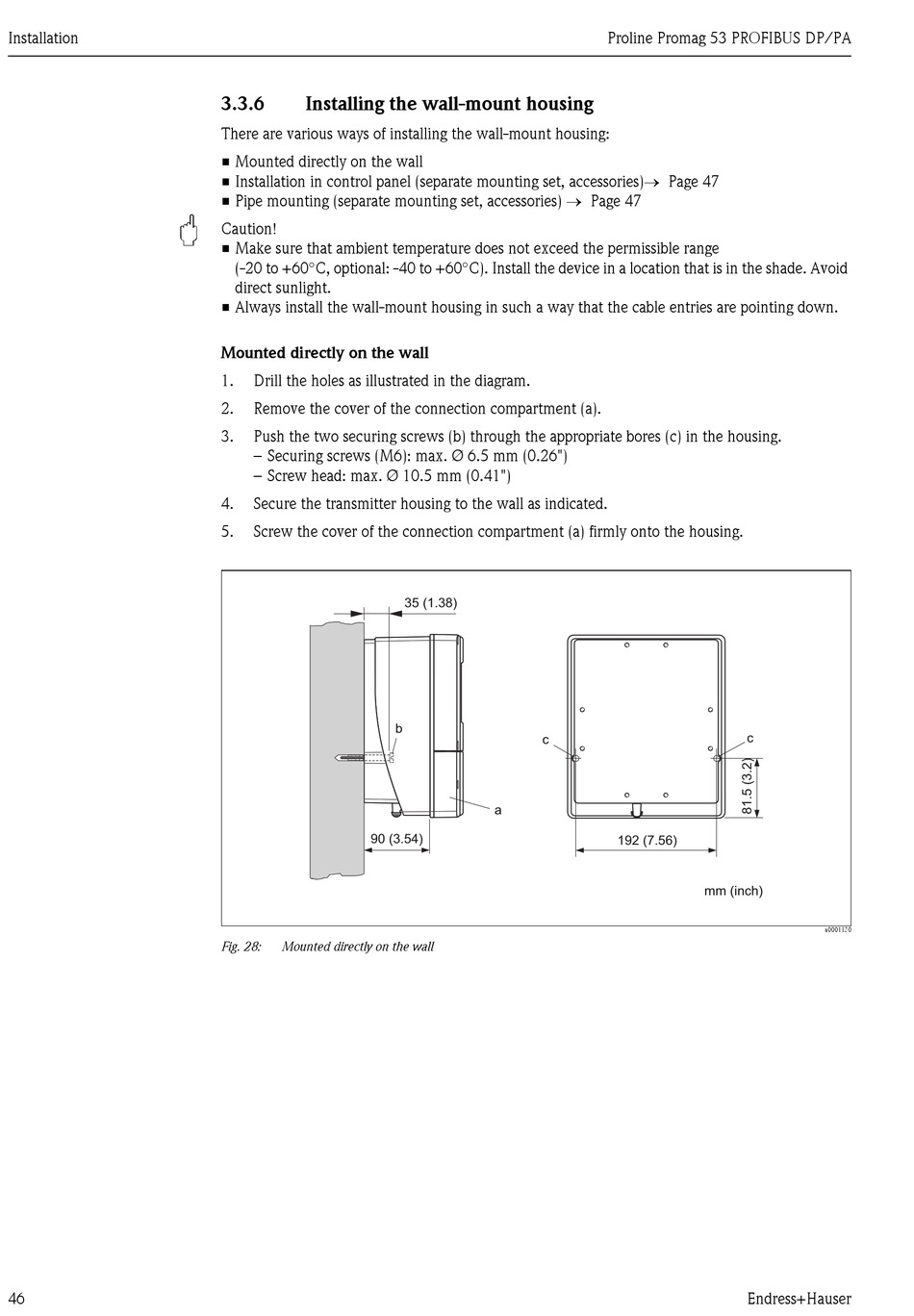

Fig. 28: Mounted directly on the wall
35 (1.38)
b
c
a
Proline Promag 53 PROFIBUS DP/PA
c
192 (7.56)
mm (inch)
Endress+Hauser
a0001130
