Getting Started Chapter 3

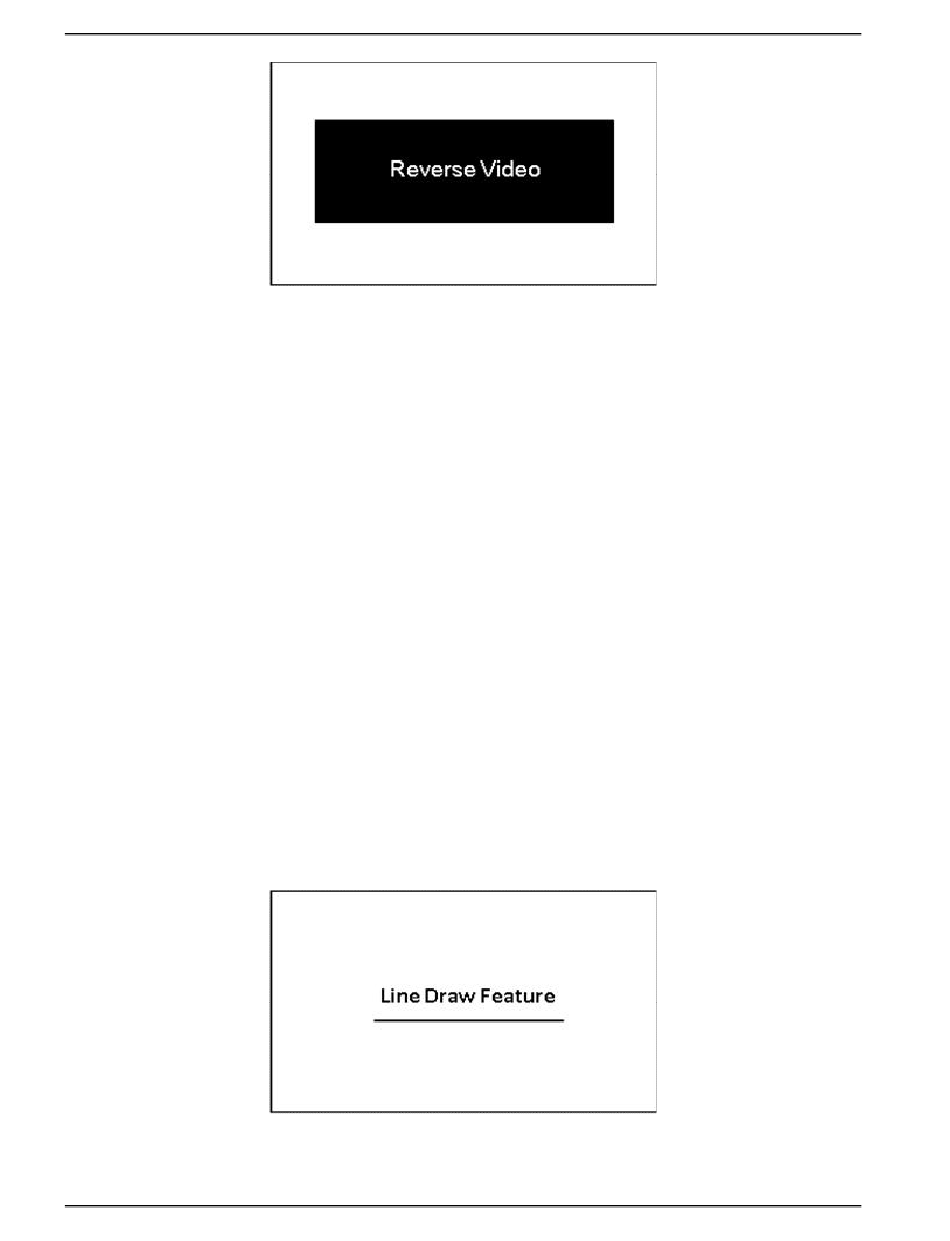

Figure 14 Line Draw Reverse Video

3.2 Line Draw

The line draw feature is selected by entering "@line" into the CI parameter of the "^Fn)"
Format Entry command. The line draw feature easily creates lines by using the XB and YB
coordinates as an insertion point for the line to start. Adjusting the SW and SH parameters
determines the width and the height of the line with respect to the rotation or orientation of
the FO field.
Line Draw Example:
^A)
^D200) 3.3, 1.9, 0.125, 1.063, 5, 1
^F1) 1.0, 1.0,@line, 1.11, 0.01
^F1) 1.0, 1.0,@normal_14
^T1)Line Draw Feature
^D300)1
^Z)
This would cause a line to be inserted an inch from the left side and an inch from the
bottom. The line would be 0.01" in height and would be 1.11" in width or length. The "^Fn)"
field must reference a "^Tn)" field for proper operation. The line draw does not have to
reference its own specific Text Entry command (^T) so it could reference an existing Text
Entry field in the script file as demonstrated in the above example.
Figure 15 Line Draw Feature
3-2 LDS2 Programming Manual - 880019-0202
