Chapter 4
AN parameter is set to a value of "2", the character spacing will be fixed / non-proportional.
A setting of "3" will print both fixed/non-proportional character spacing and reversed text.
0 Proportional Character Spacing
1 Reverse Video
2 Fixed / Non-proportional Character Spacing
3 Fixed / Non-proportional Character Spacing and Reverse Video
8 Auto Reverse Video: Character cell = BLACK, Character = WHITE
4.7 Line Draw
It is possible to design lines into a label utilizing some of the elements of label format fields.
Specifically, a TCI value of "6" enables the line draw function. XB and XY provide a starting
position for a line draw. CMX and CMY provide length and thickness to a line. Other
elements not necessary to draw a line such as CC, CGN, FO, FJ, CS, and AN are ignored
by simply adding delimiters (commas) without values.
An example of two lines drawn on a label is shown in Figure 4-5. This 3 x 3" label was
designed for a printer with a 300 DPI print head.
^D57 <CR>
2,1280,900,19,38,7,0,1,385,0,0 <CR>
1,340,712,,6,,,,600,25,,,,,0 <CR>
1,286,127,,6,,,,25,600,,,,,0 <CR>
^D56 <CR>
^D2 <CR>
Line <CR>
^D3 <CR>
This is a list of the first label format field element mnemonics for the sample label in Figure
4-5:
TSN, XB, YB, CC, TCI, CGN, FO, FJ, CMX, CMY, CS, TSP, , , AN
1, 340, 712,
428LT Operator's Manual - 880040-0200

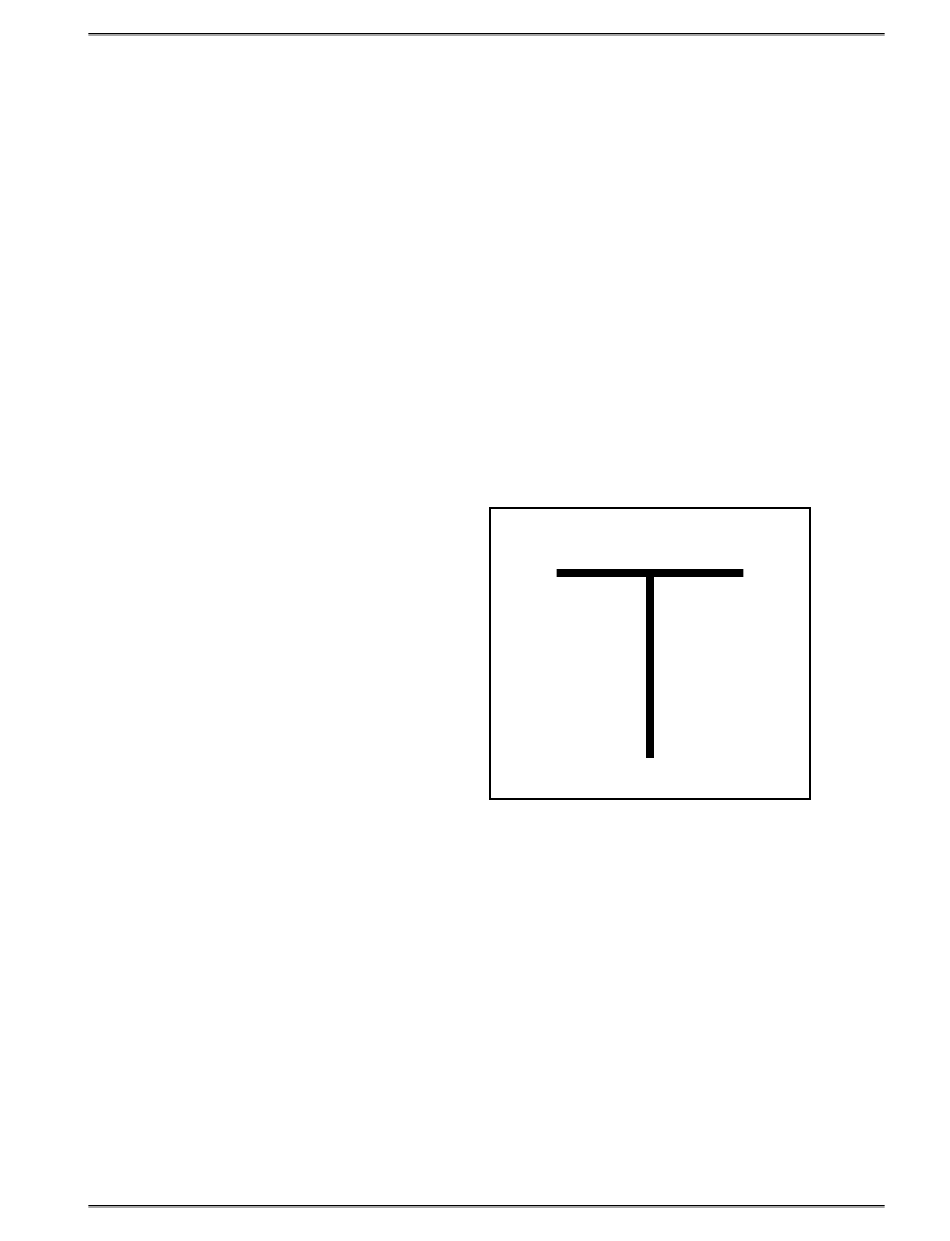

Figure 4-5 Line Draw Sample
, 6, , ,
Designing Labels with LDS
, 600, 25, , , , , 0
4-19
