Chapter 4
position for a line draw. CMX and CMY provide length and thickness to a line. Other
elements not necessary to draw a line such as CC, CGN, FO, FJ, CS, and AN are ignored
by simply adding delimiters (commas) without values.

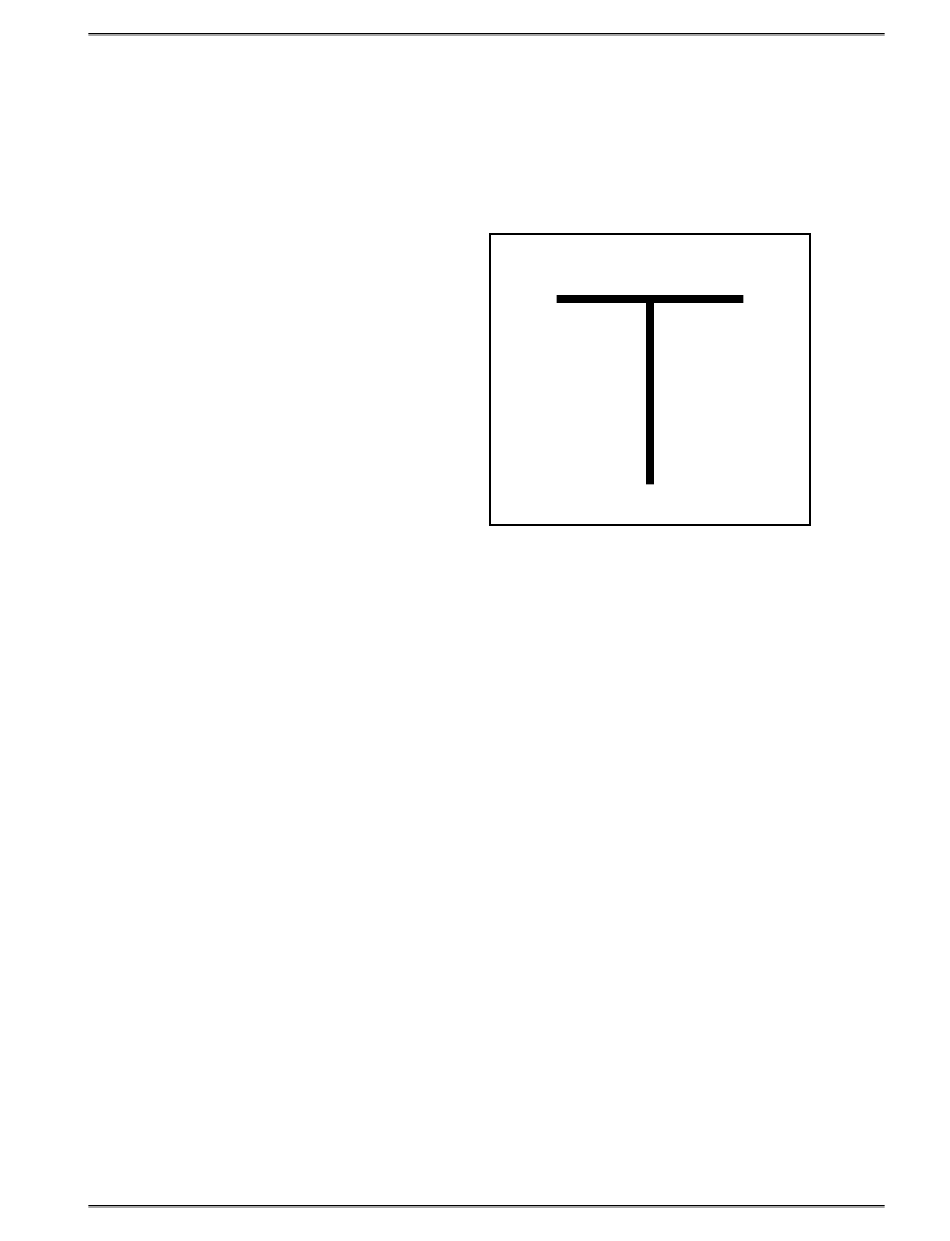

An example of two lines drawn on a label is shown in Figure 4-5. This 3 x 3" label was
designed for a printer with a 300 DPI print head.
^D57 <CR>
2,1280,900,19,38,7,0,1,395,0,0 <CR>
1,340,712,,6,,,,600,25,,,,,0 <CR>
1,286,127,,6,,,,25,600,,,,,0 <CR>
^D56 <CR>
^D2 <CR>
Line <CR>
^D3 <CR>
This is a list of the first label format field element mnemonics for the sample label in Figure
4-5:
438TM Operator's Manual - 880049-0113
Figure 4-5 Line Draw Sample
Designing Labels with LDS
4-19
