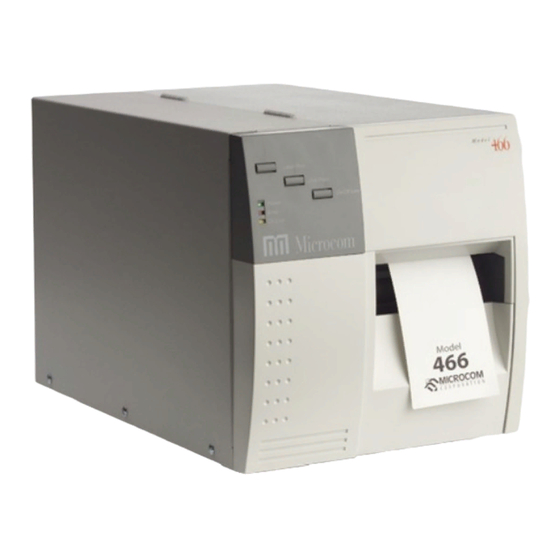

Microcom 466 Operator's Manual

Thermal transfer printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL 466
THERMAL TRANSFER PRINTER
OPERATOR'S MANUAL
Part Number 880015-0213
- Revised: March 21, 2001 MSG -
Centronics is a registered trademark of Data Computer Corporation.
HP and LaserJet are trademarks of Hewlett-Packard Company.
Arial is a registered trademark of Agfa Monotype Corporation.
Swiss is a trademark of Bitstream Inc.
TrueType is a registered trademark of Apple Computer, Inc.
Microsoft, Windows, Windows NT, Windows 2000 are registered trademarks of Microsoft Corporation.
HyperTerminal is a registered trademark of Hilgrave Inc.
Other product and company names mentioned herein may be the trademarks of their respective owners.
This manual is subject to change without notice.
Copyright © 1995-2001 Microcom Corporation, Lewis Center, Ohio - All rights reserved.
Printed in the U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 466 and is the answer not in the manual?

Questions and answers

Related Manuals for Microcom 466

Summary of Contents for Microcom 466

  • Page 1 HyperTerminal is a registered trademark of Hilgrave Inc. Other product and company names mentioned herein may be the trademarks of their respective owners. This manual is subject to change without notice. Copyright © 1995-2001 Microcom Corporation, Lewis Center, Ohio - All rights reserved. Printed in the U.S.A.

  • Page 3: Table Of Contents

    UNPACKING THE 466 PRINTER ........7...
  • Page 4 Index ..............91 466 Operators Manual...
  • Page 5 Microcom Label ........
  • Page 6 466 Operators Manual...

  • Page 7: Introduction

    0,90,180,270 degree rotations. Once the labels are designed, they can be stored in the printer for high speed access. The 466 is capable of printing on most types of label or fax stock. It offers operation in a tag/tear, peel-and-dispense, or cut-off mode. It can handle blow-hole, black-line, label gap, and continuous stock.
  • Page 8 466 Operators Manual...

  • Page 9: Chapter 1: Features And Specifications

    CHAPTER 1: FEATURES AND SPECIFICATIONS The Model 466 Direct Thermal / Thermal Transfer printer is designed with many standard features that are unique when compared to other printers. The 466 is built to meet the demands of complicated applications and rigorous use.

  • Page 10: Fonts

    Parallel (optional): 25-pin female (also includes additional serial port) PHYSICAL Rigid painted steel construction Height: 12" (304.8mm) Width: 11" (279.4mm) Depth: 18" (457.2mm) Weight: 40 LBS (18.14Kg) ENVIRONMENT " " Temperature: 0 C to 40 C operating Humidity: 10-85% non-condensing 466 Operators Manual...

  • Page 11: Electrical

    PCX/BMP to printer graphics conversion PC software TTF/SFP to printer font conversion PC software Battery backed RAM Additional RAM up to 2MB 1.10 PRINTER VARIATIONS 230V European power supply 1.11 APPROVALS CUL (UL and CSA), CE, Complies with FCC class A 466 Operators Manual...

  • Page 12: Front View

    Features and Specifications Chapter 1 466 Printer Front View Figure 1 466 Printer Rear View Figure 2 466 Operators Manual...

  • Page 13: Chapter 2: Basic Operation

    CHAPTER 2: BASIC OPERATION UNPACKING THE 466 PRINTER While unpacking the printer, please check all packing materials closely to avoid misplacing any necessary parts. After the printer is removed from the box, verify that all parts are present and in good condition (see Figure 3). All packaging material should be kept and used if the printer is to be shipped.

  • Page 14: Paper-Out Mode

    Soft Switch Bank 1: 10000001 Second Proc. Rev: 2.13 Soft Switch Bank 2: 01010001 RAM Checksum: Enabled Soft Switch Bank 3: 00000000 466 REV 2.13 070171-0213 07/11/00 Soft Switch Bank 4: 00000000 Soft Switch Bank 5: 10001011 Soft Switch Bank 6: 00000000 Status Label Figure 4 2.3.3...

  • Page 15: The Status Lights And Sounds

    Table 1 LOADING PAPER The 466 can dispense labels in a many different ways. The following two sections explain the dispensing modes. If narrow stock is used (3.5 inches wide or less), it may be necessary to adjust the print head support screw (see section 2.6).

  • Page 16: Normal And Tag/Tear Modes

    If the print quality on the right side of the label appears weak, then lower the print head by turning the screw counter clockwise until the print quality is corrected. If the quality problem appears on the left side, turn the screw clockwise until the print quality is corrected. 466 Operators Manual...

  • Page 17: Cleaning Instructions

    A Microcom cleaning kit (part #040005-0000) should be used for cleaning and maintaining a Microcom printer product. It is important to note that the optimum print head life is achieved by maintaining a clean printer and print head.
  • Page 18 Basic Operation Chapter 2 466 Operators Manual...

  • Page 19: Chapter 3: Communications

    If serial RS-232 communication is selected and XON/XOFF hand shaking is used, the only signals the 466 requires are the RXD, TXD, and GND signals. If hardware (CTS/RTS) hand shaking is used, a RTS signal is provided. XON/XOFF may be disabled through software dip switch #1 (see Section 5.3.1).

  • Page 20: Printer Cables

    Corporation. You will not need a NULL-modem cable because the printer is DCE equipment. For parallel connection, use a standard 25 pin to 36 pin Centronics printer cable, connected from the desired parallel port of the host computer to the 36 pin connector on the optional 466 parallel board.

  • Page 21: Chapter 4: Designing Labels Using Lds

    GETTING STARTED There are many different machines that can send information to the 466 printer: For example - main frames, mini-computers, special purpose computers and PC's. However, if you are using the printer for the first time, the easiest way to start is with a PC and a terminal emulation software program.

  • Page 22: Pc Connection (Parallel)

    DOS copy command, first use the DOS mode instruction to configure the PC. For example, MODE COM1:9600,N,8,1,P). There are some special features offered by the 466 printer that will aid in label design. For example, the auto-size command (^A2^D39?) will provide most of the header format information needed to define the different properties of label stock.

  • Page 23: Formatting Labels: An Overview

    The next three lines are data for each field. Text string #4 is accessed twice. The format will print '01234567890' and then the bar code equivalent. The sequence ^D3? starts the print cycle. (Default is one copy. See section 5.3.2) 466 Operators Manual...

  • Page 24: Microcom Label

    Designing Labels Using LDS Chapter 4 Microcom Label Figure 8 466 Operators Manual...

  • Page 25: Label Header

    The value of measurement for many of the header elements is the dot. There are 203 dots per inch on a 466 print head (8 dots/mm). There is a maximum 832 dots in the X direction (width). The Y direction (length) is virtually unlimited.
  • Page 26 DPS parameters can be inserted into the label header. Note that a higher value slows the printer down and a smaller value speeds it up. See Table 3 for a list of print speeds, DPS values, and inches per second. 466 Operators Manual...
  • Page 27 149.9 147.3 144.8 142.2 139.7 137.2 134.6 132.1 129.5 127.0 124.5 121.9 119.4 116.8 114.3 111.8 109.2 106.7 104.1 101.6 99.1 96.5 94.0 91.4 88.9 86.4 83.8 81.3 78.7 76.2 73.7 71.7 68.6 66.0 63.5 Table 3 466 Operators Manual...
  • Page 28 The 466 uses the following formula to determine the SPG setting: If label height is greater than or equal to 490 then SPG=490 If label height is less than 490, subtract (LSY+GAP) from 490 until the answer is negative, then add (LSY+GAP) back to become positive again.

  • Page 29: A Sample Session (Header)

    0 in their cases. Likewise, since the AGD and SPG were defaulted, the carriage return could have followed the DPS. Note: Defaulted fields must be separated by commas and ending commas may be omitted. 466 Operators Manual...

  • Page 30: Label Fields

    For example, the text string - MICROCOM - would be 8 characters long. This parameter should be set to a value of 1 if the field is a graphic image.
  • Page 31 * Refer to Section 7.1.1 on how to use these TCI's. Example: For the string - 1234567 A TCI of 1 would normally be used when printing regular text . A TCI of 42 would print a Codabar bar code. 466 Operators Manual...

  • Page 32: Bitmapped Font Descriptions

    Swiss™ 721 Bold 10pt ABCDEFG1234567890abcdefg Swiss™ 721 Normal 12pt ABCDEF123456789abcdef Swiss™ 721 Normal 14pt ABCDE1234567abcde Swiss™ 721 Normal 18pt ABCDE1234567 Swiss™ 721 Normal ABCDEFG1234567890abcdefghij OCR-A OCR-B ABCDEFG1234567890abcdefghijklmn Note: The Swiss™ 721 typeface is similar to Arial™ . Table 4 466 Operators Manual...

  • Page 33: Bar Code Symbologies

    This parameter defines the rotation of each field on the label. The point of rotation is determined from the field justification. 0 degrees (normal rotation). 180 degrees (upside-down rotation). 90 degrees (left rotation). 270 degrees (right rotation). 466 Operators Manual...

  • Page 34: Character Starting Positions

    (0-255) add dots and (256-512) subtract dots. For example, a value of 4 inserts 4 dots between characters and a value of 259 would subtract 4 dots between characters. Bar codes have default spacing according to the indicated multiplier. Multiplying a text 466 Operators Manual...

  • Page 35: Lines

    Y coordinate increases in size from the bottom to the top of the label (see Figure 9). A YB of 203 would place the line one inch from the bottom of the label. The valid range is 1 to 65536. 466 Operators Manual...

  • Page 36: Lines

    Therefore, to produce a reversed image, the line field MUST be printed AFTER the image field.) MAKING LINES Program sample: Lines ^D57? 1,50,500,,6,,,,150,10? 1,100,50,,6,,,,10,500? 1,250,50,,6,,,,10,500? 1,250,250,,6,,,,150,10? ^D56? ^D2? ^D3? Lines Figure 10 466 Operators Manual...

  • Page 37: A Sample Session (Fields)

    ... and referring to Field #1. 1,190,1068,8,1,8,,,2,2? 1 - Field refers to text string #1 - Microcom. This field could have referred to Corporation, if it had a TSN of 2. The fields do not have to be in any kind of order with respect to the data fields.
  • Page 38 Designing Labels Using LDS Chapter 4 466 Operators Manual...

  • Page 39: Chapter 5: Printer Commands

    CHAPTER 5: PRINTER COMMANDS The 466 printer has a large and versatile collection of control codes to meet the special needs of labeling applications. Most of the commands use a ^D control sequence, however the printer also recognizes a selected number of other control sequences.

  • Page 40: Printer Status Messages

    XOFF: Instructs the printer to stop sending data. PRINTER STATUS MESSAGES The 466 printer is capable of returning three different types of status messages depending on how the machine is configured (see software dip switch #1, ^D21, section 5.3). The text equivalent setting returns a descriptive word or phrase.

  • Page 41: Software Switches And Non-Volatile Commands

    The following commands are loaded on power-up. Although they can be set, they will not be used until the printer has been restarted. The printer will not use these settings until this is done. 466 Operators Manual...
  • Page 42 COM1. Please refer to the ^D5 command for more information about status messages. XON/XOFF (COM1): Enable or disable XON/XOFF software handshaking. CTS/RTS hardware handshaking is always enabled. 466 Operators Manual...
  • Page 43 0. (Please note: The printer will not print unless a valid format has been loaded. A format may be loaded by using these switches to automatically load a previously stored format or by simply sending non-stored format to the printer.) 466 Operators Manual...
  • Page 44 ^D91 value using the optional reflective sensor. Detect Black Line at Power-up: If this switch is enabled, the printer will automatically run a few labels and correctly set the ^D91 value using the transmissive sensor. 466 Operators Manual...
  • Page 45 The printer then uses these header values for all subsequent label formats. See the ^D39 command in section 5.3 for more information on auto-sizing. Code Page Selection Code Page Selection Code Page Selection Code Page Selection 466 Operators Manual...
  • Page 46 Echo (COM2): If this feature is enabled, the printer will echo all received characters to the serial port. Data Bits (COM2): Choose 7 or 8 bit data. XON/XOFF (COM2): Enable or disable XON/XOFF software handshaking. CTS/RTS hardware handshaking is always enabled. 466 Operators Manual...
  • Page 47 Button will no longer function. COMMAND Adjust Contrast Base: This command is used to adjust print contrast base. This command is stored in the EEPROM and skews the entire contrast window (^D35). This command has a range of 10 to 200%. 466 Operators Manual...

  • Page 48: Printing Commands

    (^D73). The batch of labels will be printed when a ^D3 is executed. Therefore, this command must precede a ^D3 command. See section 5.3 for more information. Example usage: ^A20^D74^D3? - This example will regenerate and print 20 labels. 466 Operators Manual...

  • Page 49: Auto-Sizing And Valid Gap Commands

    To auto-size blow-hole stock, set software dip switch 4 for blow-hole stock (see section 5.3.1) and then auto-size. There is also a power-up auto-size feature as defined in section 5.3.3, ^D24. 466 Operators Manual...
  • Page 50 This command is stored in non-volatile memory and is therefore loaded whenever the printer is powered on. The factory default value is 92. 466 Operators Manual...

  • Page 51: Real-Time Clock

    ...where xxx is the day of the week. These values should be inserted into the Field parameters for proper clock text access: Clock Field Parameters TEXT HH:MM:SS MM/DD/YY Day of Week DD/MM/YY Day of Week Table 8 466 Operators Manual...

  • Page 52: European Date Format

    EUROPEAN DATE FORMAT? ^D3? European Date Format Figure 11 ^D57? 0,410,100,12,16,2,,4,2,60,2,10? 0,410,25,12,1,5,,4,,,,10? 1,410,200,20,1,5,,4? ^D56? ^D2? US DATE FORMAT? ^D3? US Date Format Figure 12 ^D57? 0,410,25,34,1,5,,4? 1,410,100,22,1,5,,4? ^D56? ^D2? UNMODIFIED DATE STRING? ^D3? Unmodified Date Format Figure 13 466 Operators Manual...

  • Page 53: Serial Number Commands

    The following commands, ^D80 through ^D89, refer to the serial number function of the 466 printer. The 466 can increment or decrement any single serial number on the label by any amount. However, if there is more than one serial number on the label, then all serial number fields can only increment or decrement by one.
  • Page 54 A sample program using the single serial number feature: ^D57? 1,416,25,2,1,6? ^D56? ^A2^D86? ^A1^D84? ^A5^D85? ^A3^D75? ^D2? ^D3? A sample program using the multiple serial number feature: ^D57? 1,400,25,4,1,6? 2,100,75,4,1,6? 3,100,125,4,1,6? ^D56? ^A2^D88? ^A1^D88? ^A3^D89? ^A3^D75? ^D2? 100? 200? 300? ^D3? 466 Operators Manual...

  • Page 55: Saving Format Commands

    #1 and includes all variable data for the format. File #2 also prints the label. File #3 shows how a second saved format would look if the entire format was in one file. NOTE: <ESC> = 1B hex or ^[ 466 Operators Manual...
  • Page 56 4,120, 40,70,1,10? ^D56? ;End label definition ^D2? ;Start text entry mode MICROCOM CORPORATION? 8220 GREEN MEADOWS DR., N.? LEWIS CENTER, OH 43035? (740) 548-6262? <ESC> ;End save The above file would be selected by sending an ^A2^D58?. 466 Operators Manual...

  • Page 57: Label Present Sensor Control

    ^D95 command. (See section 2.5.2 for Peel-and-Dispense loading instructions.) Turn off peel and dispense mode with ^D98. Turn on peel and dispense mode. (Custom Applicator Mode - peel and dispense without delay.) 466 Operators Manual...

  • Page 58: Text Strings Commands

    The printer can be programmed to enter this mode automatically upon power-up by setting position 7 of software dip switch 2 (See ^D21, section 5.3.1). Enable 1 & 2. Command 466 Operators Manual...
  • Page 59 ;data line 09 AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA? ;data line 10 ^A3^D63? ;enable auto print and clear text ^A5^D64? ;tell printer to print after 6 (CR) ^A6^D61? ;tell printer to start new data entry at data line 6 instead of 1 466 Operators Manual...
  • Page 60 Printer Commands Chapter 5 466 Operators Manual...

  • Page 61: Chapter 6: Downloadable Graphic Images

    CHAPTER 6: DOWNLOADABLE GRAPHIC IMAGES The 466 printer has 255 slots available for storing fonts or graphics. Existing graphic images can be converted to the proper format using either the "PCX2MIC.EXE" or “ BMP2MIC.EXE” software utilities. The graphic image format sections are provided to support developers that wish to create 466 graphic files from within their own applications.
  • Page 62 <rotation> <count> <image data> Where: <slot number> is a slot number, 1 through 255 (in ASCII). Note: The 466 uses the same TCI for fonts and graphics. They are both accessed by using a TCI of 8. Therefore a font and a graphic cannot have the same CGN number.

  • Page 63: Uncompressed Image Command (^D106)

    <rotation> <count> <image data> Where: <slot number> is a slot number, 1 through 255 (in ASCII). Note: The 466 uses the same TCI for fonts and graphics. They are both accessed by using a TCI of 8. Therefore a font and a graphic cannot have the same CGN number.

  • Page 64: Sample Graphic

    Downloadable Graphic Images Chapter 6 The 466 font structure consists of commands, a header, a look-up table, a character descriptor, and character data. All words are in Intel format: low byte, high byte. The graphic image structure is the same as the font structure.

  • Page 65: Operators Manual

    Max Cell Height for the font. Top Offset and Bottom Offset are used to vertically position any character in the field. 2.) The fields Char Height through Top Row of Image are repeated as needed for each character in the font. 466 Operators Manual...

  • Page 66: Downloadable Graphics Command Summary

    List Memory Bytes Available: The printer will send a < character followed by the amount of bytes and finally a > character. (ie. >699842<) Load Graphic Image or Font into User Memory: ^A select which slot to place the image/font in (1-255). 466 Operators Manual...

  • Page 67: Chapter 7: Downloadable Fonts

    "JET2466.EXE" is available on request. This DOS utility converts fonts from the popular .SFP format in to a format suitable for downloading to the 466 printer. Note: The 466 treats fonts and graphics the same. Please refer to Chapter 6 for the font/graphic structure.
  • Page 68 Downloadable Graphic Images Chapter 6 466 Operators Manual...

  • Page 69: Chapter 8: Bar Codes

    The UPC-A bar code is primarily used in the supermarket industry. It contains 11 numeric data characters and a single numeric check digit. The 466 must be provided 11 digits in order to print a scanable bar code. The first 6 digits are supplied by the UCC council and are the Manufacture's ID number.
  • Page 70 "#01" specifies Control-A (ASCII SOH) and "#1D" specifies Control-] (ASCII GS). In order to specify an actual pound symbol in the string, use "##". The following table shows all the "#" equivalents that may be used. 466 Operators Manual...

  • Page 71: Control Code Equivalents For Use In Data Strings

    Mode 2: Mode 2 may have either of the following formats: [)>#1e01#1dYYPPPPPPPPP#1dCCC#1dSSS#1dA..A#1dB..B#1dC..C#1e#04 Where: #1e is the ASCII RS character #1d is the ASCII GS character #04 is the ASCII EOT character YY is the two-digit numeric year 466 Operators Manual...
  • Page 72 (A, B, and C) and separate shift characters to access them in the same bar code. Subset C contains 99 matched numeric pairs, each encoded as a single character. The pairing of numeric characters allows numeric portions of the bar code to 466 Operators Manual...

  • Page 73: Code 128 Special Function Access

    AS-10, TCI=44 AS-10 is not widely used. It is variable length and encodes the numeric values 1234567890 only. PDF-417, TCI=46 PDF-417 is a two dimensional bar code. Enter the following command before the label format: :Text^[ number_of_rows<CR> 466 Operators Manual...
  • Page 74 3 alphanumeric characters Content Format SSCC-18 n2+n18 SCC-14 n2+n14 Batch or Lot Number n2+an..20 11(*) Production Date (YYMMDD) n2+n6 13(*) Packaging Date (YYMMDD) n2+n6 15(*) Sell By Date (Quality) (YYMMDD) n2+n6 17(*) Expiration Date (Safety) (YYMMDD) n2+n6 466 Operators Manual...
  • Page 75 352(***) Area, Square Yards n4+n6 353(***) Area, Square Inches, Logistics n4+n6 354(***) Area, Square Feet, Logistics n4+n6 355(***) Area, Square Yards, Logistics n4+n6 356(***) Net Weight, Troy Ounce n4+n6 360(***) Volume, Quarts n4+n6 361(***) Volume, Gallons n4+n6 466 Operators Manual...

  • Page 76: Ucc/Ean Application Identifiers

    Any variable length subfield (unless it is the last subfield in a field) must be terminated by the characters "#6" (without quotes). These characters are translated to the Code 128 "FNC1" 466 Operators Manual...

  • Page 77: Designing With Bar Codes

    If the bar code is in a ladder (or vertical) orientation (90 and 270 degrees), multiply CMY for width, and CMX for bar code length. It may be necessary to slightly adjust the contrast window and/or adjust the print speed due to the "bleeding" effect caused by heat build up in the print head. 466 Operators Manual...

  • Page 78: Bar Code Rotations

    Program sample: Bar codes in four rotations (See Figure 11) ^D57? 9,814,609? 1,410,30,11,1,4,,4? 2,410,100,11,1,2,,4? 2,410,137,3,16,2,,4,3,40? 3,680,300,11,1,2,3,4? 3,640,300,3,16,2,3,4,40,3? 4,410,500,11,1,2,1,4? 4,410,465,3,16,2,1,4,3,40? 5,140,300,11,1,2,2,4? 5,180,300,3,16,2,2,4,40,3? ^D56? ^D2? ROTATIONS? 000 DEGREES? 090 DEGREES? 180 DEGREES? 270 DEGREES? ^D3? Bar Code Rotations Figure 15 466 Operators Manual...

  • Page 79: Bar Code Human Readables

    2,375,20,19,1,1? 3,350,37,11,33,,,,2,2? 3,372,55,11,12,,,,2,60? 4,80,150,19,1,1? 4,65,167,12,20,,,,2,60,,8? 5,408,150,14,1,1? 5,395,167,7,21,,,,2,60,,7 6,110,270,5,1,1? 6,120,287,12,13,,,,2,60,,8? 9,180,270,8,3,1? 7,400,270,5,1,1? 7,470,287,12,13,,,,2,60,,8? Bar Code Human Readables 8,460,270,8,3,1? Figure 17 ^D56^D2? UPC-A HR W/CHKSUM? UPC-A HR W/O CHKSUM? 01234567890? EAN13 012345678901? EAN8 0123456? UPC-E 00123400005? UPC-E 10123400005? ^D3? 466 Operators Manual...
  • Page 80 Bar Codes Chapter 8 466 Operators Manual...

  • Page 81: Chapter 9: Special Effects

    REVERSED PRINT (WHITE TEXT OVER BLACK) The 466 has the ability to print white text on a user definable black background. Reversed text can be produced by manually placing a black box on top of an existing image by using the line command and setting the line and text field ANs (attribute numbers) to a value of 1.
  • Page 82 Special Effects Chapter 9 466 Operators Manual...

  • Page 83: Chapter 10: Options

    WYSIWYG Software packages offer a WYSIWYG (What You See Is What You Get) label design environment. 10.4 CLEANING KIT An approved cleaning kit is offered for the 466 printer. It is suggested the printer be cleaned once every two weeks, every 5,000 labels, or whenever label stock is replaced. 10.5 WINDOWS™ DRIVER Windows™...

  • Page 84: Appendix A: Warranty And Repair Procedures

    The stated warranties and remedies are in lieu of all other warranties, obligations or liabilities on the part of Microcom Corporation for any damages, including, but not limited to, special, indirect, or consequential damages arising out of or in conjunction with the sale, use, or performance of the products.
  • Page 85 3. Return the defective item(s) for repair to the above listed address, freight and insurance prepaid. 4. Upon receipt of an RMA number, the customer contact will be notified by a Microcom Corporation representative regarding repair charges, at which time the ship method will be determined.

  • Page 86: Appendix B: Quick Reference Command Summary

    0,,, 0 The following is a list of FONT, BAR CODE, AND GRAPHIC IMAGE field mnemonics: TSN,XB,YB,CC,TCI,CGN,FO,FJ,CMX,CMY,CS,TSP,,,,,AN The following is a list of SQUARE LINE field mnemonics and the default values: 1,XB,YB,,6,,,,XS,YS,,,,,,,AN 1, 1, 1,,6,,,, 1, 1,,,,,,, 0 466 Operators Manual...
  • Page 87 40 Code 128 Bar Code (Automatic Compression) 41 Code 128 Bar Code (Manual Compression) 42 Codabar Bar Code 43 Code 93 Bar Code 44 AS-10 Bar Code 46 PDF417 Bar Code 50 UCC/EAN-128 Bar Code 51 Text with UCC/EAN-128 Information 466 Operators Manual...
  • Page 88 ****.)))) 1=Send Status Message on Error (COM2) ***.))))) Always 0 **.)))))) 1=Ignore Control Codes, 0=Accept (COM1,COM2 and LPT1) *.)))))))))), .)))))))))),* Status Message Format (COM1 and COM2) 00 = Control Codes 10 = Text Equivalent 11 = ^ Equivalent 466 Operators Manual...
  • Page 89 ******.) Detect Black Line on Power-up (reflective) *****.)) 1=Enable TOF button, 0=Disable ****.))) 1=Enable TOF at Power-up, 0=Disable ***.)))) Always 0 **.))))) 1=Status after Print (COM1 & 2), 0=No Response *.)))))) 1=Disable Extended ASCII, 0=Enable (COM2) .))))))) 1=Disable Extended ASCII, 0=Enable (COM1) 466 Operators Manual...
  • Page 90 *****.))) 1=Echo Enable, 0=Disable (COM2) ****.)))) 1=No Parity, 0=Enable Parity (COM2) ***.))))) 1=Odd Parity, 0=Even Parity (COM2) **.)))))) 1=Ignore Control Codes, 0=Accept (COM2) *.)))))))))), .)))))))))),* Status Message Format (COM2) 00 = Control Codes 10 = Text Equivalent 11 = ^ Equivalent 466 Operators Manual...
  • Page 91 Automatically sizes the label and displays on the screen the values for the size variables. Same as ^A2^D39, but prints the values on a label, instead of on the screen. Move media to “ Top of Form” position 466 Operators Manual...
  • Page 92 Clears command 61 Mark Text Starting Position: ^A designates which text field to start entering new data. Section 5.3.8. Pre-padded Text: This command is sent after text that is to appear at the beginning of each field is sent. 466 Operators Manual...
  • Page 93 Enable increment. The serial number will be increased by the value from ^D85. Enable Decrement. The serial number will be decreased by the value from ^D85. Load Field Number to Clear Increment/Decrement status: Clear the status of one or more serial numbers with this command. 466 Operators Manual...
  • Page 94 Clear User RAM: This command will clear all downloaded fonts, graphics, and stored label formats. See Section 5.3.8. Send User RAM Available: The printer will send the number of free bytes to the serial port (ie. >699842<). 466 Operators Manual...
  • Page 95 RAM. The RAM checksum is updated each time that a file is stored in user RAM. This command should be enabled if the printer is equipped with the battery backed RAM option. Disable RAM checksumming Enable RAM checksumming 466 Operators Manual...

  • Page 96: Appendix C: Hardware Dip Switches

    *****.)))0=No Parity, 1=Enable Parity (COM1) ****.))))0=Odd Parity, 1=Even Parity (COM1) ***.)))))0=8 Data Bits, 1=7 Data Bits (COM1) **.)))))))), *.)))))))),* .)))))))),** Bits per Second (COM1) 300 bps 600 bps 1200 bps 2400 bps 4800 bps 9600 bps 19200 bps 38400 bps 466 Operators Manual...

  • Page 97: Index

    Field Orientation 27, 28 Field Parameters 24, 31, 45, 71 Flow Control 4, 36 Form Feed 34, 42 Graphic Images 1, 55, 57, 60, 77 Human Readables 73 Justification 27, 28 Label Control Byte 22, 86 Label Fields 24, 86 466 Operators Manual...
  • Page 98 Text Strings Commands 52 Variable Text 37 VDD 34 Warranty 78, 79 XOFF 4, 13, 34, 36, 40, 82, 84 XON 4, 13, 34, 36, 40, 82, 84 Y Beginning Coordinate 24, 29 Y Direction Offset 23, 86 466 Operators Manual...
